Famous Brand Shantui SL50W Loader

Famous Brand Shantui SL50W Loader thumbnail-1
Famous Brand Shantui SL50W Loader photo-1
US$ 60,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SHANTUI
Model Number:
SL50W/SL50W-2/SL50W-3
Contact Supplier Request Quote Chat Now
Shantui Janeoo Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SHANTUI
Model Number SL50W/SL50W-2/SL50W-3
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 8054*3072*3410
Rated Load 5 T
Certification CE,GOST
Warranty 12 months
After-sales Service Provided Overseas service center available

Specifications

1. Srong struture
2. Excellent performance
3. Experienced dirve pars.
4. China top brand Shantui wheel loader

Shantui SL50W/SL50W-2/SL50W-3 Wheel Loader



ITEM UNIT SL50W SL50W-2 SL50W-3
Engine - Weichai WD10G220E23 Shangchai SC11GB220G281 Dongfeng Cummins 6CTA8.3-C215
Rated Power kw/rpm 162/2000 162/2200 160/2000
Displacement L 9.728 10.46 8.3
Min. Diesel comsumption g/kw•h 215 230 202
Max. Torque N•m 900 843 908
Operating Weight Kg 17000 17000 17000
Overall Dimensions(L*W*H) mm 8054*3072*3410 8054*3072*3410 8054*3072*3410
Center Distance of Tires mm 2250 2250 2250
Wheel Base mm 3250 3250 3250
Loading Capacity t 5 5 5
Bucket Capacity m3 3 3 3
Max. Traction Force kN 162 162 162
Max. Breakout Load kN 185 185 185
Static Tipping Load(Full Turn) kg 10000 10000 10000
Gradeability ° 30 30 30
Min. Turing Radius Outside of Bunket
mm		 6590 6590 6590
Outside of Tire 7258 7258 7258
Truing Angle ° 38 38 38
Dumping Height Standard Arm mm 3178 3178 3178
Attended 3350 3350 3350
Long 7258 7258 7258
Dumping Reach Standard Arm mm 1160 1160 1160
Attended 1110 1110 1110
Long 954 954 954
Lifting Time/Lifting, Dumping and Lowering s 5.4/10.9 5.4/10.69 5.4/10.9
Travel Speed Forward 1 km/h 0-13 or 0-8 0-8.54
Forward 2 0-38 or 0-15 0-10.5
Forward 3 (a/a) or 0-24 0-23.12
Forward 4 (a/a)  or 0-38 0-40.53
Reverse 1 0-17 pr 0-8 0-8.54
Reverse 2 (a/a) or 0-24 0-10.5
Reverse 3 - 0-23.12

 Product Features





1.Steyr engine featuring green envirenmental protection power, and high efficiency with low energy use, low noise and low enxhaust.







2.Shanchai C6121 engine with energy saving efficiency, excellent and reliable performance, low exhaust.







3.Advanced Z-Type reverse tipping mechanism with large breakout force and high efficiency.







4.Advanced dual pump(combined) tecknology to improve fuel savings and work efficiency.







5. Automatic bucket-leveling for easing the labor entensity of the dirver(Sl20W-2 comes with PPC controls).







6.Main Structure parts made of quality managanese steel for long-lasting and durable service life.







7.Heavier and longer wheelbase for better work stability.







8.Planetary power shift transmission and coaxial flow amplification type hydraulic steering system with easy and flexible operation and energy saving efficiency.







9.Articulated frame for small turning radius for more flexibility.







10.Advanced, tow sets of systems for parking and service brakes(air pushed oil disc brakes) for safter and more reliable operation.







11.A dust-proof design is used for the pins of working devices to improve service life.







12.A fully sealed glass cabin with a wide field of vision, combined with a good shock absorbing, super voyage grade seat to keep tenperatures controls based on the lastest ergonomic designs.







13.Optional equipment:Log grapple, grass grapple, coal bucket, high lift and more.

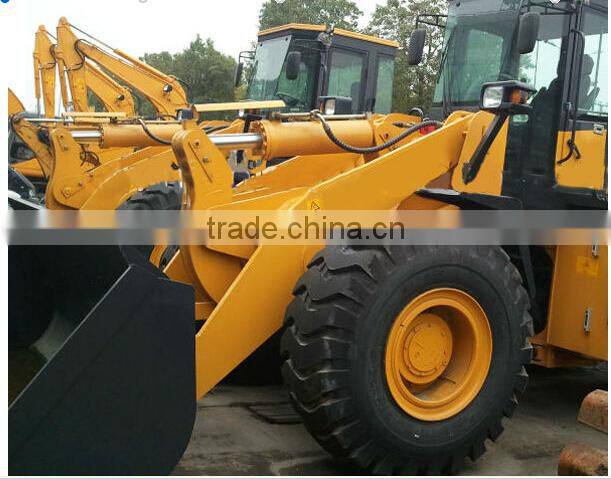

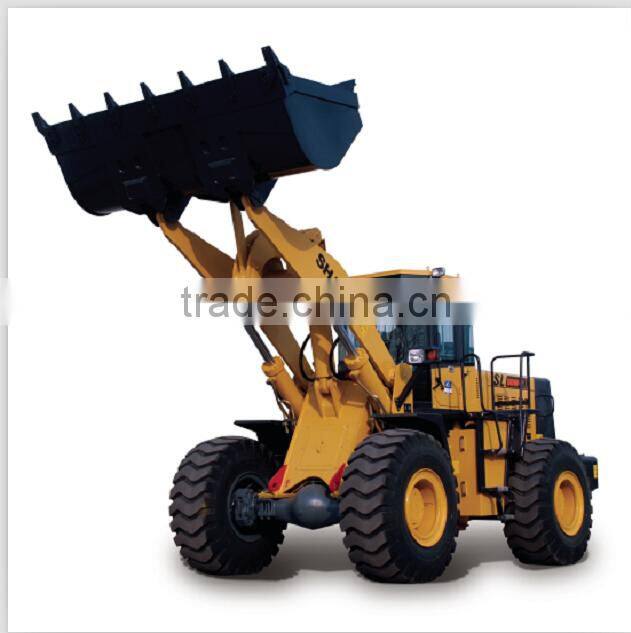

Famous brand Shantui SL50W LoaderFamous brand Shantui SL50W Loader







Packaging & Shipping



Packaging: Nude packing, shipped by the RO-RO or In Bulk;

Delivery Time:20 days after 30 % deposit by T/T.





Our Services



1. Reply your inquiry in 24 working hours;



2. Experienced staffs answer all your questions in fluent English;



3. Customer’s design is available for certain products(OEM);



4. Spare parts for all types of engine machinery with reasonable price;
