25m3 per hr FRP Calculation of Cooling Tower

Name: 25m3 per hr FRP Calculation of Cooling Tower
Brand: aosua
Availability: InStock

FOB Price

US$ 500 - 533 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Cooling Type	Counter Flow
Material	Other, FRP, FRP	Place of Origin	Zhejiang, China
Brand Name	aosua	Model Number	AB-25
Voltage	380/415v(discussing)	Power(W)	550
Dimension(LWH)	1400mmx1400mmx2250mm	Weight	155/335kg
Certification	ISO 9001	Warranty	One year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Parameter

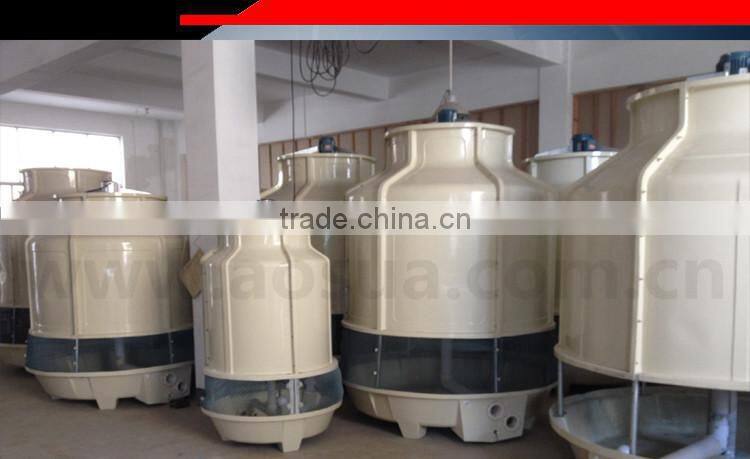

Product Show

Product Details

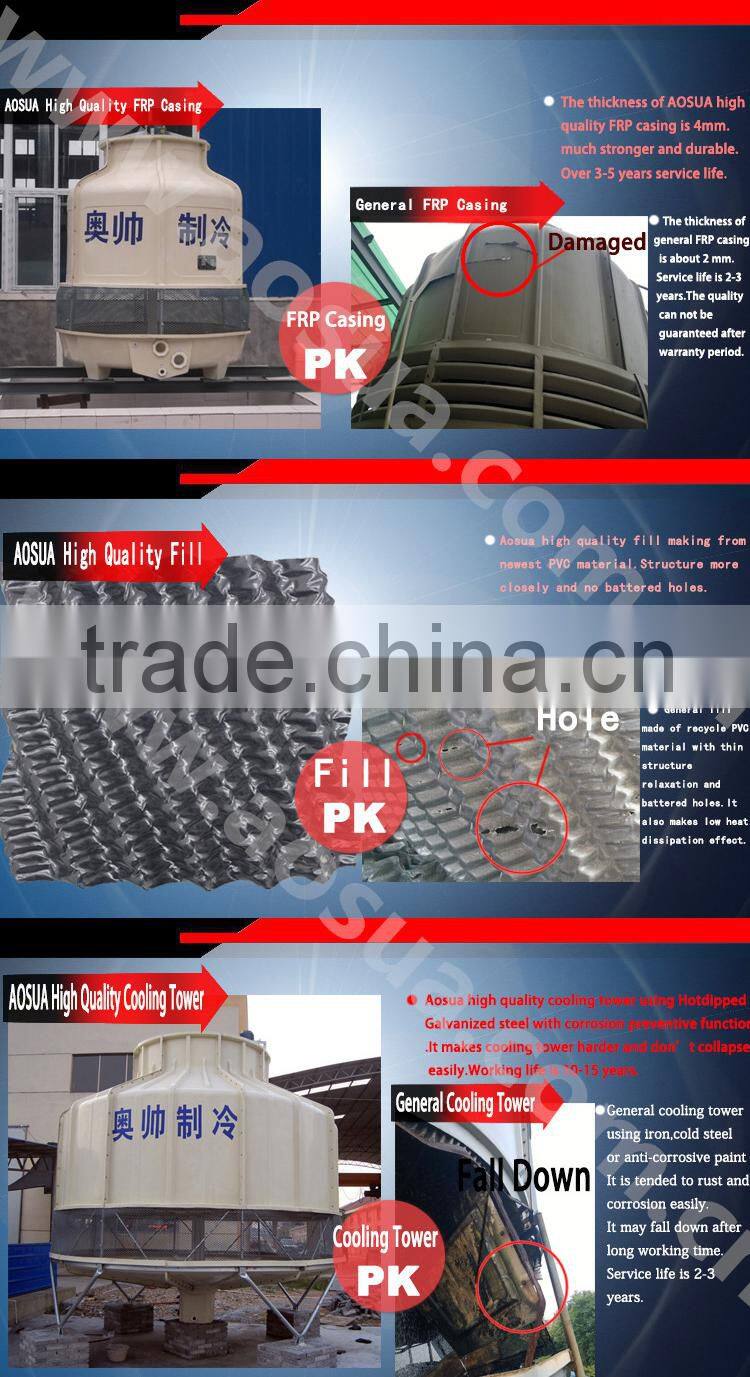

Product PK

Packaging & Shipping

Company Information

OUR FACTORY

Established:2009
Employees: 11 - 50 People
No. of R&D Staff : 11 - 20 People
No. of QC Staff: 5 - 10 People
Management Certification: ISO 9001:2008
Main Markets: North America South America Eastern Asia Western Europe
Factory Size (ters): 3,000-5,000 square meters

Our Services

1.Provide install video if necessary.

2.Quality guarantee is 12 months.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
4.Oversea technical guidance.
5.Provide foundation drawing.

FAQ

1)Q:Are you a factory or a trading company?

A:Cooling tower manufacturer with 50 works.

2)Q:What's your MOQ of this term?

A:1 SET.

3)Q:Where is your Loading port?

A:Ningbo and Shanghai port,China

4)Q:What's your company's available production capacity?

A:200 SETS per month.

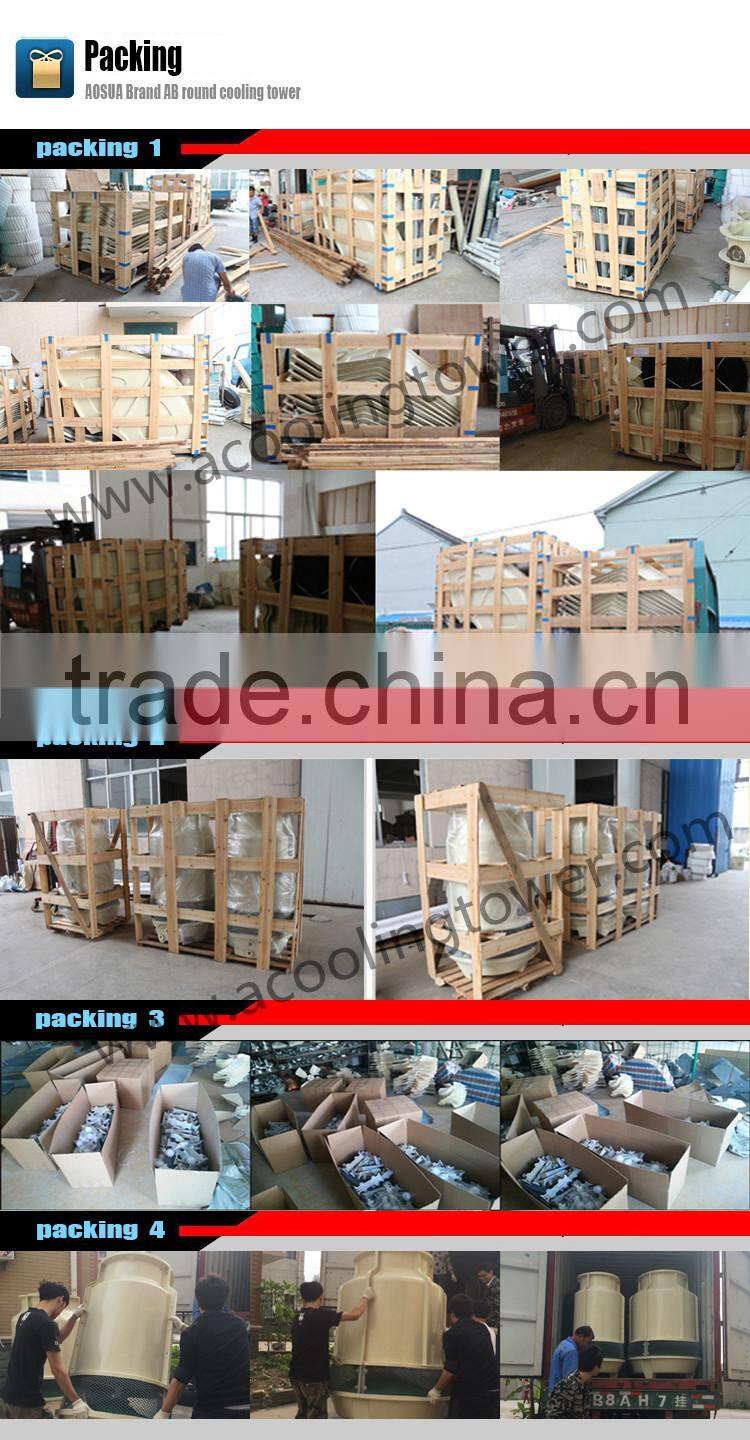

5)Q:How about the packing of this model?

A: Wooden packing, Plywood board packing, 20 feet container, 40 feet container

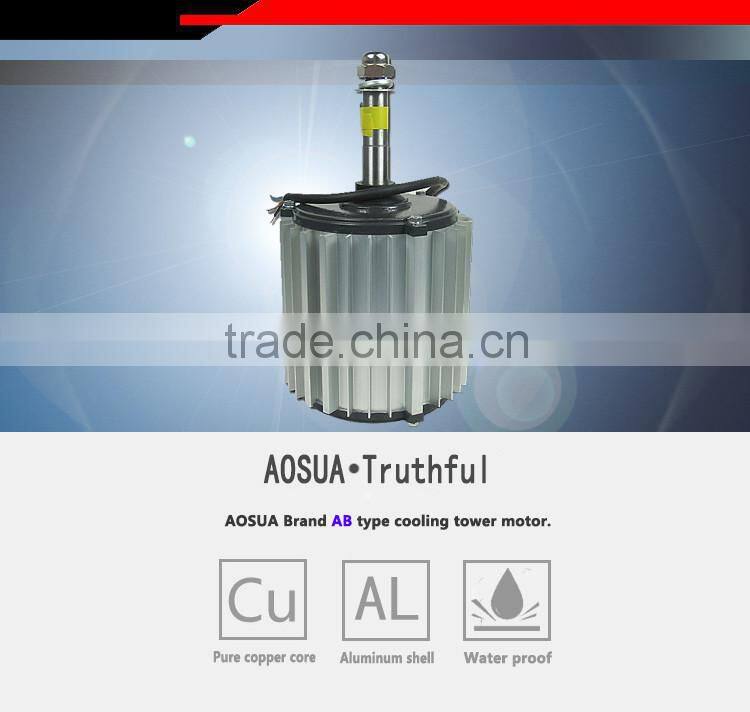

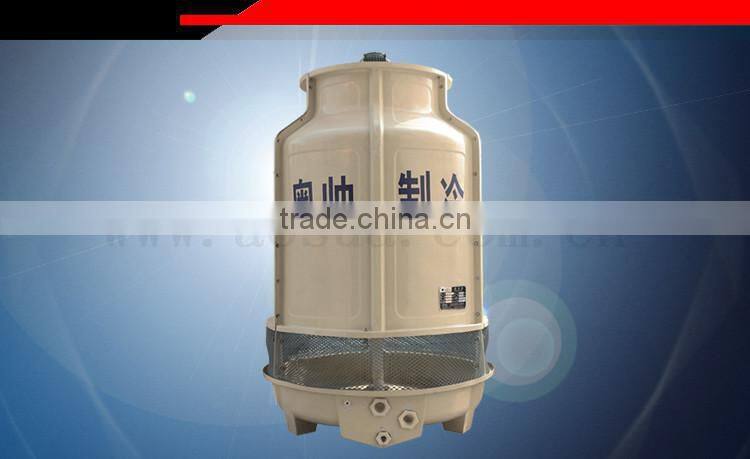

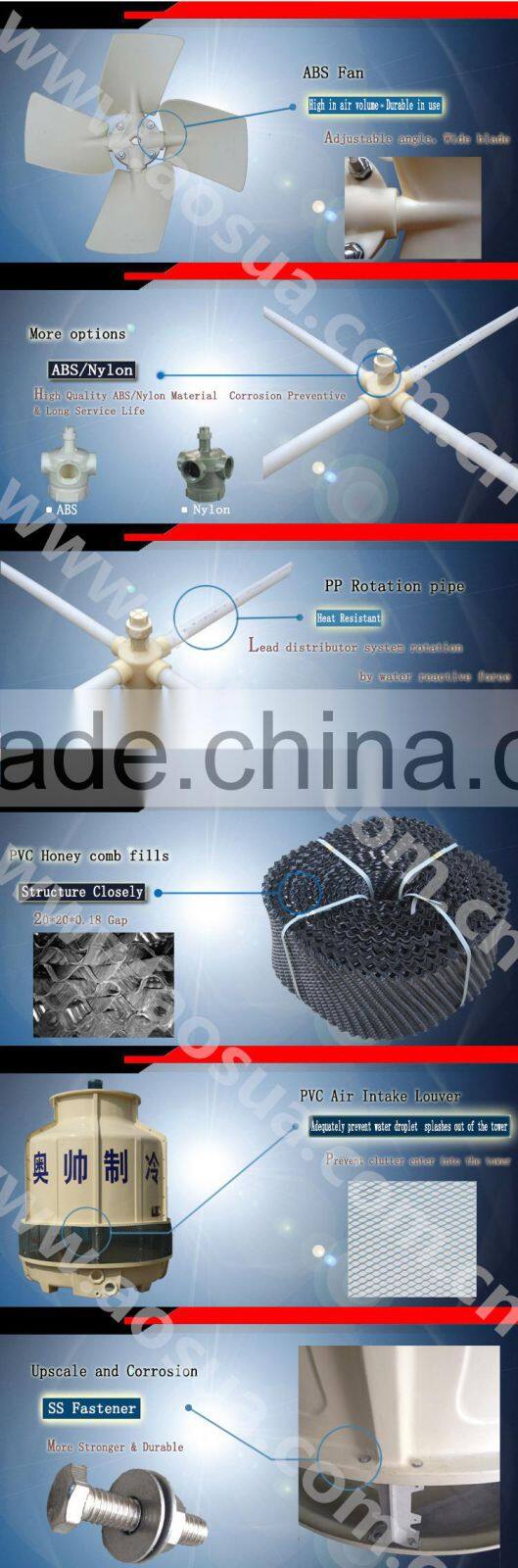

Aosua round counter flow cooling tower is mainly composed by motor,fan,sprinkler head,filler,casing,basing and air intake louver.

Aosua Round counter flow cooling tower has been technique corrected in the original basis.Not only match up high quality motor but also improve product’s material selection and technology.It make Aosua round counter flow cooling tower have more perfect users experience.

There are two types of round counter flow cooling tower heat resistant(GAB) and standard type(AB).

GAB is suitable when water inlet temperature over 55 C degree.AB is suitable when water inlet temperature under 55 C degree.

Model	Flow m3/h	Fan Diameter mm	Theoretical Wind m3/h	Motor Power (KW)	Dimension (mm)		Weight (kg)
					Hight	Max outer diameter	Weight (kg)
					Hight	Max outer diameter	Shipping	Operating
AB-3	3	300	2200	0.18	1200	650	35	85
AB-6	6	584	3400	0.18	1410	930	53	133
AB-8	8	584	4500	0.18	1560	930	56	139
AB-10	10	584	5700	0.18	1670	1020	75	200
AB-12	12	760	6800	0.37	1700	1100	84	219
AB-16	16	760	9100	0.37	1780	1250	110	365
AB-20	20	760	11300	0.37	1780	1400	140	300

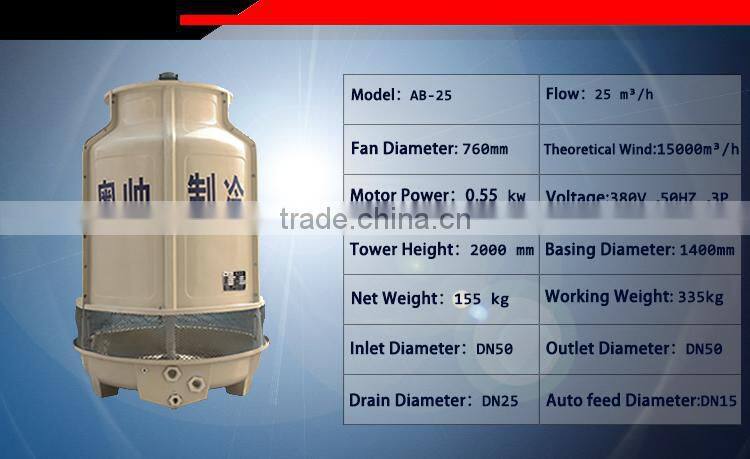

AB-25	25	760	15000	0.55	1960	1400	160	364
AB-30	30	844	17000	1.1	1980	1620	165	369
AB-40	40	844	21000	1.1	2010	1840	165	369
AB-50	50	844	23000	1.1	2210	1840	191	433
AB-60	60	1000	28000	1.5	2400	2000	368	730
AB-70	70	1190	33000	1.5	2530	2230	423	753
AB-80	80	1470	45000	2.2	2680	2500	607	1023
AB-100	100	1470	50000	2.2	2820	2900	695	1130
AB-125	125	1800	57000	4	3130	3300	908	1588
AB-150	150	1800	70000	4	3350	3300	1015	2035
AB-175	175	1800	85000	4	3670	3600	1310	2540
AB-200	200	1800	99000	4	3900	4000	1613	3117
AB-225	225	2400	113000	5.5	4165	4500	1796	3465
AB-250	250	2400	142000	5.5	4290	4500	2121	3876
AB-300	300	3000	171000	7.5	4435	4900	2235	3990
AB-350	350	3000	210000	11	4735	5300	2420	6101
AB-400	400	3400	228000	11	4820	6100	3153	8135
AB-450	450	3400	285000	15	4820	6100	3347	9332
AB-500	500	3700	342000	15	5145	6800	3860	10970
AB-600	600	3700	400000	18.5	5145	6800	4084	11679
AB-700	700	4200	456000	22	5732	8000	5460	13254
AB-800	800	4200	570000	22	6050	8000	6074	14574
AB-1000	1000	5000	712000	30	6390	8880	7315	15110
