Specifications
JS1000 concrete mixer1.multi- shaft seal structure
2.streamline mixing device

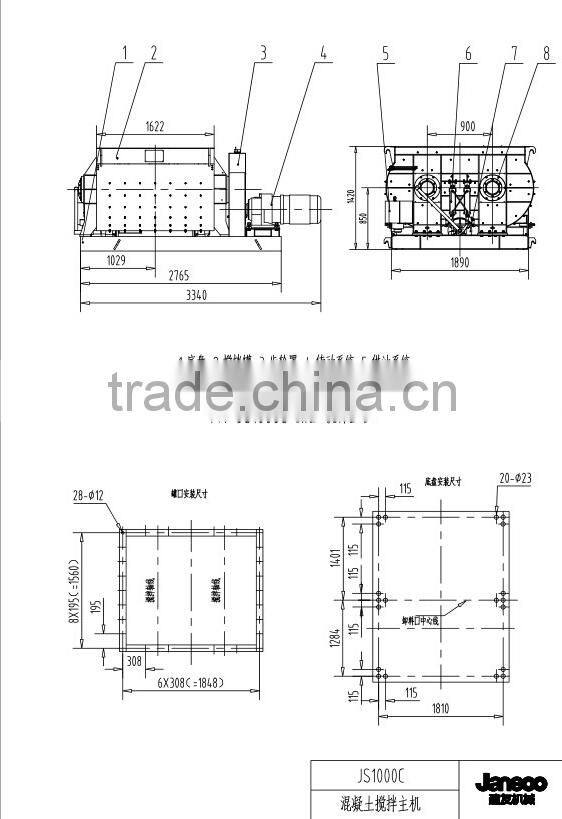

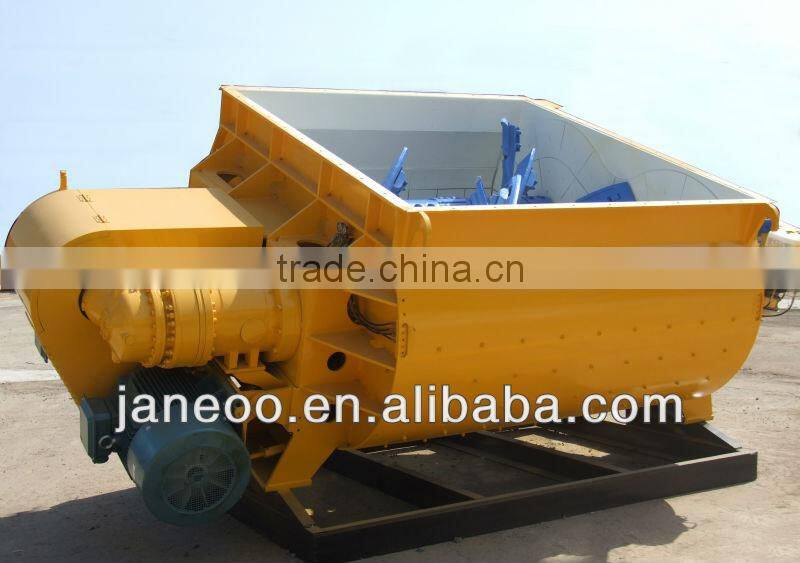

JS1000 concrete mixer
.
JS1000C concrete mixer is optimizing design on the basis of originating product with high efficiency.
Principle of work
JS1000C concrete mixer drives mixing axis by gear transmission and make the two mixing axis reverse same speed by synchronous gear. The mixing arm and blade with screw belt form make the material radial turn around and move in order to produce intense extrusion and convection to produce even quality concrete in the shortest time
Features:
1.multi- shaft seal structure,the str
2.streamline mixing device
Application:
ncrerte production line of mixer
2.slurry mixing
3.handing of hazardous waste solidification
| Model | Nominal capacity(L) | Feeding capacity(L) | Max.Agg.Size(L) | Overall dimension(mm) | Weight (kg) | Power(kW) | |||
| Grave | Pebble | L | W | H | |||||
| JS1000 | 1000 | 1600 | 60 | 80 | 3430 | 2090 | 1420 | 5200 | 2x18.5 |
| JS1500 | 1500 | 2400 | 60 | 80 | 3100 | 2090 | 1470 | 5300 | 2x30 |
| JS2000 | 2000 | 3200 | 60 | 80 | 3450 | 2470 | 1700 | 8600 | 2x37 |
| JS3000 | 3000 | 4600 | 60 | 80 | 3600 | 2470 | 1700 | 10150 | 2x55 |
| JS4000 | 4000 | 6400 | 60 | 80 | 4200 | 2850 | 1940 | 13500 | 2x75 |
| JS4500 | 4500 | 7200 | 60 | 80 | 4730 | 3870 | 2190 | 16700 | 2x75 |
| JS5000 | 5000 | 8000 | 60 | 80 | 4730 | 3870 | 2190 | 16700 | 2x90 |
| JS6000 | 6000 | 9600 | 60 | 80 | 6260 | 3870 | 2190 | 20600 |
4x55 |

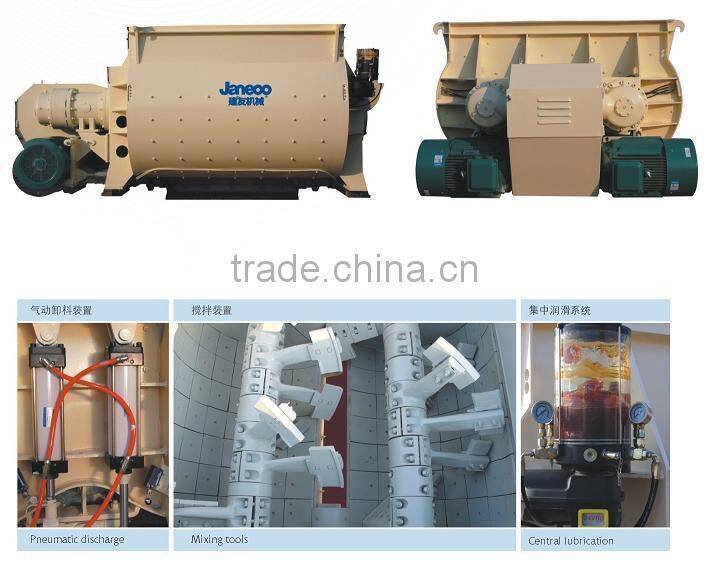

It is consisted of mixing shaft, mixing arm, mixing blades and shaft end sealing devices. Mixing arms are arranged by 45 degree screw belt form. Mixing arm and mixing shaft connected and fixed by joint sleeve and screw bolts. Mixing blades and mixing arm connected by screw bolts through slotted hole. Keep the distance between the blades and lining boards of the drum within 5mm by adjusting the position of mixing blades.
Storage
Always keep the mixer in the plane and strengthening basement or buildings without any mechanical vibration, humidity, dust and chemical corrosion.
If the mixer is left unused for a long period of time, feed lubricant till lubricant flow out from the four drum shaft ends.
If the mixer is left unused for a long period of time, spray rust-preventive oil to the surface of the spare parts easily rust every 6 months. Feed lubricant to lubricant pipelines and position.
OUR COMPANY
JANEOO was established in 1956. In 2012, JANEOO was incorporated and thus became a holding company of SHANTUI Group. As one of the first major manufacturers of concrete mixing and conveying machinery in China, JANEOO is well known at home and abroad. Years of technological innovation have enriched our design and development capacity. We can quickly adapt to the changing market trends and provide customers with designer products and bundled services. JANEOO products are widely used at airports, bridges, docks, public roads, high speed rails and other construction sites. Beyond that, we were the designated supplier for high-profile national projects including the Three Gorges Dam, the Capital Airport, the Beijing-Shanghai high-speed railway, and the Qinghai-Tibet Railway. Our products are available in 55 countries and regions worldwide.
After-sale Service
1.May enjoy the life-long service after you buy our products.
2.Perfect system of spare parts suppy,skillful after-sale-service specialists are available for customers at 7x24 hours every week.
3. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received the telephone.
6. For exported products, Our company sends the constructor to help to operate and management equipment, time according to your needs. The related fee will be undertaken by buyers.
7. Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
8. All products (easy worn parts not included) loss caused by non-human factors will be free of charge for half a year.
9. Provides the technology advisory service as necessary.
10. Please contact me via telephone 0531-89815062 mobile +8615098890569 when you have any problems with the plant.
Q: I have seen your equipment in my country, could you shortly introduce your company to me?
A: Janeoo is a State-owned enterprise with 58 years’ history.
1956 - It was set up making brick machinery;
1962 - Started making concrete machinery;
1982 - Finished making the first twin-shaft concrete mixer in China;
1988 –Finished making the first HZS50 concrete batching plant in China.
Nowadays with continuously increased investment in scientific research and by virtue of its excellent technology, Janeoo has so far enriched its product lines ranging from concrete mixing plant to dry mortar batching plant & asphalt mixture batching plant.
Q: Where are your equipment mainly used?
A: Domestically, we were the designated supplier for high-profile national projects including Three Gorges Dam, The Capital Airport, Beijing-Shanghai High-speed Railway, Qinghai-Tibet Railway, etc.;
Overseas, our products have been delivered to more than 55 countries until now.
Q: What is the relationship between Janeoo and SHANTUI?
A: Janeoo is a state-owned enterprise specializing in Concrete Machinery manufacturing with 58 years of experience, enjoying high reputation both at home and abroad. In 2011, the two GIANTS (Janeoo and SHANTUI) in the engineering machinery manufacturing industry finished merging and equity restructuring, and Janeoo has since become SHANTUI’s specialized concrete batching equipment manufacturing base in China.
Q: So there must be an excellent group of engineers in your company.
A: I have to admit it. We have a state-level R&D center with 84 engineers, obtaining more than 30 national patents for utility models. We were nominated as the Provincial-level R&D Center by SHANDONG INNOVATIVE ENTERPRISE ACCREDITATION AGENCY in 1999, and the Provincial-level R&D Center For Engineering and Technology by The People's Government of Jinan City in 2012.
Q: I have an available procurement plan, where shall I start?
A: We have complete distribution channels worldwide that help do marketing and promotion work, you can make the purchase locally or the NETWORK DIRECT SALE, only via this channel will you get the best price.
Q: What does the NETWORK DIRECT SALE differ from commission sale in after-sale service?
A: Varying from commission sale, direct sale endows you with distinguished privilege on the price. Beyond that, we will dispatch 1-2 technicians to guide to conduct the first-time installation and commissioning work for free. You might otherwise use local manpower provided by our agent, but chances are that it will cost you AN ARM AND A LEG.
Q: Sounds reasonable. What about spare parts? Where can I get them?
A: It is strongly recommended you purchase some (see details in SPARE PARTS LIST) shipped along with the equipment. Besides, we have four overseas service stations spreading over the major markets (Angola, Algeria, Russia & Indonesia) of our export.
Q: What benefits can I enjoy from being you agent? I have a team of experienced workmen. We can handle the equipment installation.
A: Price cut, Marketing promotion, Technical support, Personnel training, Rebate policy, etc.
All being listed in the DEALERSHIP AGREEMENT.
