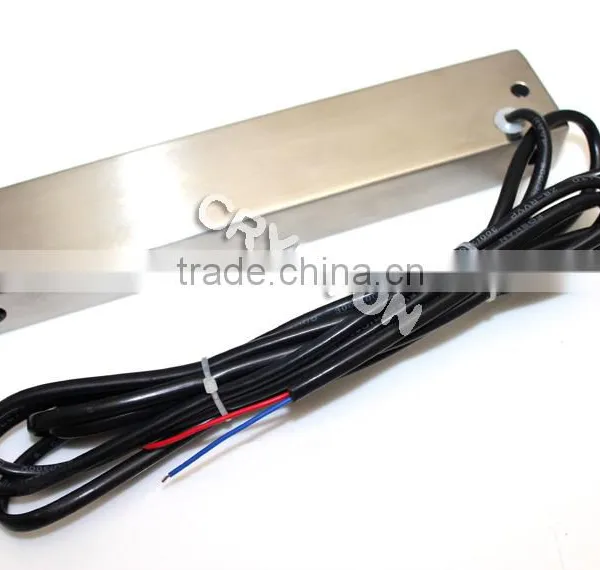

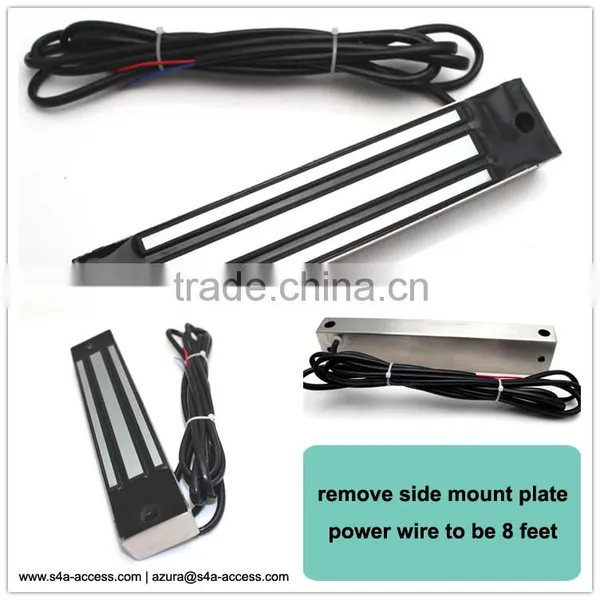

Help CenterODM Waterproof Mag Lock Wire to 8 Feet and no Need Side Mount Plate
Related Products
-
ODM RS232 USB Card Issuing DeviceNegotiableMOQ: 1 Piece -
RS232 USB Issuing RFID Card Reader With RS232 CommunicationNegotiableMOQ: 1 Piece
-
ODM Waterproof 280KG EM Lock Wires Out the BackNegotiableMOQ: 1 Piece
-
IP68 Weatherproof Stainless Steel Body 280kg Magnetic Lock With 4 Wire Door Status Indicator Output for Customized ModelNegotiableMOQ: 1 Piece
-
Stand RFID&MF Access Control Keypad With Time and Attendance SoftwareNegotiableMOQ: 1 Piece
| Parameter for EL-W600 Magnetic lock with 600lbs holding force and IP68 Waterproof | |||||
| lock size | 222 Lx47Wx26H(mm) | ||||
| Armature plate | 180Lx38Wx12H(mm) | ||||
| Holding Force | 280kg (600Lbs) | ||||
| Voltage | DC12V | ||||
| Current Draw | 12V/480mA 24V/240mA | ||||
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door | ||||
| Signal Output | Support | ||||
| Surface Temp | ≤+20°C | ||||
| Operating Temp | 10~+55 (14-131F) | ||||
| Suitable Humidity | 0~90%(non-condensing) | ||||
| Material | Stainless Steel Body | ||||
| Finishes for Magnetic | Zinc | ||||
| Finishes for Armature | Zinc | ||||
| Weatherproof | IP68 Waterproof EM lock | ||||
| Weight | 2kg | ||||
| Standard Packing | 10pcs | ||||
|
| |||||
| Different quality depend on Different price | |||||
|
Crypton Magneitc lock,We guarantee 2 year and accept OEM & ODM order.
| |||||
| | |||||
|

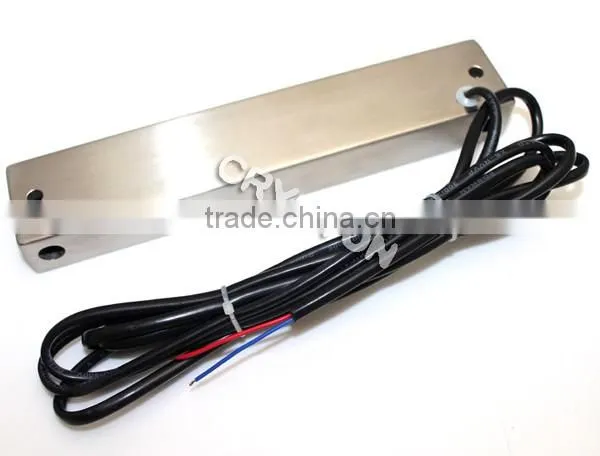

This is factory default EL-W600 Waterproof 280KG Magnetic Lock 2 Wires | |||||
| | |||||
|
| |||||
|

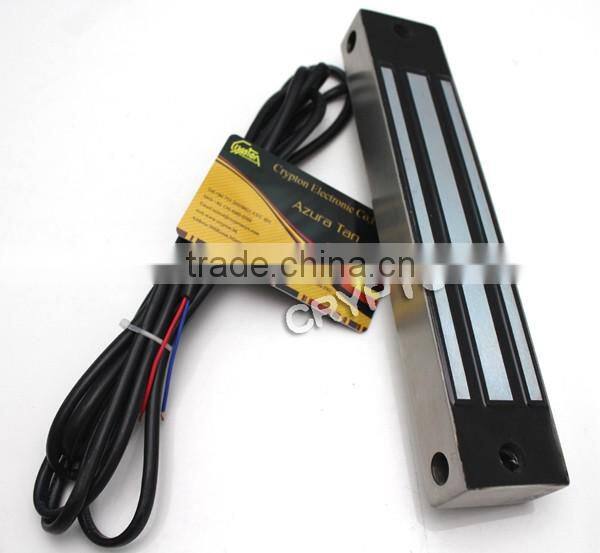

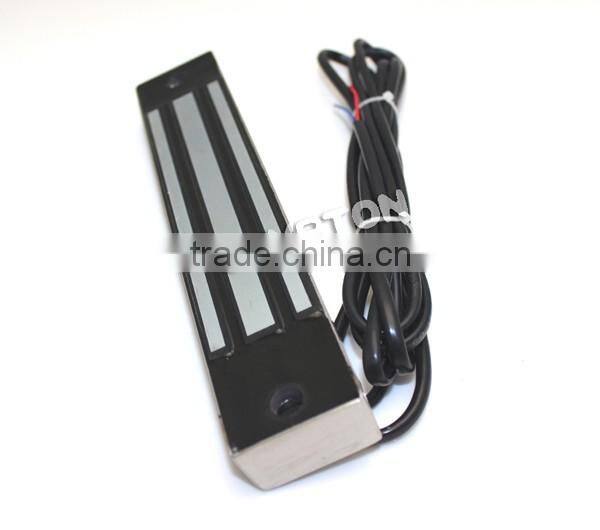

This is ODM Waterproof 280KG EM Lock Wires out the back which we did OEM & ODM for USA clients | |||||
| | |||||
|
This is Crypton EL-W600 IP68 weatherproof Stainless Steel Body 280kg Magnetic Lock customized 4 Wire door status indicator output for Australia clients. | |||||
| | |||||
|

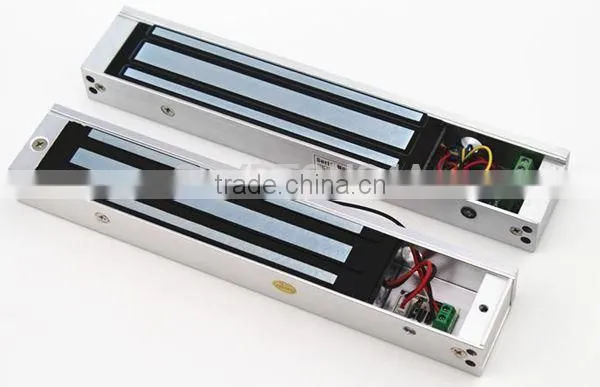

Azura will show how is the difference of magnetic lock, we took 280KG Mag Lock ( EL-600ST ) as for example: | |
|
1:from design,appearance,there has no difference,
| |
|
Ms Azura TAN ( Skype: crypton0929 ) ( E-mail: azura @ )
EM Lock manufacturer support OEM company logo ODM customized.
| |
|
For better understanding,here is PCB board for Magnetic Lock
| |
|
You see, it also 12V and 24V adjustable.

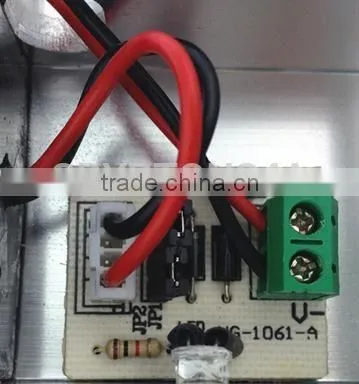

This is A version EL-600 PCB board,
| |
|

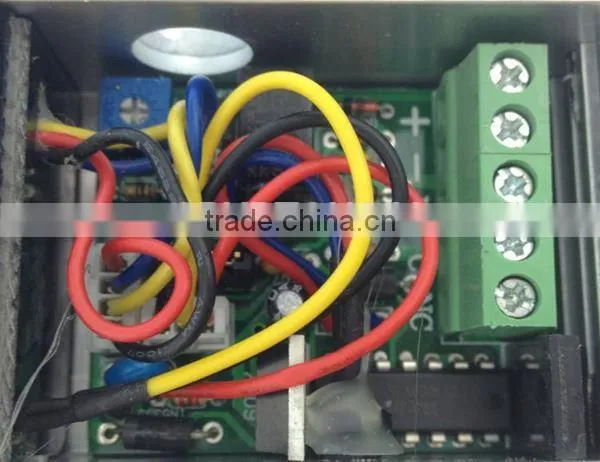

This is Crypton EL-600ST Magnetic Lock Details PCB board: 5terminals, + - NO,NC.COM built in LED. Time delay. 0 3 6 9seconds. 12V/24V | |
| |
Crypton Magnetic Lock..Factory default package is 10 units/Standard BOX..
LZ Bracket is 20 units/Standard BOX..

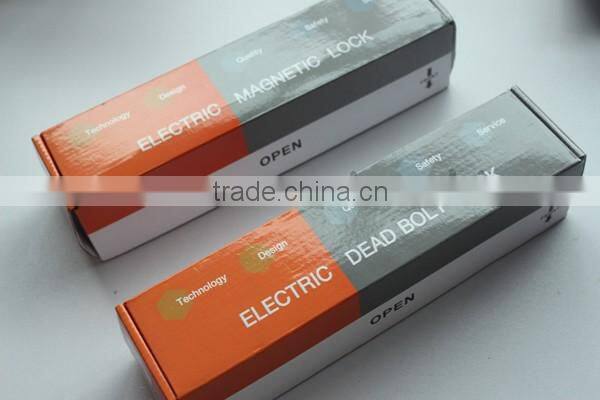

This is one of Crypton clients do ODM design color package for Electric Magnetic Lock and Dead Bolt Lock:
Support OEM order and ODM customized Magnetic lock and Package..

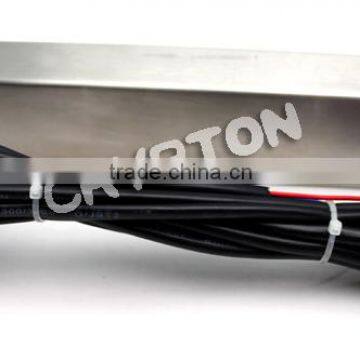

This is Electromagnetic Lock do OEM Crypton logo...My dear friend, IF based on 50 units for Magnetic Lock,
We accept do OEM company logo without extra cost..
Just send Azura ( Skype: crypton0929 | E-mail: azura@ )
your authorized letter of your company logo, then its okay.
Products we could provide are below:
Access Control Board
(for single door, double door and four door support TCP/IP +WEB + APP-smart phone)
Standalone access control
( Metal& IP68 Waterproof, Touch Screen, Keyless, Fingerprint etc )
Fingerprint access control&time attendance
(Easy to install and program with software and keep record)
UHF long range card reader
(5M or 15M or 20M are avaliable in the stock list)
Facial access control terminals
(Face to open the door or do record)
Electromagnetic lock/Bolt lock/Strike lock
Exit push button/Access Power supply/RFID cards
RFID card reader
(to work with access control board)
S4A 6868 Facial Recognition Door Lock
We are here waiting for your inquiries! My friend
| What's Crypton access control board features and advantages? |
|
Answer: Our advantages: easy to install, easy to use, easy to upgrade, high stability and compatibility. You may find we don't have a lot of models, but all these models are Crypton's elite of 10 years experience in this industry. |
|
2: Can your software be translated into our local language? You know I have many customers who don't speak English. |
|
Answer:
|
| 3: does your company has any guys to guide me how to use software and hardware? |
|
Answers: Yes sure, any questions, we will reply it within 2 hours at working time. all issues and questions must be solved within 2days at non-working time. |
| 4: Contact us |
|
For any further Door Access Control System & solutions, Kindly contact Azura at anytime.
Skype: crypton0929 E-mail: azura@ Website: www. www.
Let's Walk together and Win together for further business~~
|
