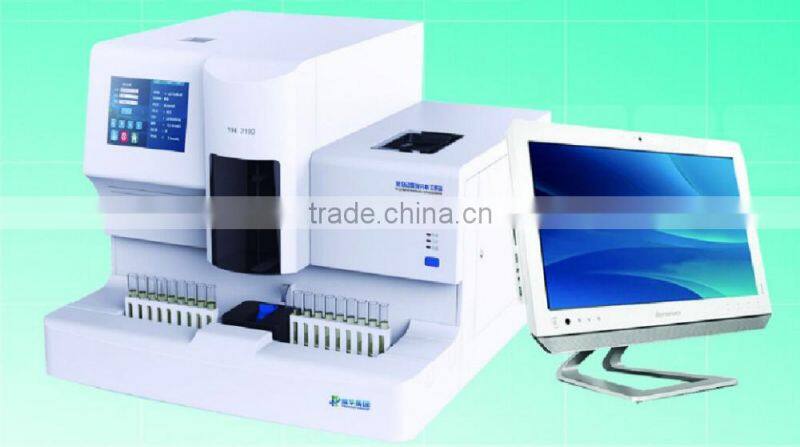

Full Automatic Urinalysis Hybid
Unique design which combines two into one:it provide the best overall solution for urine analysis
Efficient detection speed:Workstation Model 125 samples/hour
Comprehensive test items:12 items of urine particles+14 items of urine dry chemistry+3 items of pharmacology analysis project
Long unattended time:Unattended time could reach to 2 hours
Advanced detection principle:it uses planar flow cytometry technology,while samples do not need stain and centrifugation which save cost
Real cell image:Sample with problems could be reviewed by images without manual microscopy
Product features
1. color touch screen nu operation interface,convenient operation
2.New cold light source testing technology,strong anti-interference,high sensitivity,good stability
3.The instrument includes 8 inch color touch LCD screen,It could identify sample position and information automatically which
could improve efficiency.It could accommodate more than 200 urine strips and can add any time
4.Automatic sampling device.The samples do not need centrifugation or pretreatment.Just put into rack and instrument would test
5.Emergency instertion function.The instrument would give priority to deal with the emergency sample without stopping the routine detection.
6.The instrument could add certain sample intelligently according to the urine strip reaction block which ensure the adequacy of the reaction and uniformity
7.Accurate quantitative sample technology which avoids cross contamination between projects
8.The instrument could do quantitative analysis to SG.It could test the sample color and turbidity.
9.The instrument could accommodate 60 samples
10.A complete system
11.The function of automatic calibration and charges,quality control
Technical Index
| Urine Particles |
Urine red blood cells,white blood cells,squamous cell,the squamous epithelial cells and transparent tube,unclassified tubular,crystallization.mucus,bacteria,yeast and white blood celles,sperm,etc Leukocytes,Nitrite,Urobilinogen,Protein,pH,Blood,Specific gravity,ketones,bilirubin,glucose,ascorbic acid,calcuim,creatine,microalbumin,turbidity,color |
wavelength Monochromatic |
520nm 570nm 610nm 650nm |
| Measurement principle | Urine particles:analysis of plane flow cytometry techniques Test strip:Refletancemethod specific gravitY.Refraction method(matching hydromete) |
| Meaurement speed | 240 strips/hour |
| Test tube rack capacity | 6 test tube pack |
| sample capacity | >3ml |
| inhalation sample capacity | <2ml |
| Applicable strip | specifical urinalysis test strip of YH-1800 10A,11A,12A,14A |
| Data storge | 1 millions |
| External output | RS-232 serial interface parallel printer interface |
| Display screen | 8-inch color touch LCD screen and computer screen |
| Lanuage | English/chinese |
| Power source | 100-220V |
| Power | 120VA |
| Fuse specification | 250V 2A |
| Weight | 70KG |
| Size | 700*745*584mm |
