Urine Control-Urine analysis system:
This system including the urine analyzer and urine test strip
The urine test strip Used in clinical for urine leukocyte,nitrite,urobilinogen,protein,PH,blood,specific gravity,ketone,bilirubin,glucose,Ca,Creatinine, ascorbic acid,Microalbumin for qualitative and semi quantitative detection. The chemical reaction between test strip and urine would lead to color change. By colorimetric analysis, Concludes that the relative concentration of various measured substance.
| project name | Unit | Test range |
| LEU | cells/ul | 15-500 |
| NIT | umol/L | weak positive/ strong positive |
| URO | umol/L | 3.2-128 |
| PRO | mg/dl | 15-2000 |
| PH | 5-8.5 | |
| BLD | cells/ul | 10-250 |
| SG | 1.005-1.030 | |
| KET | mmol/L | 0.5-16 |
| BIL | mg/dL | 0.5-2.0 |
| GLU | mmol/L | 5-110 |
| VC | mmol/L | 0.5-2.8 |
| Ca | mmol/L | 1.0-12.5 |
| CRE | mmol/L | 0.9-26.5 |
| Microalbumin | mg/L | 30-150 |
[Test Method]
Visual colorimetry:
1,Put all area of strips into the fresh urine fully mixed and take out immediately.
2,Lean the test strips against the edge of container side, wipe away extra urine;
3,Hold the test strip, compare it with colorimetric table on the bottle, record the test results in its determination time;
4,Normal working conditions: ambient humidity 10 ℃ ~ 30 ℃; relative humidity RH = 60%.
Urine analyzer colorimetric methods:
Please test according to the urine analyzer used in the operating instructions for testing.

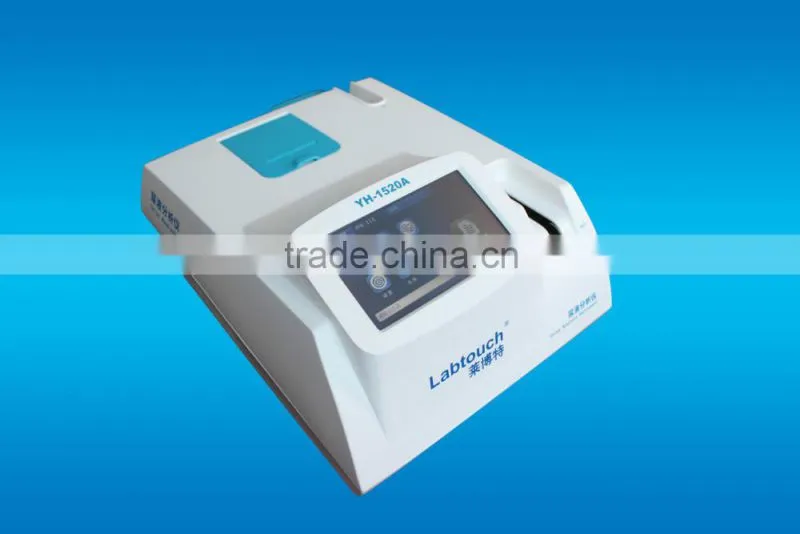

YH-1520A urine analyzer is one semi-automatic instrument which used microprocessor and photoelectric technology.It use color touch screen operation,have high intelligence degree and the accurate result,Instrument is composed of shell,power supply,transmission system,measuring system and color touch screen,bar code scanner,thermal printers,serial and parallel parts.
| Standards | Paramater |
| Scope of detection | LEU,NIT,URO,PH,BLD,SG,KET,BIL,GLU,VC,CA,CRE,MCA,Ratio of MCA and CRE. |
| Test strip type | 8A-14A |
| Detection principle | baffled photometer measures the change of strip color and calculate the density of according item,then output the result |
| Detection wavelength | 525nm,565nm,620nm,660nm |
| Detection speed | 180 report/hour |
| Report way |
liquid crystal display,serial port output,internal 57nm thermal printing with english and chinese,extermal pin type printing with english and chinese,external pin type printing with english and chinese |
| Screen | 800*480 TFT-LCDcolor touch screen |
| Input | color touch screen operation,the specimen bar code scanning input.the strip bar code scanning identification |
| Report memory | memory 5000reports |
| Working voltage | AC220/110V+/-15%,50/60HZ |
| Power consumption | 50VA |
| Size | 405*325*220mm/5KG |
