USP Type I ampoule

Specifications

1.USP Type I ampoule
2.Size:1ml
3.Standard:ISO/YBB
4. Use: Pharmaceutical

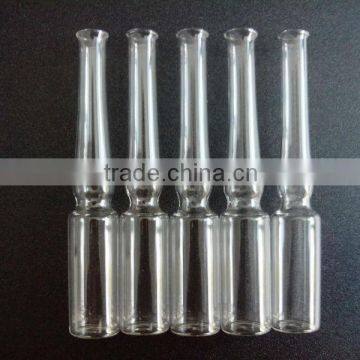

Pharmaceutical low borosilicate USP Type I glass ampoule

1. Made of COE 5.0 and COE 7.0 pharmaceutical glass tube (low borosilicate glass)

2. Color: amber or clear

3. Standard: ISO and YBB

4. USP Type I



Specification   ml	Thickness of body	O.D of body	O.D of constrction	O.D of bulb	O.D of stem	Total height
1	0.5±0.04	10±0.22	6.3±0.7	7.8±1	5.2±0.3	60±0.5
2	0.5±0.04	11.5±0.22	7.3±0.5	8.5+0.7    -0.3	5.5+0.5    -0.2	70±0.6
3	0.5±0.04	12.8±0.22	7.6±0.5	8.5±1	6±0.3	70±0.8
5	0.55±0.04	16±0.26	8.2+1    -0.2	10+1   -0.6	6±0.3	870±0.8
10	0.6±0.04	18.4±0.30	8.8+1.2    -0.2	11+1    -0.6	7±0.5	102±1
20	0.7±0.04	22±0.30	10.5+1    -0.5	13+0.8   -0.8	7.5±0.5	126±1



Material:low Borosilicate glass

Type:Chinese standard ,FORM B C D E ,Europe standard

Size:1ML-30ML(Can be customised)

Color:Clear and amber

Priting and ring:Availabled

Applicable industry:Pharmaceutical



Specification   ml	Height up to constrction	Height up to shoulder	Height up to colour point	O.D of mouth	Thickness of stem	Thickness of botom
1	25±1	21	31.5	6.2±0.4	0.2	0.25
2	36.5±1	32	43	6.7±0.4	0.2	0.25
3	36.5±1	32	43	7.2±0.4	0.2	0.25
5	43±1	36.5	50.5	7.5±0.4	0.25	0.35
10	58.5±1.2	53.5	66.5	8.6±0.5	0.30	0.35
20	76.5±1.5	68	85	9±0.6	0.30	0.35











injection:

Yearly output: 1.2 billion pieces

specification:1ml,2ml,3ml,5ml,10ml,20ml

Standard: YBB and ISO(USP TYPE1)

We have 12 sets of ampoule machines, with annual production  up to 1.2 billion pieces.

Logo: we can print as your demands







As an investment promotion enterprise of Laiwu City, Laiwu Yaohua Pharmaceutical Packing Co., Ltd. was established in July 2006. At present, we have 12 sets of ampoule machines and supplementary equipment, which can produce 1.2 billion ampoules per year; 4 sets of roast word machines, with an annual production capacity of up to 500 million; and 10 sets of machines for injection bottles, with a production capacity of 400 million.

Our products sell well to more than 100 medical enterprises in many provinces, cities, and autonomous regions of China. We also export our products to more than 20 countries. You can find our products in Korea, Pakistan, Russia, India, the Philippines, Italy, the Middle East, Thailand, Vietnam, Syria, and other countries and regions.
