LT20A high frequency medical portable x ray machine price
Main specifications and parameters:
Max. photograph tube voltage: 90kV/22mA
Max. photograph tube current: 50mA
Max. Output: 2.0kW
Exposal time: 0.01s - 4.0s
MAS scope: 0.5mAs - 160mAs with 46 alternations
Voltage scope: 40-90kV KV with 26 alternations
Main frequency: 30kHz
Max. light field: ≤35CMX35CM @65CM SID
Min. light field: ≤5CMX5CM @100CM SID
Focus size: 2.3mm
Power: 220V ± 10% single phase alternating current with the frequency of 50Hz ± 1Hz
Resistance: ≤ 1.0 Ω
Power capability: ≥ 2.5kVA
Electricity protection type: Class I, Type B
Weight: 19kg
Instruments container is an additional option.
Features:
¨ Integrated with high frequency and high voltage generator, main control system, intelligent computer system, numeric display and beam limited device, it is designed and manufactured precisely and compactly, more flexibly and widely used.
¨ Using the technique of inverse converter for HF and computer-controlled closed-loop adjusting System, stable high voltage output is generated and high-quality images can be obtained.
¨ Using the buttons of KV and mAs to adjust the photographic parameters, display them on high-brightness LEDs, interlock protection conditions is determined by software, which is convenient for doctors to operate.
¨ X-ray Tube is placed in lead cylinder which can effectively shield the gamma leakage and protect environment and operators’ safety.
¨ 20 radiographic conditions are preset and can be customized according to user requirements.
¨ Photography Time is controlled precisely by computer, host will automatically delay 10 seconds at the end of photography which can effectively control photography interval, avoid overloading and achieve automatic protection.
¨ Hand-controlled and remote-controlled photography function
¨ Using computer to monitor fault sources, the computer will cut all outputs, display fault code and identify the fault reasons if a fault appears.
¨ Suitable for all kinds of cassettes.
Structural performance:
¨ Radiography can be launched after X-ray apparatus is suspended on the frame.
¨ The fuselage of X-ray apparatus is suspended on the frame, can rotate left and right at larger than or equal to ±90°, X-ray tube head can rotate at 90°which is easy to project in different angles.
¨ The arm can move up and down, has Servo-balance and lock-up device.
¨ The fuselage of X-ray apparatus weighs 19Kg, is more convenient to carry. The frame weighs 23 Kg, is more flexible to move at different places.
¨ The frame can be disassembled and folded quickly, then putted into trunk, which can make out-call more convenient.
Instruments container is an additional option.
use:
outgoing save,orthopaedics hospital,basic level physical,hairdressing and reshaping,ICU ward,emergency call,
community medical treatment,rural area medical treatment,general medical treatment

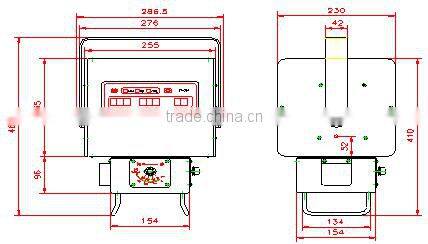

Dimension
