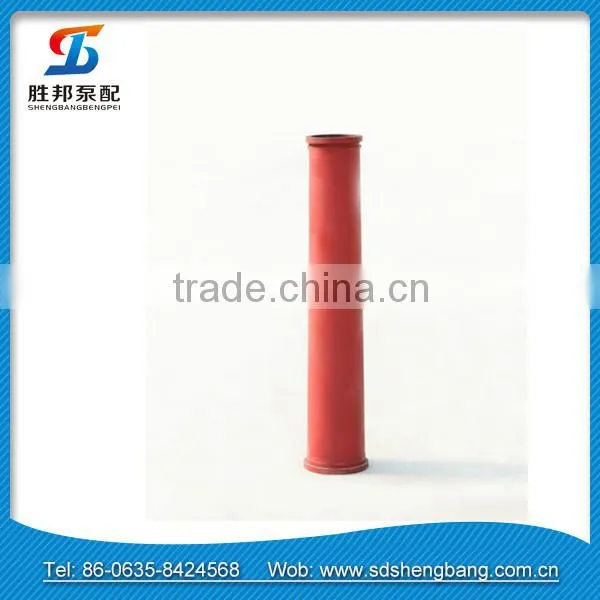

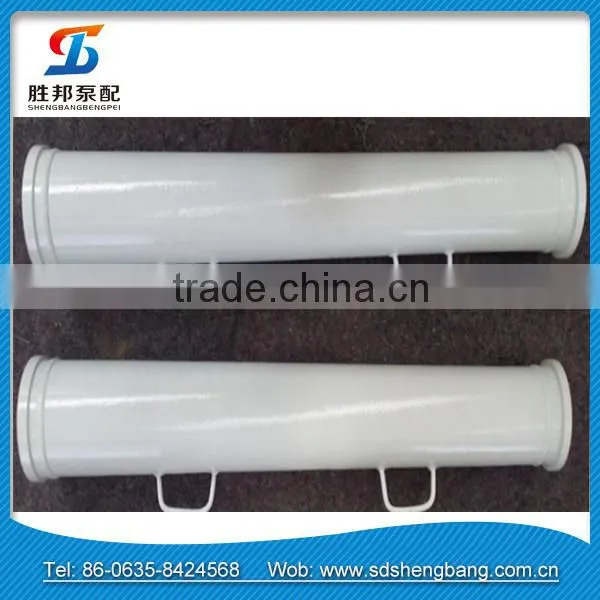

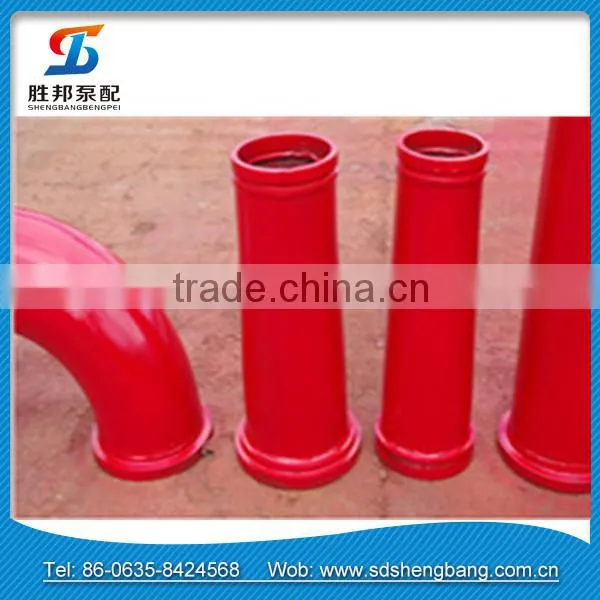

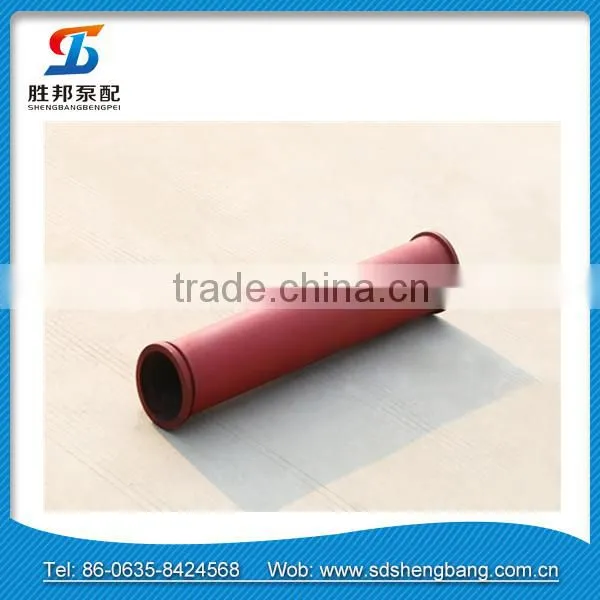

1. Specification :
Material: 20# steel (Alloy steel,twin wall aslo can produce)
Weight: 17kg (6mm with SK flange)
Processing way : Hot expanding
Size: 5"-4"*918mm (other size aslo can produce)
Flange type : SK ( HD,ZX,MF can do)
Referece lifetime: 20,000-4,000CBM.
Connection type : clamp
Cleaning way : use cleaning ball
2. Standard SK flange type:
This type flange reducer pipe can apply for mostly of concrete pump, Such as Junjin,KCP,SANY,ZOOMLION,CIFA,PUTZMEISTER etc.

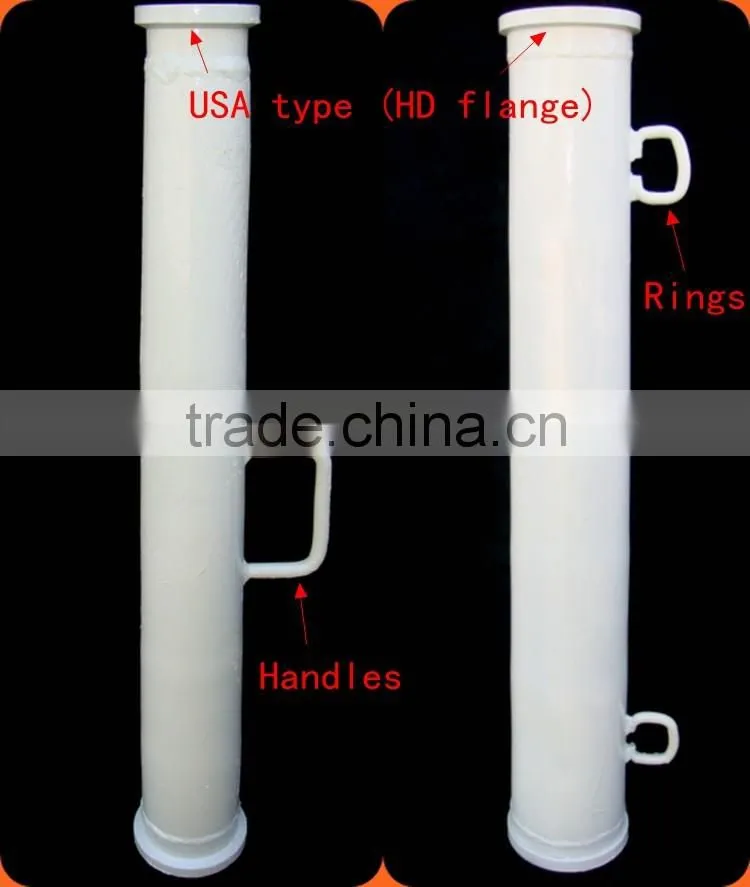

3. HD flange type:
This type reducer pipe mostly used for USA,MEXICO,CANADA market.
4. Other size we can produce according to your requirments:
| Model | Specifications | Thickness | Weight | Flange type | Flange size |
| 6"-5" | 6"-5"*500mm | 7mm | 12kg | SK-SK | SK205-SK145mm |
| 5"-4" | 5"-4"*620mm | 6mm | 12kg | SK148-SK124mm | |
| 5"-4"*918mm | 6mm | 17kg | |||
| 5"-4"*1950mm | 7mm | 35kg | |||
| 5"-3" | 5"-3"*1000mm | 6mm | 14kg | SK148-SK97mm | |
| 4"-3" | 4"-3"*600mm | 6mm | 8kg | SK124-SK97mm | |
| 4"-3"*918mm | 6mm | 13kg | |||
| 4"-3"*1200mm | 6mm | 18kg | |||
| 4"-2" | 4"-2"*1200mm | 6mm | 13kg | SK124-SK67mm |
1. concrete pump clamp / coupling
DN125, also rubber seal can be supplied.
Snap Clamp

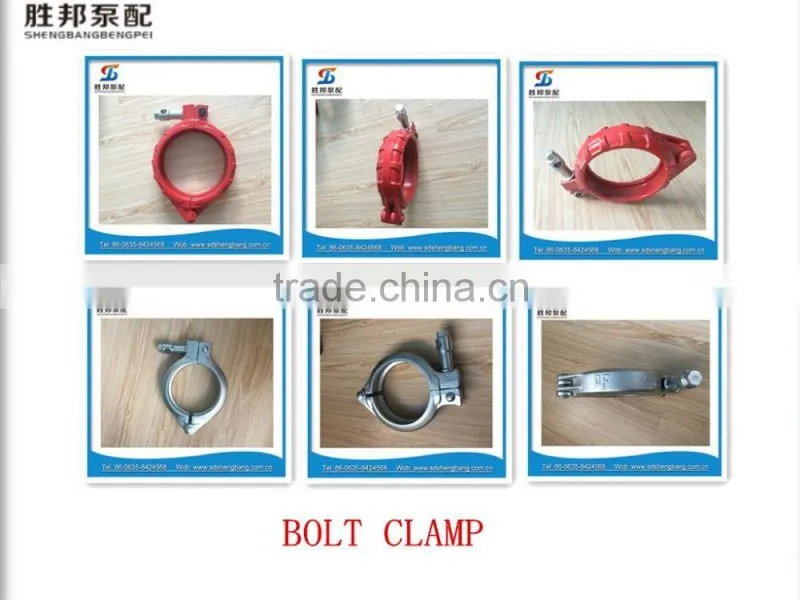

Bolt Clamp
Forged Steel & Casting Steel
2. Concrete pump pipe
ncrete pump rubber hose
High Pressure Rubber Hose
85bar working pressure
250bar bursting pressure
4000mm length with 2 or 4 steel wire woven.
single or double ends as customized.

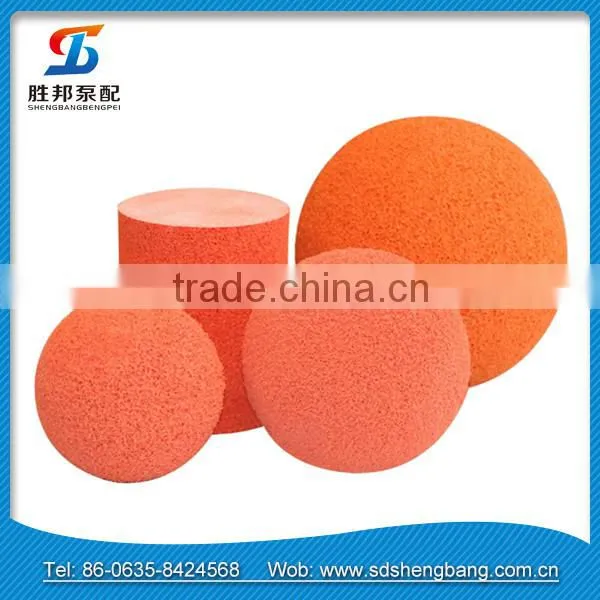

4.concrete pump cleaning ball
DN125 /DN150 Soft / medium / hard kind
(1) 24 hours online for before and after sale service
(2).Our products can used for most of concrete pump, SCHWING , PUTZMEISTER, KYOKUTO, SANY, ZOOMLION, CIFA etc.
(3). Free sample can be provide to test.
(4). Under normal use, if the flange drops, can exchange for free.

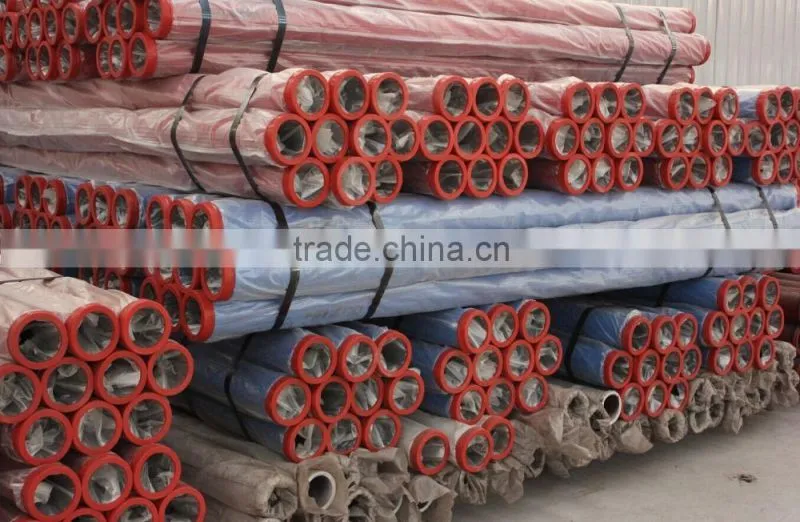

(1). Concrete pump reducing pipe outside packing with Plastic bags and caps to protect surface and flange.
(2). Packing in wooden case, 50 pcs per I CBM wooden case, Fit for LCL goods, qty less than 250 pcs.
(3). More than 1000 pcs can put in bulk .
1. Are you manufacturer ?
Yes, we are real manufacturer which is located in Liaocheng City ,Shandong Province with 10+2 years both domestic and foreign market experience .
2.Whats the MOQ of your product ?
1 piece for all category.
3.Could you supply free sample ?
Yes, free sample can be provided to make test . But please buy an air ticket for it.
4.What's your Leading time?
Quantity less than 250 pcs 4 days; 250*500 pcs 7 days, 500 pcs~ 10 days.
5. May i know the Payment terms?
T/T,LC,WEST UNION etc, 30% deposit,the belance before shipment.
6. I want to make our logo on the products, is that ok?
Yes, it’s ok. OEM is available from us.What you should do is send your logo, brand name, or picture to us.
