Specifications
Metal Expanded MachineWidth:0.5-2.0m
thickness:0.1-6mm
Length of mesh:10-15mm
JQ25-6.3 16 25 63 100
Expanded Metal Machine
Expanded metal mesh machine
High quality, high automatic. High working performance, high efficiency .
Introduction
This machine is used to produce expanded metal mesh for various shapes. It is also called steel sheet punching
machine, perforated mesh making machine.
Features:
1. This machine is an automatic type which processes metal plates (like steel or alumina plate ) into metal mesh.
2. the central control part is PLC which stores the program, it is matched with touch screen to display machines
currents state and adjust controlling parameters.
3. its very easy and convenient to produce meshes with different lengths just by adjusting the controlling parameters.
4. the machine has high working capacity. It can be made to order according to the input metal. Output mesh size
and well as the working speed. Anyone who is in need of the expanded machine is welcome to our company.
Our factory can supply expanded metal machine and its auxiliary machines for making of expanded metal sheets.
Type |
YJ25-6.3A |
YJ25-16 |
YJ25-25 |
YJ25-63A |
YJ25-63B |
YJ25-100 |
Depth(mm) |
max.1.0 |
max.1.0 |
max.1.5 |
max.2.5 |
max.3 |
max.4 |
Punching Width(mm) |
500 |
1000 |
1250 |
2000 |
2000 |
2000 |
Times |
180/min |
150/min |
150/min |
70/min |
45/min |
60/min |
Distance(mm) |
0-1.15 |
0-1.2 |
0-1.2 |
0-4 |
0-4 |
0-4 |
Length of Mesh(mm) |
max.20 |
max.25 |
max.30 |
max.100 |
max.200 |
max.150 |
Motor |
2.2KW |
3KW |
4KW |
11KW |
11KW |
15KW |
Weight |
0.95T |
2T |
3T |
10T |
10T |
12T |
Measurement (mm) |
950 x 570 x1780 |
1800 x 1320 x1550 |
1940 x 1600 x 2010 |
2400 x 3500 x 2300 |
2400 x 3500 x 2300 |
3600 x 2500 x 3000 |

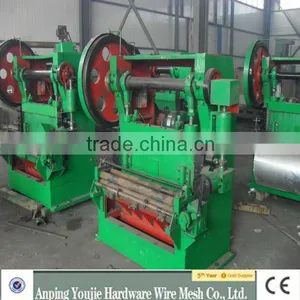

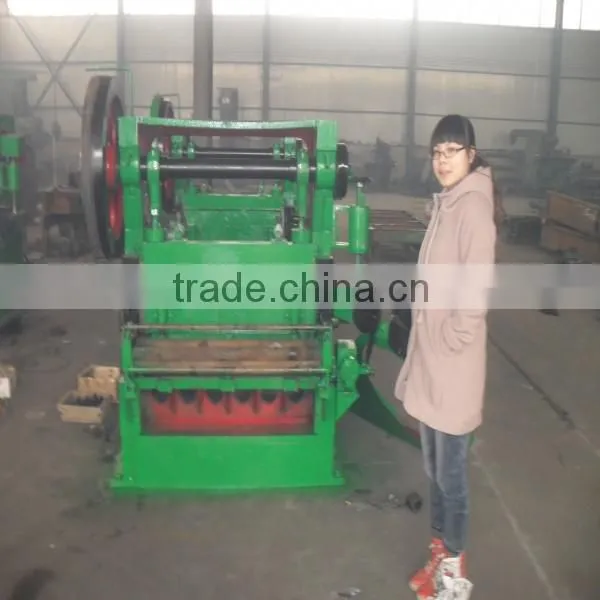

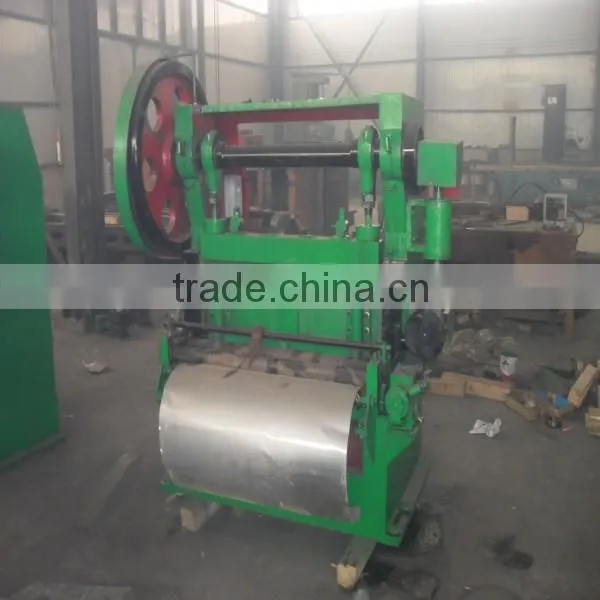

Metal Expanded Machine Pictures:
About us :
“Anping Youjie Hardware Wire Mesh Co.,Ltd” is located in Anping County, where is the largest wire mesh distribution and production center of China.and enjoys the reputation of “Chinese Mesh and Netting County". Scientific, rigorous and trustworthy have accompanied by the growth of our corporation since it was founded over twenty years ago. And now “Youjie” has became an integrated enterprise with production, R&D, sales and trade.
We are the manufactory of the Metal Expanded Machine . Our goods have the high quantiy and reasonble price. Welcome the Visit us .
Our Factory:
