Specifications
Expanded Metal MachineWidth:0.5-2.0m
thickness:0.1-6mm
Length of mesh:10-15mm
JQ25-6.3 16 25 63 100
Expanded Metal Machine
The machines are used for punching shear the cold crimped engine bed with the thickness of 0.4- 6mm the width of 2000mm Material strength of 450N/mm2The specifications of punching shear are su~eyed by the bit of TB5-20 mesh grid plate:if the TB TL are changed the punching shear knife is also changed;TB,TL are increased,the punching shear strength is reduced:TB,TL are reduced,the punching shear strength is increased In order not to damage components for the excess load.
The nominal tonnage is 63T lf TB TL are reduced the punching shear strength surpasses the nominal tonnage,you can reduce the material thickness and width.
The machines are used for punching all kinds of expand plate mesh in mon hardware,window and door,machine protecting etc.
Our factory can supply expanded metal machine and its auxiliary machines for making of expanded metal sheets.
Type |
YJ25-6.3A |
YJ25-16 |
YJ25-25 |
YJ25-63A |
YJ25-63B |
YJ25-100 |
Depth(mm) |
max.1.0 |
max.1.0 |
max.1.5 |
max.2.5 |
max.3 |
max.4 |
Punching Width(mm) |
500 |
1000 |
1250 |
2000 |
2000 |
2000 |
Times |
180/min |
150/min |
150/min |
70/min |
45/min |
60/min |
Distance(mm) |
0-1.15 |
0-1.2 |
0-1.2 |
0-4 |
0-4 |
0-4 |
Length of Mesh(mm) |
max.20 |
max.25 |
max.30 |
max.100 |
max.200 |
max.150 |
Motor |
2.2KW |
3KW |
4KW |
11KW |
11KW |
15KW |
Weight |
0.95T |
2T |
3T |
10T |
10T |
12T |
Measurement (mm) |
950 x 570 x1780 |
1800 x 1320 x1550 |
1940 x 1600 x 2010 |
2400 x 3500 x 2300 |
2400 x 3500 x 2300 |
3600 x 2500 x 3000 |

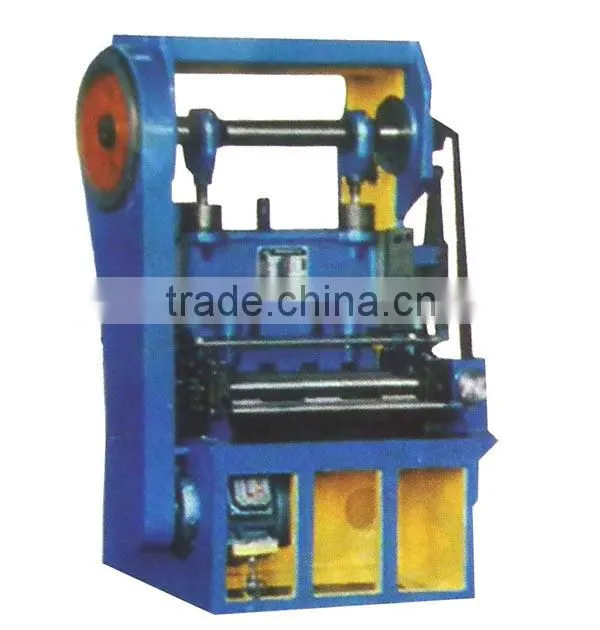

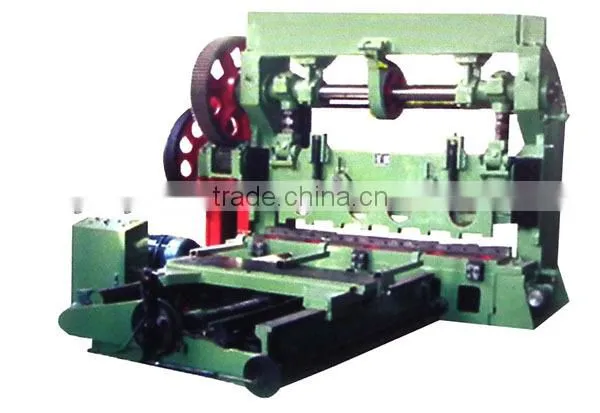

Expanded Metal Machine Pictures:
About us :
“Anping Youjie Hardware Wire Mesh Co.,Ltd” is located in Anping County, where is the largest wire mesh distribution and production center of China.and enjoys the reputation of “Chinese Mesh and Netting County". Scientific, rigorous and trustworthy have accompanied by the growth of our corporation since it was founded over twenty years ago. And now “Youjie” has became an integrated enterprise with production, R&D, sales and trade.
We are the manufactory of the Expanded Metal Machine . Our goods have the high quantiy and reasonble price. Welcome the Visit us .
Our Factory:
