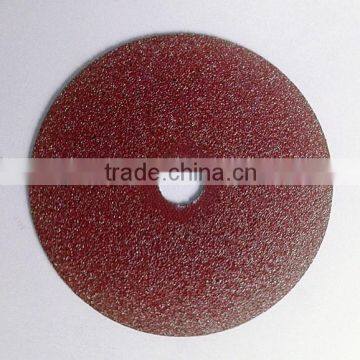

T41 super thin high speed stainless steel cut off wheels
Use for INOX, Stainless Steel, General Metal
1) Structure
Shape of super thin cutting wheel : T41 Flat shape
Raw material : brown corundum, or aluminum oxide
Binding material : resin
Reinforced material : single or double layers of fiber-glass net
Thin cutting wheel colour : black colour , green colour , rusty red colour, yellow colour
Standard: Europe En12413
Use for material: INOX, SS, Stainless Steel
Applicable machine: portable angle grinder, hand grinder
2) Application
Ideal for INOX, Stainless steel, SS tube, SS pipe, alloy steel, INOX, also against with steel bar, steel pipe, steel plate, metal steel, metal plate, iron rod etc. workpiece materials.
3) Size of stainless steel cutting wheel
| Wheel size | Speed R.P.M | Wheels / Carton |

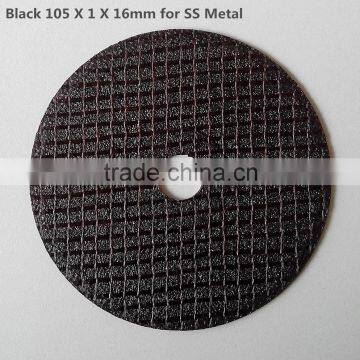

| 105 X 1.0 X 16 mm | 15200 | 800 |
| 115 X 1.0 X 22.2 mm |
13300 |
400 |
| 125 X 1.0 X 22.2 mm |
12200 |
400 |
| 125 X 1.6 X 22.2 mm | 12200 | 400 |
| 180 X 2 X 22.2 mm | 8500 | 100 |
Other size available:
- T41 Flat / T42 depressed cutting wheels for metal and stainless steel
4" 100X1X16mm, 100X2X16mm, 100X3X16mm
4.5" 115X1X22.2mm, 115X1.2X22.2mm, 115X1.6X22.2mm, 115X2X22.2mm, 115X2.5X22.2mm, 115X3X22.2mm
5" 125X1X22.2mm, 125X1.2X22.2mm, 125X1.6X22.2mm, 125X2X22.2mm, 125X2.5X22.2mm, 125X3X22.2mm
6" 150X1.2X22.2mm, 150X1.6X22.2mm, 150X2X22.2mm, 150X2.5X22.2mm, 150X3X22.2mm
7" 180X1.2X22.2mm, 180X1.6X22.2mm, 180X2X22.2mm, 180X2.5X22.2mm, 180X3X22.2mm
9" 230X2X22.2mm, 230X2.5X22.2mm, 230X3X22.2mm
10" 250X2X25.4mm, 250X2.5X25.4mm, 250X3X25.4mm
12" 300X2.5X25.4mm, 300X3X25.4mm
14" 350X2.5X25.4mm, 350X2.8X25.4mm, 350X3X25.4mm, 350X3.2X25.4mm
14" 350X2.5X32mm, 350X2.8X32mm, 350X3X32mm, 350X3.2X32mm
14" 355X2.5X25.4mm, 355X2.8X25.4mm, 355X3X25.4mm, 355X3.2X25.4mm
14" 355X2.5X32mm, 355X2.8X32mm, 355X3X32mm, 355X3.2X32mm
16" 400X2.5X25.4mm, 400X2.8X25.4mm, 400X3X25.4mm, 400X3.2X25.4mm
16" 400X2.5X32mm, 400X2.8X32mm, 400X3X32mm, 400X3.2X32mm
- T27 depressed Grinding wheels for metal and stainless steel
4" 100X4X16mm, 100X5X16mm, 100X6X16mm
4.5" 115X4X22.2mm, 115X5X22.2mm, 115X6X22.2mm
5" 125X4X22.2mm, 125X5X22.2mm, 125X6X22.2mm
6" 150X4X22.2mm, 150X5X22.2mm, 150X6X22.2mm
7" 180X5X22.2mm, 180X6X22.2mm, 180X7X22.2mm
9" 230X6X22.2mm, 230X7X22.2mm
Packing: In inner box, then in carton. Specialized packing available if required.
Send Inquiry to Us:
Contact Person: Ms.Rita
Ph./ whatsapp: +86 150 3834 6863
Skype: keendee-info
QQ: 486380215
E-mail: info ( @ )
Homepage: www . keendee . com
Alibaba: keendeeabrasive.en.china.cn
A. Safety Recommendations
- Wear protective goggles
- Wear protective gloves
- Wear ear protectors
- Wear dust respirator
- Observe safety recommendations
- No barehanded or hand-hold operation
- No wet grinding
- No side grinding
B. Mounting System
Never use Two different diameter flanges cutting or grinding, must always keep the two flanges with same outside diameter and support area.
C. Abrasive wheels conveying and storage
1. The abrasive grinding wheel and cut off wheel must be conveyed with complete package to avoid collision and vibration.
2. Store wheels in an area that is dry and protected against damage from impack, solvents (e.g. alkaline), high humidity, and extreme heat or cold.
3. Store wheels horizontally. Oblique or vertical storage will cause damage to the wheel, so does high pressure on surface.
4. Avoid direct contact with ground. Dampness isolating cusion board should be placed between wheel and the ground. Keep the distance between the cushion board and the ground 10-15cm, and the pilling height shall not exceed 1.5m.
5. Arrange wheels so that older ones will be chosen before new ones.
6. If they have been stored for over one year, the products must be used after the rotation intensity test and apperance check.
D. Mounting and working
1. Ensure that wheels are mounted before using:
- by qualified persons
- according to the manufacturer's instructions
- only on the machines from which they were designed
2. Before mounting a wheel:
- inspect and test it to ensure that it is safe to use
- check that it is marked to indicate the maximum speed at which it can be used
- turn off and lock out the machine
3. When mounting a wheel, make sure that:
- the machine spindle speed does not exceed the speed which marked on the wheel
- the wheel fits freely, but not loosely on the spindle
4. Use flanges that:
- are equal in diameter and have equal bearing surfaces
- are at least one-third the diamter of the wheel
- have bearing surfaces that are true and free from burrs
- are properly undercut (unless it is a single flange used with a threaded-hole wheel)
5. Where required, use blotters that are free of creases, folds and dirt. Blotters should be just larger than the flanges.
6. Tighten the clamping nuts just enough to hold the wheel firmly.
7. Don't let screws for inserted nut mountings touch the abrasive part of the wheel, use screws taht are just long enough to engage a sufficient length of thread.
8. Make sure that the protective hood is properly adjusted and secured, and that is encloses the wheel as closely as the work will permit.
9. Clean the bearing surfaces of the wheel, flanges and spindles so that the clamping pressure is evenly distributed.
10. Check the speed of the spindle to make sure that it is not too fast for the type and size of wheel.
11. Make sure that the hole in the wheel bushing is the right size for the spindle (neither too small nor too large)
12. Tighten the spindle and nuts just enough to keep the wheel from moving out of position between the flanges.
13. Do not use cutting wheels as grinding wheels.
