Hexagonal Wire Mesh/gabion Box (manufacturer)

FOB Price

US$ 300 - 1,000 / Ton

10 Tons(Min. Order)

Port Tianjin Port
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Material	Other, steel wire, stainless steel wire,PVC coated wire and so on
Type	Reinforced Mesh	Application	Protecting Mesh
Weave Style	Plain Weave	Wire Diameter	1.8mm-4.5mm, BWG16~BWG27
Technique	Woven	Model Number	BWG16~BWG27
Brand Name	YOUJIE

Product Description

Specifications

Hexagonal Wire Mesh
1.Material:Galvanized Wire,PVC Coated Wire
2.Good service and competitive price
3.Wire Diameter:0.5mm~5mm

Hexagonal Wire Mesh

Product Feature:Hexagonal Wire Netting is also known as Chicken Netting, or Hexagonal Wire. AF(china) wire mesh factory produces hexagonal wire mesh in three varieties: galvanized iron, PVC coated and stainless steel.
Wire Materials : Quality mild steel wire, stainless steel wire, etc.
Weaving Patterns: Straight twist, reverse twist, double twist.
Process : Galvanized after weaving or galvanized before weaving
Finish of Hexagonal Wire Netting: Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.
General Use: Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.

1.Galvanized hexagonal wire mesh

Galvanized hexagonal wire netting
mesh			Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)	Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16

2.PVC Coated Hexagonal Wire mesh

PVC Coated Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM	-	-
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M

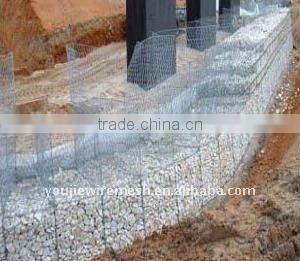

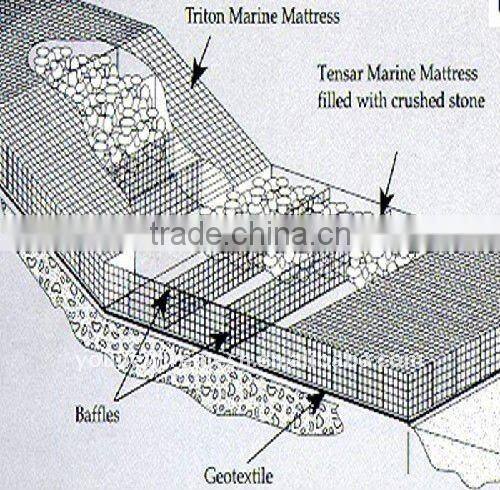

3.Gabion box applications:Control and guide of water or flood;Flood bank or guiding bank ;Preventing of rock breaking;Water and soil protection;Bridge protection ;Strengthening structure of soil;Protection engineering of seaside
