Product Details
Place of Origin: | Henan, China | Brand Name: | Keendee or OEM brand | Model Number: | T41 |
Shape: | Flat-Shaped | Abrasive: | Corundum | Bonding Agent: | Resin |
Hardness: | S, Q | Viscosity: | Proper | Size: | 4"-16" |
Product Description

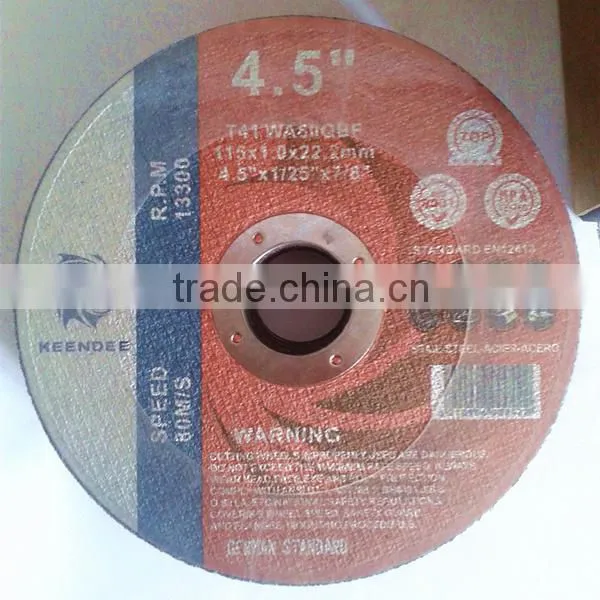

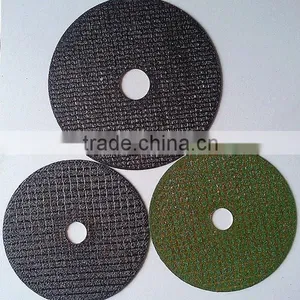

Reinforced cutting discs, cutting wheels, cut off wheels
A). Type / Shape range:
- T41 flat / straight shape cutting disc cutting wheel
- T42 depressed center shape cutting disc cutting wheel
- T27 depressed center shape grinding disc grinding wheel
- T29 flap disc
B). Specification:
1. T41 T42 Cutting disc / wheel size:

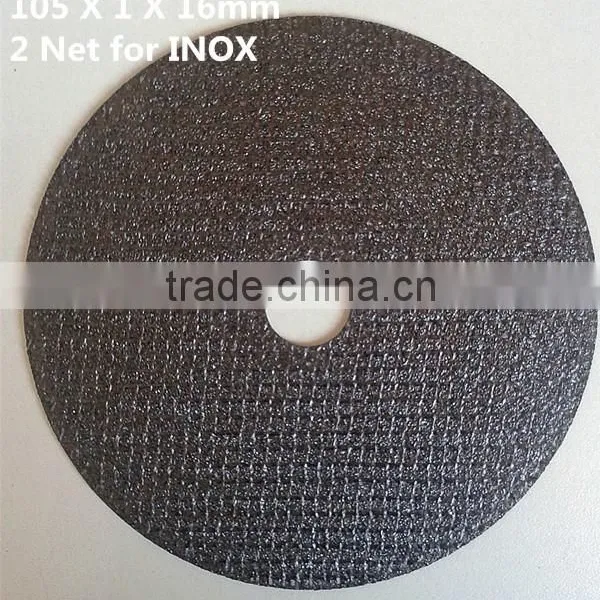

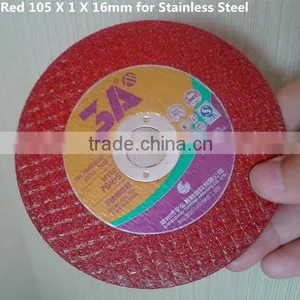

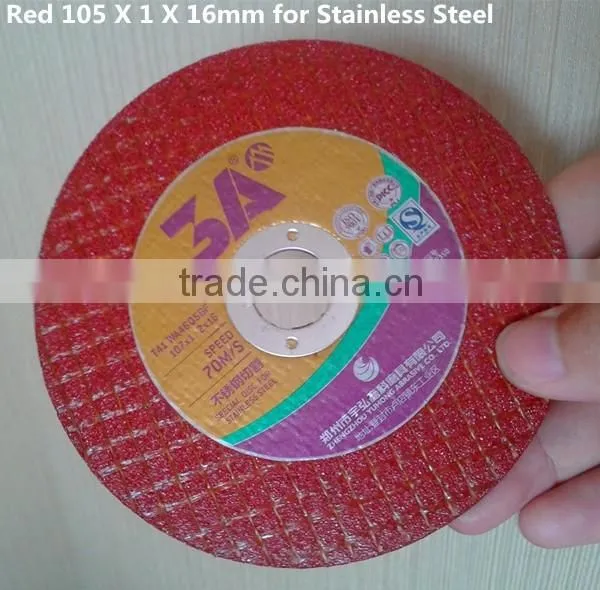

105x1x16mm, 105x1.2x16mm, 105x2x16mm, 100x2.5x16mm, 100x3x16mm
115x1x22.2mm, 115x1.5x22.2mm, 115x2x22.2mm, 115x2.5x22.2mm, 115x3x22.2mm
125x1x22.2mm, 125x1.5x22.2mm, 125x2x22.2mm, 125x2.5x22.2mm, 125x3x22.2mm
150x2x22.2mm, 150x3x22.2mm
180x2x22.2mm, 180x2.5x22.2mm, 180x3x22.2mm

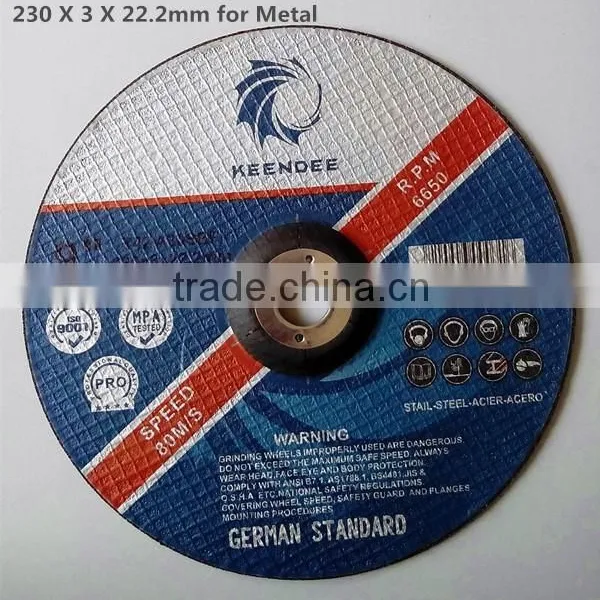

230x2.5x22.2mm, 230x3x22.2mm
250x2.5x25.4mm, 250x3x25.4mm
300x2.5x25.4mm, 300x3x25.4mm

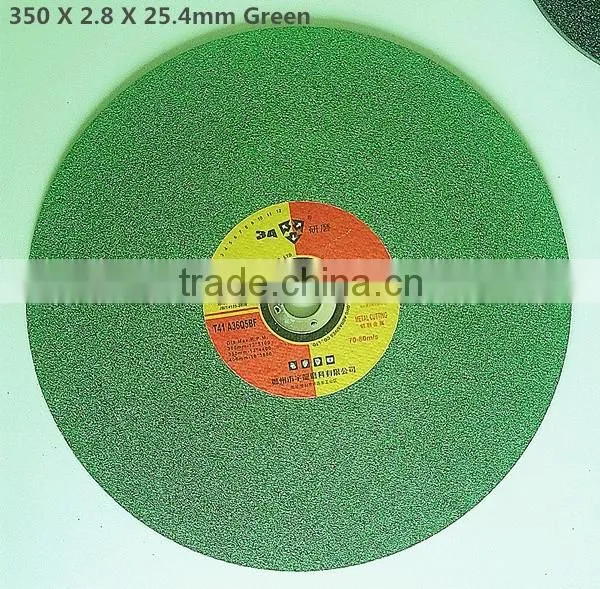

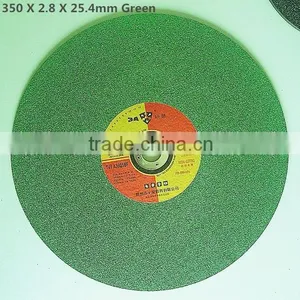

350/355x2.5x25.4mm, 350/355x3x25.4mm, 350/355x3.2x32mm
400/405x3x25.4mm, 400/405x3.5x25.4mm, 400/405x4x32mm
2. T27 Grinding disc /wheel size:
100x4x16mm, 100x5x16mm, 100x6x16mm
115x4x22.2mm, 115x6x22.2mm, 125x4x22.2mm, 125x5x22.2mm, 125x6x22.2mm
150x6x22.2mm, 180x6x22.2mm, 180x7x22.2mm, 230x6x22.2mm
3. T29 flap disc size:
100x16mm, 125x22mm, 180x22mm
C). Structure and Feature
Linear speed: 80m/s
Raw materials: brown aluminum oxide / corundum, white aluminia, crystle
Bonding material: Bakelite resin / phenolic resin
Reinforced layers: fiber glass nets, double net or 2.5nets or 3nets.
Usage: use for metal, steel, cast iron, carbon steel, stainless steel, INOX profiles.
Packing details: blister wheels in inner box then in carton. Pallet or customized packing available.
Standard: MPA/ En12413/ ISO9001
Origin place: Zhengzhou city Henan , China
OEM service is availiable.
D). Send inquiry to:
Zhengzhou Yuhong Abrasive Co.,Ltd
INFO (AT) KEENDEE (DOT) COM
Contact Us
- Zhengzhou Yuhong Abrasive Co., Ltd.
- Contact namePeter Li
- Phone0086-371-63395561
- AddressWest Of Wugang Village, Ludian Town, Dengfeng
