96v 20Ah A123 Battery Pack for Electric Scooter/e-bike

96v 20Ah A123 Battery Pack for Electric Scooter/e-bike photo-1
96v 20Ah A123 Battery Pack for Electric Scooter/e-bike photo-2

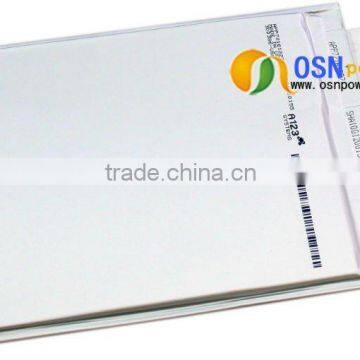

96v 20Ah A123 Battery Pack for Electric Scooter/e-bike photo-3
96v 20Ah A123 Battery Pack for Electric Scooter/e-bike photo-4
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OSN
Model Number:
12320-9620
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name OSN
Model Number 12320-9620
Type Other, lifepo4
Nominal Voltage Other, 102.4V
Size Other, 340*260*220mm
Nominal Capacity 20Ah
Applications

EV, Power Storage, Emergency backup, UPS...

electrical motorcycle,ebike, e-scooter, e-wheelchair, e-golf cart,


medical equipment, power tool, electric unicycle etc.

Product Description

KEY FEATURES AND BENEFITS

+ Made of powerful A123 20Ah

+ High current charger optional;

+ With advanced BMS (Battery Management System)

QC (Quality Control):
Automatic testing for performances of battery packs before delivery;
Each battery pack with unique series number and barcode for traceability

Specifications
Model Number
12320-9620
Battery Chemicals
Lifepo4
Nominal Voltage
102.4V
Nominal Capacity
20Ah
Cell Inside
A123 20Ah
Configuration
32S1P
BMS inside
BMS-L32S8080-638
Standard Charging Current
4A (0.2)
Continuous Discharging
According to customers' requirement
Fully charged Voltage
116.8V (3.65V per cell)
Charging Cut-off Voltage
124.8V (3.9V per cell)
Discharging Cut-off voltage
64V (2.0V per cell)
Dimensions (L*W*H)
340*260*220mm
Weight
19.36Kg
Working Temperature (Charging)
0°C ~45°C
Working Temperature (Discharging)
-20°C ~55°C
Cycle Life
2000times
CELLS:
Quality Lithium-ion cells with high power and energy density;
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
No memory effect, low self-discharge rate;
Environment-friendly;
Long cycle life to over 2000 times or 2-3 years
TECHNIQUES:
Automatic spot-welding techniques;
Exquisite workmanship
Quality alumium-cased charger
Charger with fans
Related Products

A123 battery pack for motorcycle starting

Customized A123 26650 battery packs


A123 systems 26650 ANR 26650M1A cells

Our Company

Located in a Chinese high-tech city of Shenzhen, OSN POWER TECH LIMITED is a pioneer in R&D, manufacturing of Lifepo4 and other Li-ion batteries. Since its founding in 2008, OSN has always insisted on providing total power solutions to customers in the field of electric vehicles / power tools / backup power / energy storage power/ smart device with strong expertise and advanced automation equipment.

OSN has been awarded as Hi-Tech Company, and OSN batteries have been approved by UL, CE, RoHs, UN38.3 and compliant with many other international standards. With the quality control goal of “Zero Defects”, we have developed an original digital automatic measuring & analytic system and process statistical control system.

Base on quality products, attractive design, reasonable price and excellent services, we have won praises from thousands of satisfied customers all over the world.

Multi - channel automatic sorting machine


Matching of cells according to voltage and inner resistance

Automatic welding Fixture


Automatic welder


QC inspection


OSN working staff


Certifications
Packing & Delivery

Packing

Compliant with Lithium battery package regulation for overseas transportations

Delivery

+sea shipment (about 1 month)

+air shipment to major airports all over the world

+ UPS, DHL,FedEx,EMS,etc
