Specifications
Lifepo4 Charger 48V 10A High Power!!!1.small volume, light weight .
2. stable perform

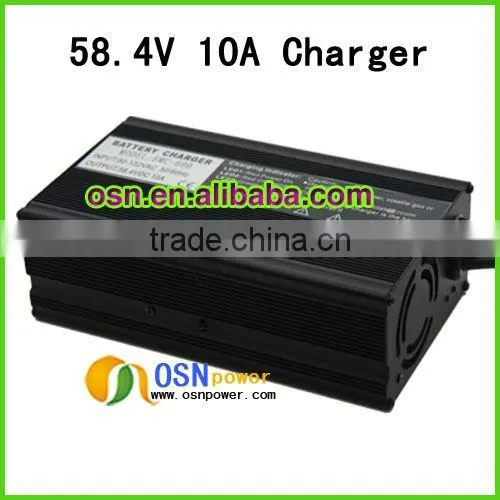

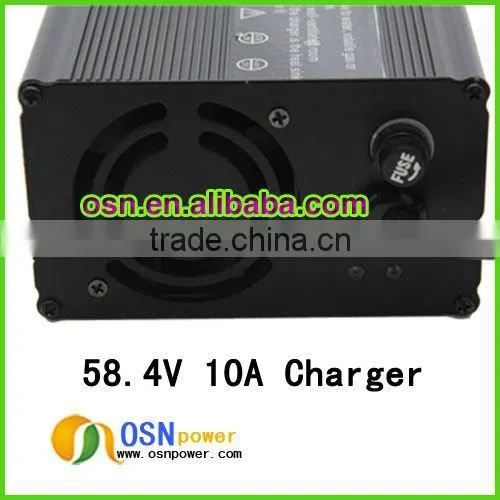

Lifepo4 Battery Pack Charger 48V 10A High Power!!!
Apply to: Lithium Ion Batteries, LiFePO4 Batteries and Lead Acid Batteries
Technical Target:
AC Input Voltage Range |
AC85V~AC265V AC90V~132V AC200V~264V for option |
AC Input Frequency AC |
45~65 Hz |
AC Power Factor AC |
≥0.98 |
Full Load Efficiency |
≥93% |
Mechanical Shock & Vibration Resistance Level |
Conformance to SAEJ1378 Standard |
Operating Temperature |
-40°C~+55°C |
Storage Temperature |
-40°C~+100°C |
Weight |
2.5Kg |
Mechanical Dimensions |
220×120×70mm |
Model:
12V25A |
24V18A |
36V12A |
48V10A |
60V8A |
72V3A |
Charging Cycle:
If the LED1 is ON ( Red ), it shows that input power is ON.
Stages |
Condition Mode |
Current |
Voltage |
LED2 Display |
Stage 1 |
Constant Current mode(CC) |
Current Maximum |
to Charge Voltage |
Red |
Stage 2 |
Constant Voltage mode(CV) |
Reduces from Maximum Current |
Holds at Charge Voltage |
Red |
Two colors in one LED2:
LED2 shows the charging status. The bicolour LED shows Red when charging and changes to Green when the battery is fully charged.
Reliability:
Mean Time between failures (MTBF):
30,000 power-on-hours (POH) or greater. This translates into 10 years of everyday operation of 8 hours.
