Home > Products > BMS/PCM (Battery Management System) > 4S 100A BMS for LiFePO4 12V/12.8V battery pack

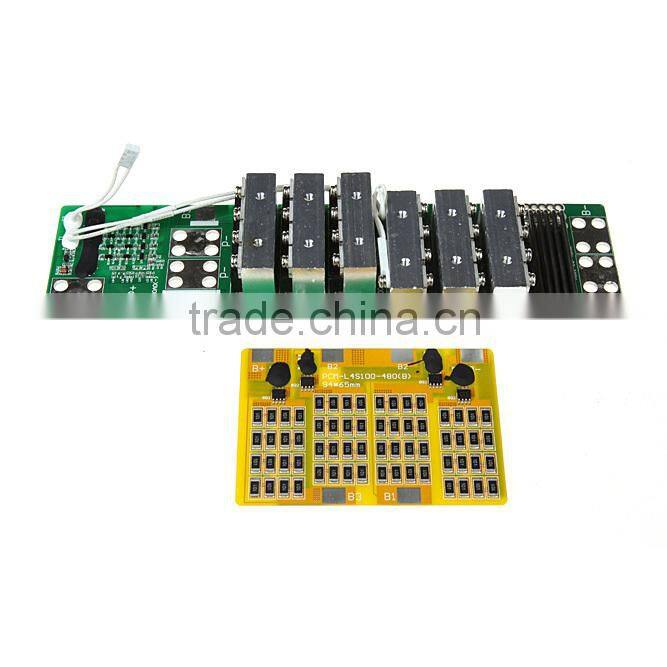

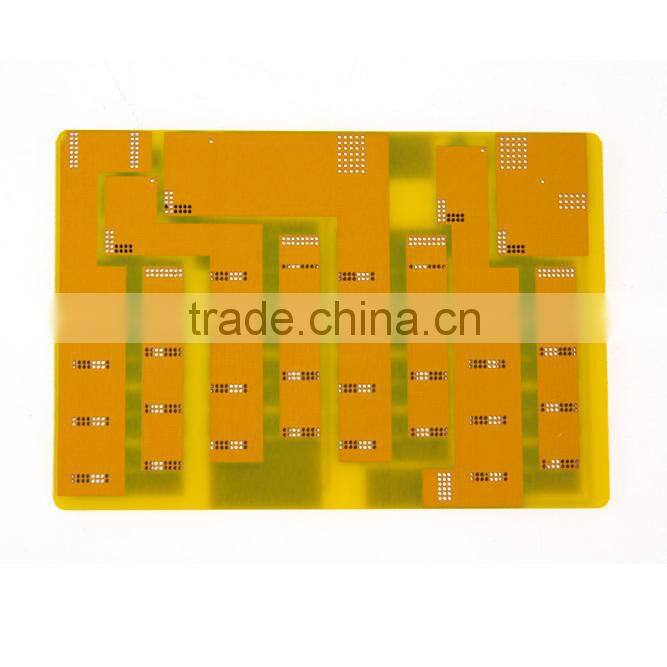

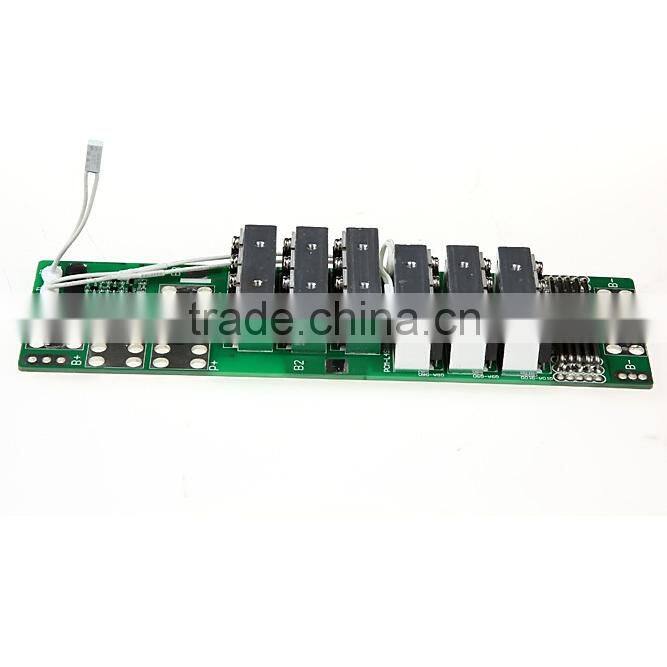

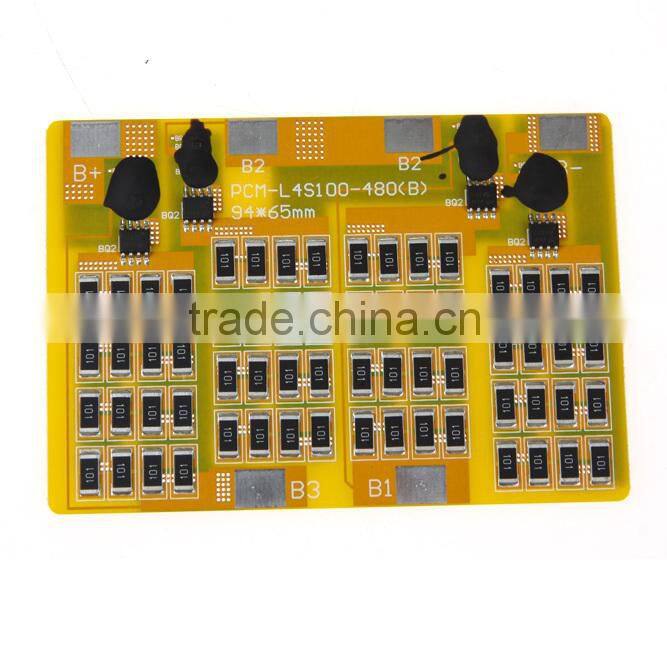

4S 100A BMS for LiFePO4 12V/12.8V battery pack
- 10000 Piece / Pieces per Month
- Credit Card
Product Details
Place of Origin: | China | Brand Name: | OSN Power | Model Number: | OSN-4S100100-BMS |
Product Description
Specifications
4S 100A BMS/PCB/PCM for LiFePO4 12V/12.8V battery packContinuous/Peak Discharge Current: 100A/200A
Charge Current:100A
BMS Specifications For 4S /12.8V LiFePO4 Battery Pack | |||
Model: OSN-4S100100-BMS | |||
No. | Test item | Criterion | |
1 |
Voltage | Charging voltage | DC:14.4V 3.6V/Cell |
Balance voltage for single cell | 3.60+0.025V | ||
Balance current for single cell | 576+20mA | ||
2 | Current | Current consumption for single cell | ≤20μA |
Maximal continuous Charging current | 100A | ||
Maximal continuous Discharging current | 100A | ||
3 | Over charge Protection | Over charge detection voltage | 3.90+0.05V |
Over charge detection delay time | 0.5—2S | ||
Over charge release voltage | 3.80+0.1V | ||
4 | Over discharge protection | Over discharge detection voltage | 2.00+0.1V |
Over discharge detection delay time | 10-200mS | ||
Over discharge release voltage | 2.30+0.1V | ||
5 | Over current protection | Over current detection current | 220+30A |
Detection delay time | 5ms—60mS | ||
Release condition | Cut load, Automatic Recovery | ||
6 | Short protection | Detection condition | Exterior short circuit |
Detection delay time | 200-800us | ||
Release condition | Cut load, Automatic Recovery | ||
7 | Resistance | Protection circuitry (MOSFET) | ≤20mΩ |
8 | Temperature | Operating Temperature Range | -40~+85°C |
Storage Temperature Range | -40~+125°C | ||
9 | Size |
| L222*W65*T25mm |
10 | Weight |
| 0.372kg |
