Home > Products > Battery pack 24V,36V,48V > 24V 45000mAh high power rechargeable battery pack 8S1P

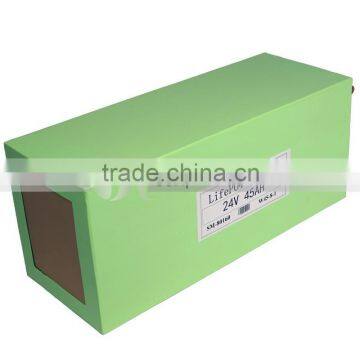

24V 45000mAh high power rechargeable battery pack 8S1P

FOB Price

Negotiable / Pack

3 Packs(Min.Order)

Supply Ability 5000 Pack / Packs per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OSN
Model Number	OSN-2445	Composed Type	Other, 8S1P
Type	Other, Lifepo4	Components	Other, Lifepo4
Size	400149171mm	Voltage	25.6V
Weight	14.58kg	Nominal Capacity	45AH
Application	E-Bike, E-Scooter, EV battery

Product Description

24V 45000mAh high power rechargeable battery pack 8S1P

LiFePO4 Battery has long cycle life (up to 2000 cycles) and good availability. Our LiFePo4 Lithium-ion technology utilizes natural, phosphate based material and offers the greatest combination of performance, safety, cost, reliability and environmental characteristics. Moreover we can modify the design of battery packs to provide the best solution to satisfy our customer's needs.

Specification:

Items	Parameters
Model	OSN-L45180A-2445
Material	Lifepo4
Nominal Voltage	25.6V (3.2V any single cell)
Nominal Capacity	45AH
Cells inside	Lifepo4 45Ah
Configuration	8S1P
BMS inside	BMS-L8S8005-A03
Charging Current	· Standard Charging: 9A(0.2C) · Max. Charging:22.5A(0.5C)
Max. Discharging Current	· Max. Continuous Discharging: 80A · Max. Peak Discharging: 160A
Cut-off Voltage	· Fully charged: 29.2V (3.65V any single cell) · Charging Cut-off: 31.2V (3.9V any single cell) · Discharging Cut-off: 16V (2V any single cell)
Dimensions (LWH)	400149171mm
Net Weight	14.58 kg
Output Connector	A pair of 8AWG wire ( Approx. 260mm length )
Input Connector	XLR connector
Working Temperature	· Charging: 0°C ~50°C · Discharging: -20°C ~60°C
Storage Temperature	· ≤1month: -10–45°C · ≤3month: 0–30°C · ≤6month: 20±5°C
Life Cycle	>2000 cycles to 80% with 100% DOD under normal temperature
Application	motorcycle,e-bike, e-scooter, e-wheelchair, e-golf cart, medical equipment, power tool, electric unicycle etc
