LiFePO4 15V 2.3Ah Battery for Consumer Electronic

Specifications

1. LiFePO4 E-bike battery, E-scooter battery
2. EV battery pack
3. Long cycle 2000 times
4. High safety never explode

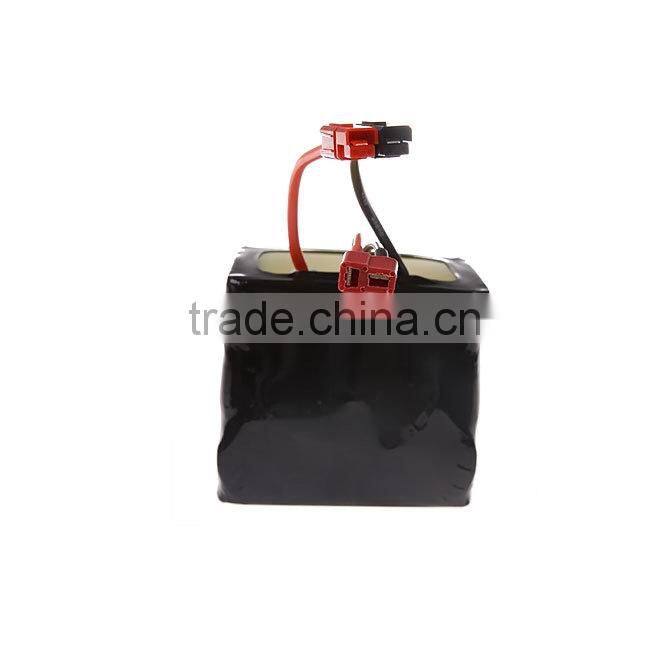

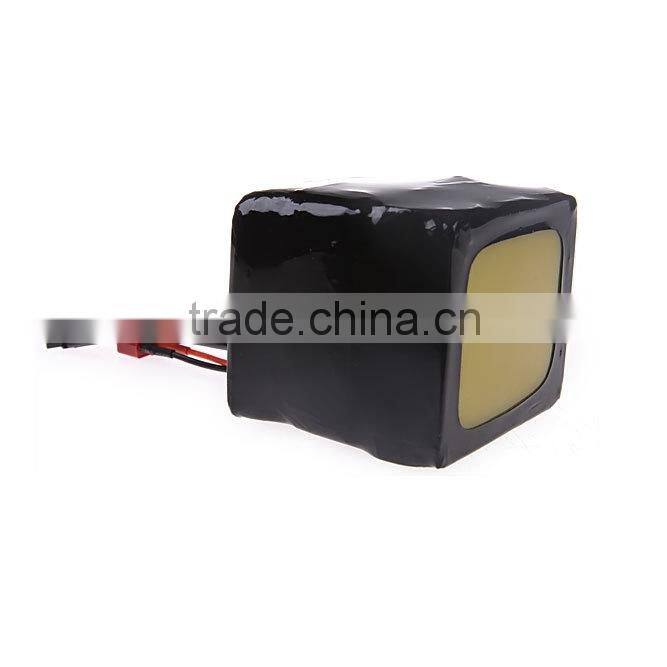

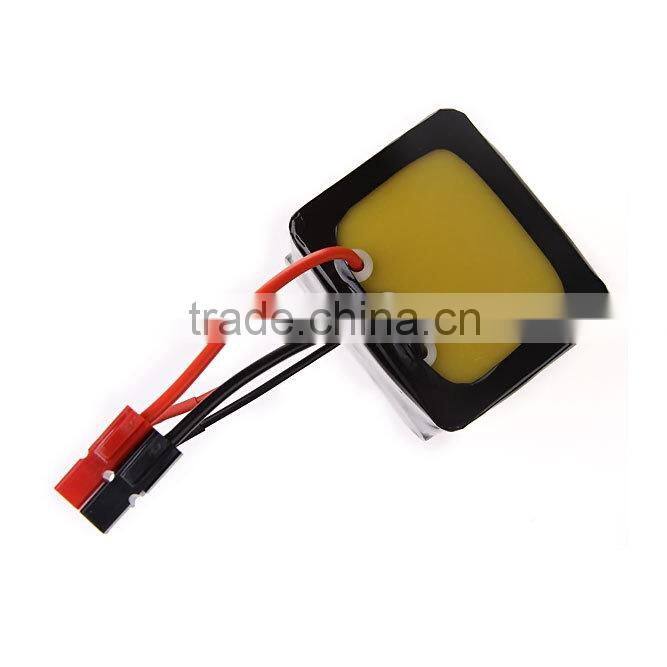

 LiFePO4 15V 2.3Ah battery for consumer electronic







Model NO.: 123261-1523



Material : LiFePO4



Nominal Volt : 16.5V (3.3V any single cell)



Nominal Capacity : 2.3AH

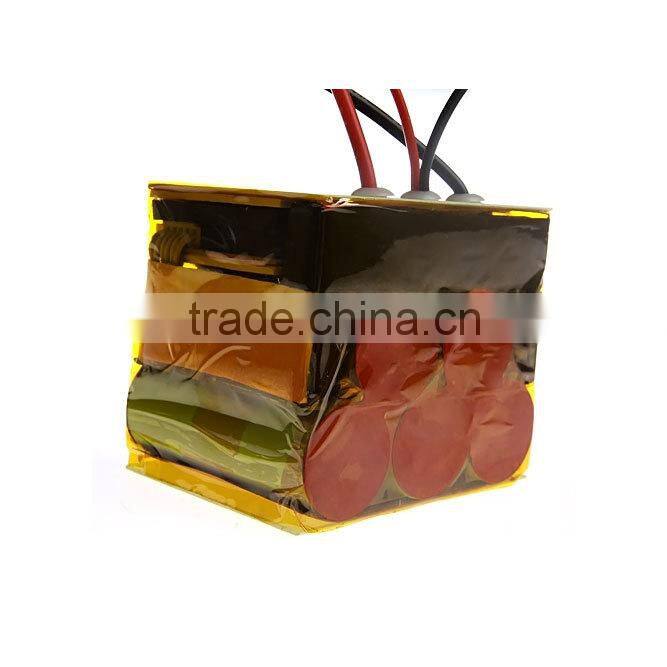

Configuration: 5S1P (A123 26650)



Weight: 0.487kg



Dimension: 82x68x70mm (with 25A constant BMS built in)



Fully-charged pack Voltage: 18.25V (3.65V any single cell)



Charge cut-off  Voltage:19.5V (3.9V any single cell)



Discharge cut-off  Voltage: 10V (2V any single cell)



Standard charge Current: 0.5-1A



Max. Charge Current: 1.8A



Continuous Discharge Current: 25A



Peak Discharge Current: 50A



Working Charge Temp: 0~50°C



Working Discharge Temp: –20°C~50°C



Storage Temperature: –20°C~50°C



Application: Electric Tools, ect.



Circle life: 2000 cycles to 80% with 100% DOD under normal temperature
