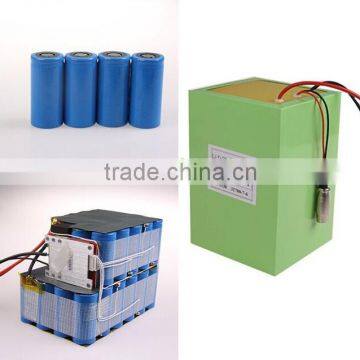

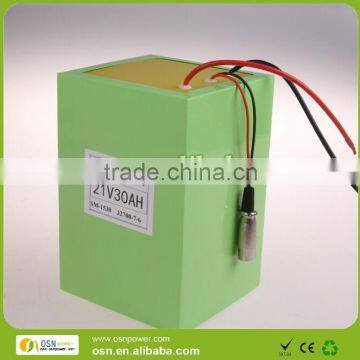

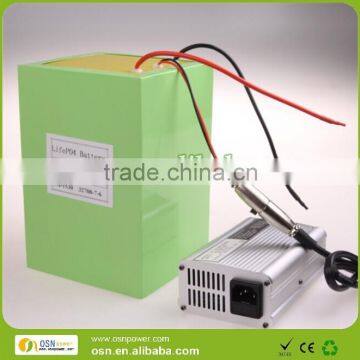

Lithium Ion Battery 21V Lifepo4 Rechargable Battery Pack 30Ah

Items

             Parameters

Model

326-2130

Material

Lifepo4

Nominal Voltage

22.4V (3.2V any single cell)

Nominal Capacity

30AH

Cells inside

Lifepo4 32700

Configuration

7S6P

BMS inside

BMS-L7S1510-250C

Charging Current

·  Standard Charging: 5A

·  Max. Charging:10A

Max. Discharging Current

·  Max. Continuous Discharging: 15A

·  Max. Peak Discharging: 30A

Cut-off Voltage

·  Fully charged:      25.55V  (3.65V any single cell)

·  Charging Cut-off:   27.3V (3.9V any single cell)

·  Discharging Cut-off: 14V  (2V any single cell)

Dimensions (L*W*H)

135*147*216mm

Net Weight

6.7 kg

Output Connector

wire length: About 220mm

Input Connector

XLR connector

Working Temperature

·  Charging:   0°C ~50°C

·  Discharging: -20°C ~60°C

Storage Temperature

·  ≤1month:  -10–45°C

·  ≤3month:    0–30°C

·  ≤6month:   20±5°C

Life Cycle

>2000 cycles to 80% with 100% DOD under normal temperature

Application

motorcycle,e-bike, e-scooter, e-wheelchair, e-golf cart, medical equipment, power tool, electric unicycle etc
