WELDING ELECTRODE

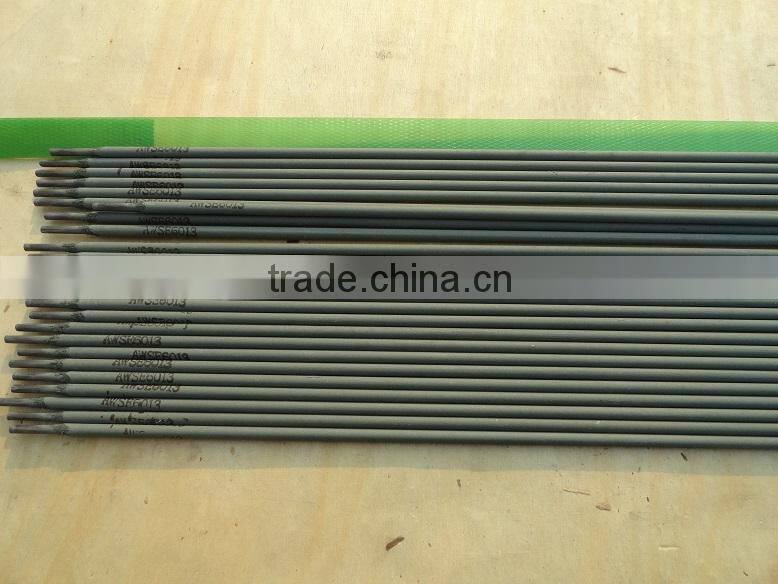

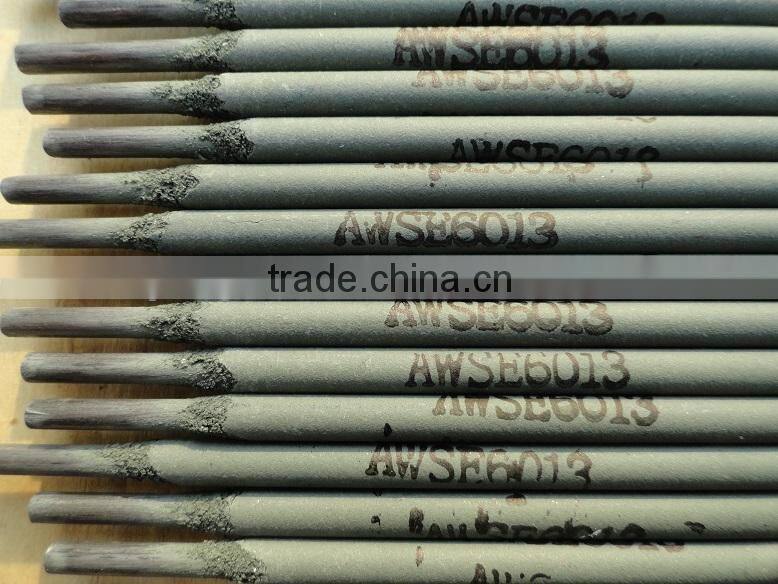

AWS E6013 Welding Electrodes
Description:
AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It has excellent welding technological properties . The arc is stable . The spatter is small. The slag viscosity is moderate. It can be used freely . The slag is easy to clean . The welded seam is smooth and fine and easy to restrike the arc.
Application:
Suitable for welding sheet metal structure made of low-carbon steel , such as ships, vehicles, building, and general machinery.
Chemical Composition of Wire(%):
| C | Mn | Si | S | P |
| ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
| Test Item | σb(MPa) | σc(MPa) | δs(%) | AKV(J) |
| Guarantee Value | ≥420 | ≥330 | ≥17 | - |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |
AWS E7018 Welding Electrodes
Description:
AWS E7018 is low-hydrogen potassium coating carbon steel welding rod and can be used on AC. or DC . It has excellent welding technological properties. It can be used various composition . Its evident trait is composed of Fe power and can reduce welding layer.
Application:
Suitable for welding important structures made of low alloy steel.
Chemical Composition of Wire(%):
| C | Mn | Si | S | P |
| ≤0.12 | ≤1.6 | ≤0.75 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
| Test Item | σb(MPa) | σc(MPa) | δs(%) | AKV(J) |
| Guarantee Value | ≥490 | ≥400 | ≥22 | ≥27(-30℃) |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 60-90 | 90-120 | 120-150 | 170-200 | 210-250 |
