ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve

Hebei Spango Hardware Manufacturing Co., Ltd.
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve thumbnail-1
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve thumbnail-2
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve thumbnail-3
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve thumbnail-4
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve thumbnail-5
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve thumbnail-6
ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve photo-1

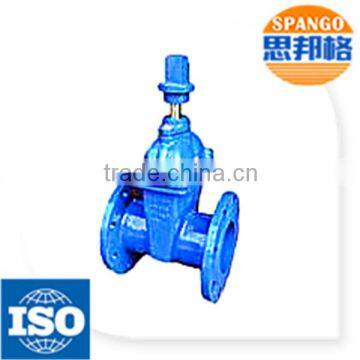

ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve photo-2

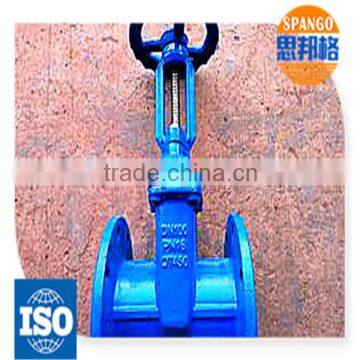

ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve photo-3

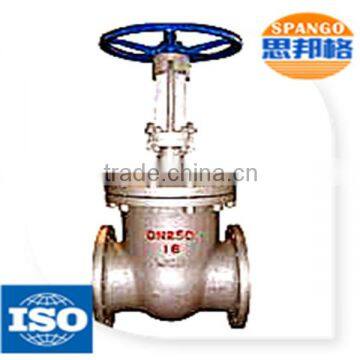

ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve photo-4

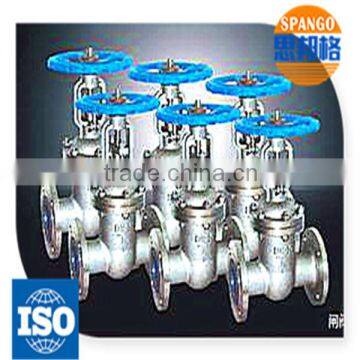

ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve photo-5

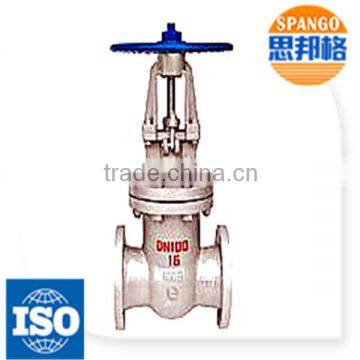

ANSI Standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB Gate Valve photo-6
US$ 10 - 1,000 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Gate
Pressure Medium Pressure
Power Manual
Material Casting
Temperature of Media Medium Temperature
Media Water
Port Size Standard, 2"-48"
Place of Origin Hebei, China
Model Number Gate Valve
Brand Name spango
Application General
Product Description



Product Description



API600, API6D, DIN 3202 Cast & Forged Gate Valve Flanged/SW/NPT/BW Ends Connection in Forged and Cast Body are designed and manufactured strictly to International Standards API 600, ASME B16.34 or DIN3202, Featured with compact structure & Low emission service.



» Standards Compliance:

- Design & Manufactured to API 600, ASME B16.34 or DIN3202

- P.T Ratings to ASME B16.34

- Face to Face dimensions to ASME B16.10

- Flanged Ends to ASME B16.5, ASME B16.47

- Butt-weld Ends to ASME B16.25

- Valves Marking to MSS SP-25

- Inspect & Tested to API 598



» Sizes Ranges from 1 1/2” thru 60”

» Pressure Ratings from Class 150 to Class 1500, PN16 to PN260

» Structured in Bolted Cover, Outside Screw and York, Optional Non-rising Stem

» Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved

» Body Materials available in Carbon Steel A216 WCB, WCC, Low Carbon Steel LCB, LCC, Alloy Steel A217 WC6, WC9,  Stainless Steel A351 CF3, CF8, CF3M, CF8M, Duplex & Super Duplex Steel A890 GR. 4A, GR. 5A, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.

» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials

» Actuations can be equipped with Handwheel, Gear Devices, Electric / Pneumatic or Hydraulic Actuators

» Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.



Gate Valves from Vatac is not only limited to those standard design, but also those special items with Bonnet / Stem Extension to meet Cryogenic Service Conditons, please feel free to contact with Vatac Sales team or your local Representatives for other optional special requirements



Conform to API 600, ASME B16.34,  They are tested according to API 598, and marked as per MSS SP-25.

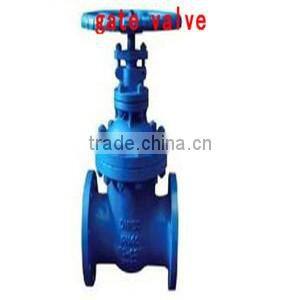

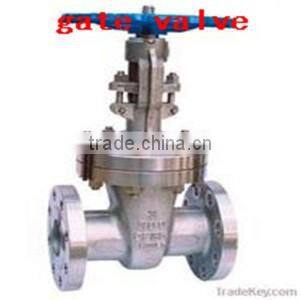

ANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valveANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valve

OTHER HOT SALE PRODUCTS:

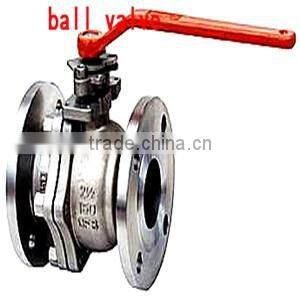

BALL VALVE

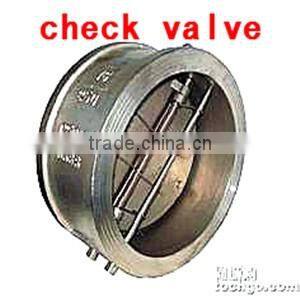

SINGLE PLATE CHECK VALVE

SWING CHECK VALVE

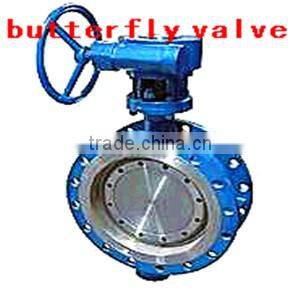

DOUBLE FLANGE BUTTERFLY VALVE

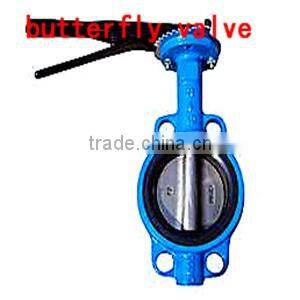

WAFER TYPE BUTTERFLY VALVE

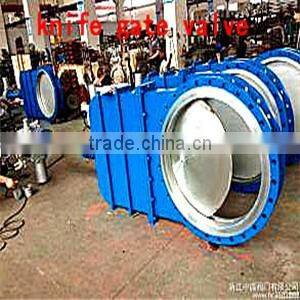

KNIFE GATE VALVE

ANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valveANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valveANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valveANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valveANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valveANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valve

Packaging & Shipping



Packaging:Plywood box or according to customers' need

Delivery:7-30 days after deposit

Our Services



Creditable
We always insist on the policy of "Being Honest and Creditable" and the policy of Reputation First, as we believe this is the way to build our brand.
Emphasizing Scientific Technology
Scientific technology can bring benefits and markets. We sincerely hope to seek mutual benefit and development with friends.
Quality First
We regard quality as basic factor for enterprise development. It is our constant pursuit to create excellent quality products.
Service Utmost
Sincerity is our service tenet while Customer Satisfaction is the standard of our service.
Company Information



HEBEI SPANGO HARDWARE MANUFACTURING CO.,LTD established in 2000, is a large-scale and professional manufacturer integrating the production and sale, specializing in products of metal wire, wire mesh, fence, welding materials, machines, agriculture tools, nails, Pipe, Etc.

We have got ISO9001-2000 international quality management system certification,With reliable quality, reasonable price and timely delivery, Today, our products have been successfully exported to more than 50 countries and regions.

Specific Products:
Hot dipped galvanized steel wire, cable armouring wire, Welding wire, welding rod, Electro galvanized wire, Zn-al alloy wire, Black annealed wire, Pvc coated wire, Cut wire, U-type binding wire, stainless steel wire and mesh; Hexagonal wire netting, Gabion box, Razor wire, wire mesh fence, Chain link fence, welded wire mesh, Expanded metal, perforated metal, fiberglass mesh, window screen; common nails, coil nails, umbrella head roofing nails, concrete nails; Steel pipe, Etc.

Our Belief of enterprise:sincere service, quality first.
We sincerely welcome to inquire, We will offer our best quality and competitive price for a long-term business relation.ANSI standard 150lbs 300lbs 600lbs 1 1/2"-24" WCB gate valve
