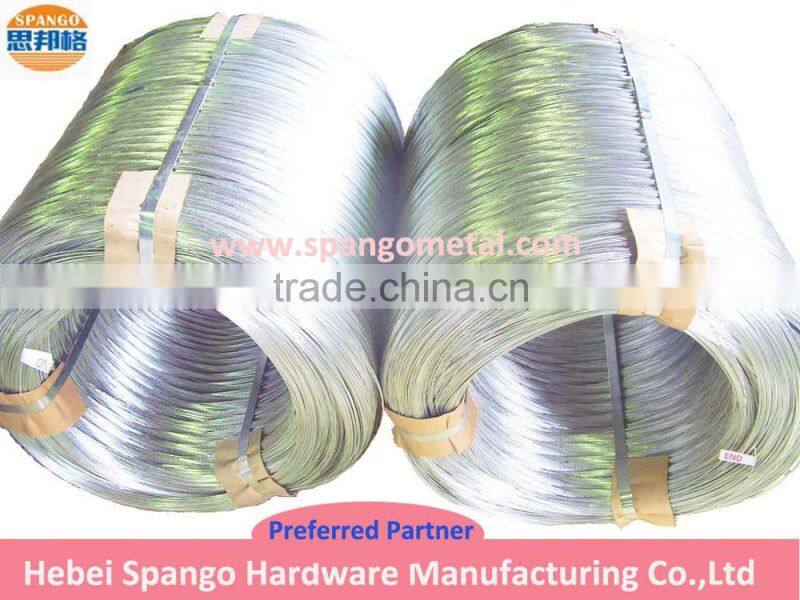

Galvanized Steel Wire for Armouring Cable/ Armoring Cable

FOB Price

US$ 600 - 750 / Ton

20 Tons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Steel wire for armoring cable

Steel wire for armouring cable

Steel wire for cable armoring

Galvanized steel wire for armoring cable

Galvanized Steel wire for armoring cable

Material	High quality carbon steel wire rod
Tensile Strength	340-450 N/mm2
Elongation	Min. 10%
Coil Weight	300-800 kgs
Wire Size (mm)	Tolerance (mm)	Max Elec. Resistance (ohm/km)	Zinc Coating (gram/m2)
0.90	+/-0.02	216.92	150
1.25	+/-0.03	122.02	200
1.60	+/-0.045	68.64	230
2.0	+/-0.050	43.93	240
2.5	+/-0.065	28.11	260
3.15	+/-0.07	17.71	275
4.0	+/-0.075	11.55	290
Standard	ASTM A411, BS EN 10244-2, BS EN10257-1,BS 4545
Remark	All technical data can be adjusted according to the demands of customers

We produce and export large quantity of Galvanized low carbon steel wire for armoring cable or armored cable.

Tensile strength of aromring cable wire: 340-450 N/mm2 for all sizes.

Elongation: Min. 10% for all sizes

Coil weight: 300-800kgs/coil

Wire diameter (mm):0.90,1.25,1.60,2.0,2.5,3.15,4.0

Tolerance (mm):+/-0.02,+/-0.03,+/-0.045,+/-0.050,+/-0.065,+/-0.07,+/-0.075

Max Elec. Resistance (ohm/km) :216.92,122.02,68.64,43.93,28.11,17.71,11.55

Min Zinc coating (g/m2) :150,200,230,240,260,275,290

Coil dia.(ID/OD mm):450/750mm,500/800mm, it is varies with different dia and weight.

Armored Cable Wire Standard: ASTM A411, BS EN 10244-2, BS EN10257-1,BS 4545

Packing: 300-800kg, Jumbo coil, plastic bag.

All technical data can be adjusted according to the different demands of customers.
