3 phase automatic voltage regulator for avr EA05AF
1.one year warranty
2.Fast delivery time
3.In stock, manufactory
4.made in china
Technology data:
| Sensing & Power Input | Voltage 160~260 VAC 1 phase 2 wire Frequency 50/60 Hz selectable |
|---|---|
| Output | Voltage Max. 170 VDC @ 240 VAC input Current Continuous 5A, Intermittent 7A for 10 sec. Resistance Min. 15 Ohm Max. 100 Ohm |
| Voltage Regulation | < ±1% (with 4% engine governing) |
| Voltage Build-up | Residual volts at AVR terminal > 5 VAC |
| External Volts Adjustment | ±10% with 5 K Ohm 1 watt trimmer |
| Unit Power Dissipation | Max. 8 watt |
| Soft Start Ramp Time | 2 sec. |
| Thermal Drift | 0.03% per °C change in AVR ambient |
| Under Frequency Protection | For 60 Hz knee point set at 55 Hz For 50 Hz knee point set at 45 Hz |
| Environment | Operating Temperature : -40~65 °C Storage Temperature : -40~80 °C Relative Humidity : Maximum 95% Vibration : 3.3G @ 100~2 KHz |
| AVR Controls Function | VOLTS : Voltage Adjustment STAB : Stability Adjustment U/F*: To Set the U/F Knee Point (*U/F: Under Frequency Protection) |
| Dimensions | 150.0 (L) x 100.0 (W) x 74.0 (H) mm |
| Weight | 421g ±2% |

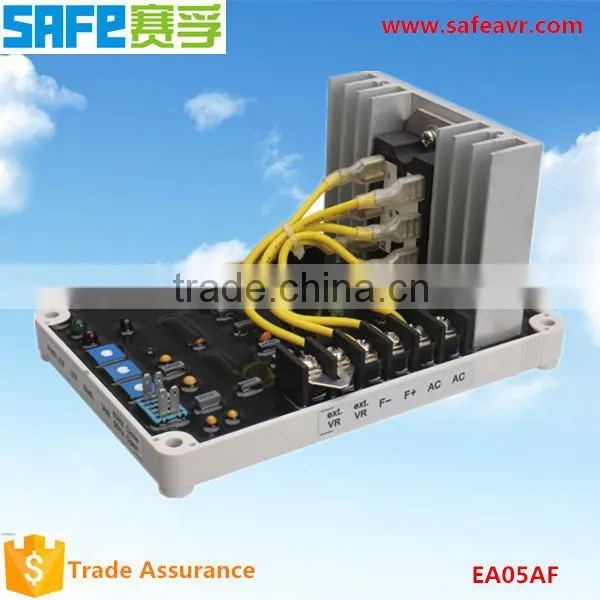

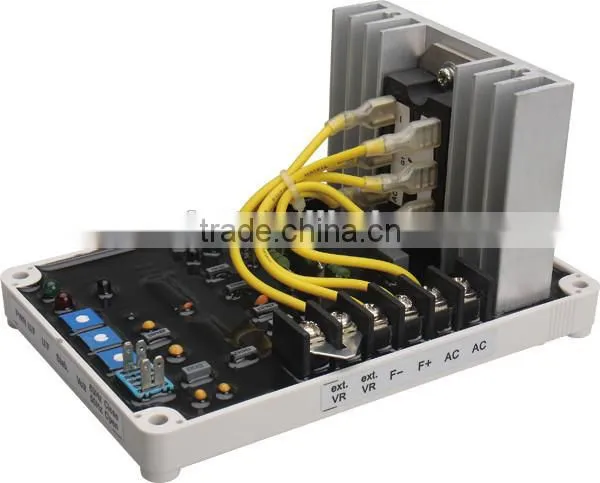

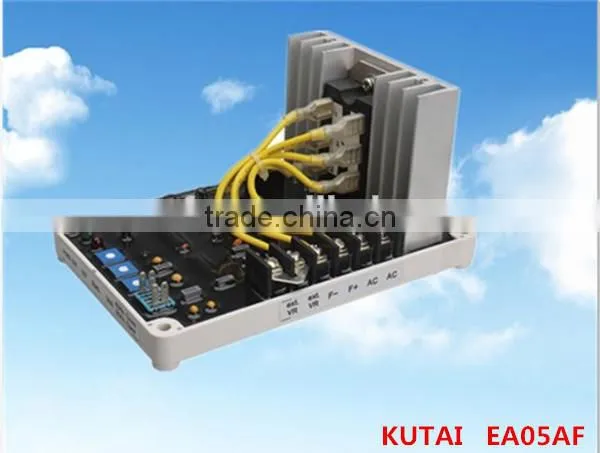

Product pictures
Company imformation
1.Safe set up on year 2003,Deal with 80% local market,supply 3000 pcs /Month
2.First AVR Factory in Fuan ,Nearly 10 Years Factory
3.Imported Vima Capacity with other parts from Nation Owned Company
4.Products test: Each product test 3tims before put in Package
5.PE Cover Final Packing for Automatic Voltage Regulator
Payment terms
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment terms
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy. 3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from Chinaby Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
Guarantee
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day.
Note
If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them.
Any questions please feel free to contact me! Thank you!
