Auto start genset controller deep sea controller 501k 1
1.one year warranty
2.Fast delivery time
3.In stock, manufactory
4.made in china
1)INTRODUCTION:
DSE501K is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on the front panel. The module is used to start and stop the engine, indicating fault conditions; automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.
2) SPECIFICATION:
A. DC Supply----9~33V continuous.
B. Alternator Input Range----15~305V AC RMS
C. Alternator Input Frequency---- 50~60Hz at rated engine speed.
D. Magnetic Input Range----0.5V~+/-80V
E. Magnetic Input Frequency----2300Hz~6000Hz
F. Start Relay Output----16 Amp DC at supply voltage
G. Run Relay Output----16 Amp DC at supply voltage
H. Alarm Output----1Amp DC at supply voltage
I. Operating Temperature Range----- -30~70celsius
3)TECHNICAL DATA:
| Power Supply | 9 to 33 Vdc Continuous |
| Cranking Dropouts: | Able to survive voltage dips during cranking. Without The need for internal batteries. |
| Alternator Input Range | 15 - 305 V AC RMS |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed |
| Magnetic Input Range | 0.5 V to +/- 80 V |
| Magnetic Input Frequency | 2300Hz to 6000 Hz at rated engine speed |
| Start Relay Output: | 16 Amp DC at supply voltage |
| Run Relay Output: | 16 Amp DC at supply voltage |
| Alarm Output | 1 Amp DC at supply voltage |
| Operating Temperature Range: | -30 to +70°C |
4914090,4914091 ESD5500E,ESD5522E,ESD5520E,ESD5550E,ESD5570E ESD5222,ESD5221,ESD5111,ESD5120,ESD5330,S6700E 4913988,3044195,3062323,3032733
3044196,3062322,3098693,3037359

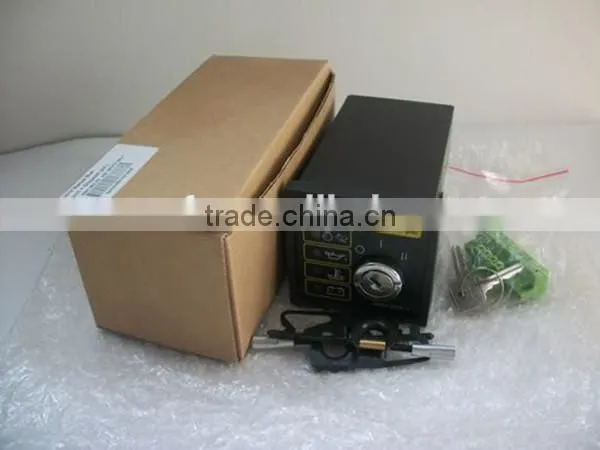

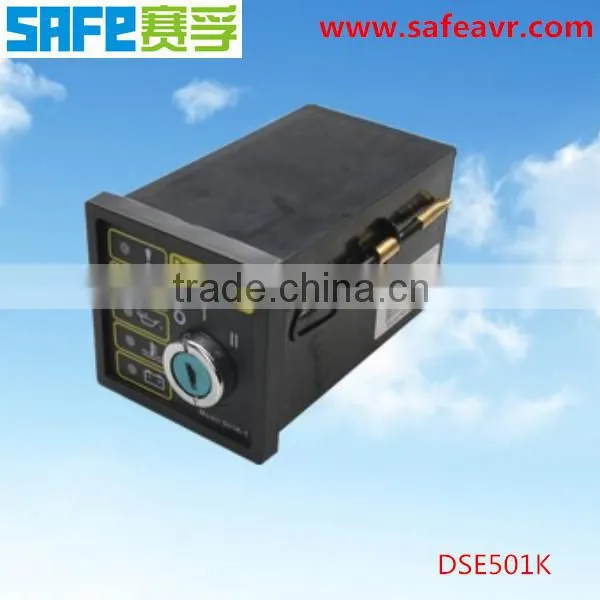

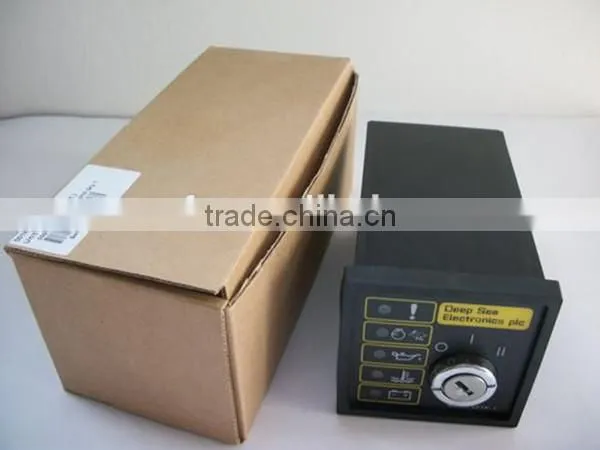

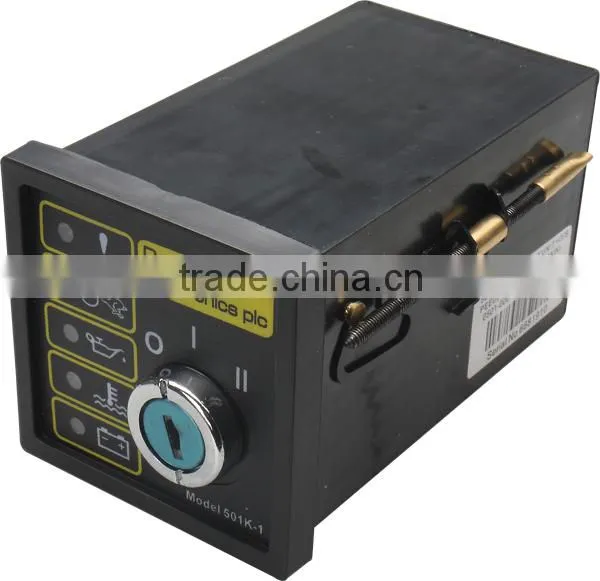

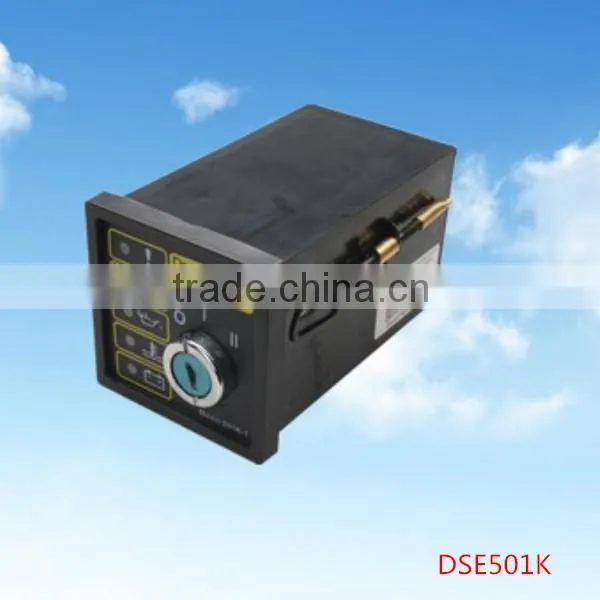

Product pictures
Company imformation
1.Safe set up on year 2003,Deal with 80% local market,supply 3000 pcs /Month
2.First AVR Factory in Fuan ,Nearly 10 Years Factory
3.Imported Vima Capacity with other parts from Nation Owned Company
4.Products test: Each product test 3tims before put in Package
5.PE Cover Final Packing for Automatic Voltage Regulator
Payment terms
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment terms
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy. 3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from Chinaby Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
Guarantee
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day.
Note
If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them.
Any questions please feel free to contact me! Thank you!
