Home > Industrial Equipment & Components > Power & Generating Sets > Generator Parts & Accessories > Generator Actuator ADC175 Governor Actuator 24v Actuator

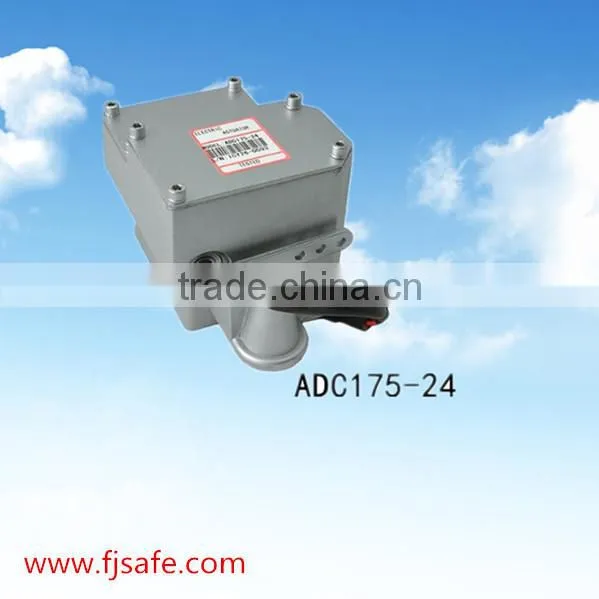

Generator Actuator ADC175 Governor Actuator 24v Actuator

Name: Generator Actuator ADC175 Governor Actuator 24v Actuator
Brand: safe
SKU: 118504663

Generator Actuator ADC175 Governor Actuator 24v Actuator thumbnail-1

Generator Actuator ADC175 Governor Actuator 24v Actuator photo-1

US$ 80 - 90 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

safe

Model Number:

ADC175

Contact Supplier Request Quote Chat Now

Fuan Safe Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou/Xiamen/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name safe

Model Number ADC175

Diesel Generator Actuator ADC120 12V/24V

1.one year warranty

2.Fast delivery time

3.In stock, manufactory

4.made in china

1.The 175 SERIES electric actuator is designed to mount directly on a Bosch "P" size fuel

injection pump, with a right hand, rack, in palce of the mechanical governor. When the 175 actuator is

installed on the fuel pump, an optimum performance, long life fuel control system results. An

external fuel shut off lever is provided to manually override the actuator's control. Also provided

is an adjustable internal maximum fuel limit.

2.The 175 Series Electric Actuator can control fuel pumps of up to 8 cylinders. The actuator was

designed with two isolated chambers. The upper chamber is wet with oil and contains the

connection to the fuel rack and an optional manual shut off mechanism. The sealed lower chamber

contains the electromagnetic components.

PERFORMANCE
Force:	6.2 lb. (27.5N)
Operating Stroke:	0.80 in. (21 mm)
Response Time (10-90%, 2-19 mm):	35 msec.
ELECTRICAL POWER INPUT
Operating Voltage:	12 or 24V DC
Nominal Operating Current:	12V DC version:	4.0A
	24V DC version:	2.0A
Maximum Current:	12V DC version:	5.8A
	24V DC version:	3.1A
ENVIRONMENTAL
Operating Temperature:	-40 to +95 °C (-40 to +200 °F)
Relative Humidity:	up to 100%
Vibration:	20g, 20-500 Hz
Shock:	20g @ 11 msec.
PHYSICAL
Weight:	4.75 lb. (2.2kg.)
Mounting:	Requires camshaft bearing retainer kit
	P3000pump	KT275
	P7000 pump	KT276
Mating Connector:	EC1300
Mating Cable Harness:	CH1215

Product pictures

Company imformation

1.Safe set up on year 2003,Deal with 80% local market,supply 3000 pcs /Month

2.First AVR Factory in Fuan ,Nearly 10 Years Factory

3.Imported Vima Capacity with other parts from Nation Owned Company

4.Products test: Each product test 3tims before put in Package

5.PE Cover Final Packing for Automatic Voltage Regulator

Payment terms

1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.

2.All major Credit cards are accepted through secure payment processor ESCROW.

Shipment terms

1. We Ship to Worldwide, except APO/FPO

2. Orders processed timely after showing remittance copy. 3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.

4.Items are shipped from Chinaby Airmail, reach most of the countries within 4 to 20 business days.

5.Delivery time depends on destination and other factors, it may takes up to 20 business days.

Guarantee

1. Guarantee:1 year after selled.

2. During guarantee,the items share free repairs or replacement.

3. Customer is responsible for the freight come-and-go,and the custom tax.

4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.

5. To save the cost,pls send the item back without packing.

6. Pls provide the defective appearance and related invoice number.

7.We do not repair or replace item with an expired warranty.

8.All emails will be answered within 1 business day.

Note

If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them.

Any questions please feel free to contact me! Thank you!
