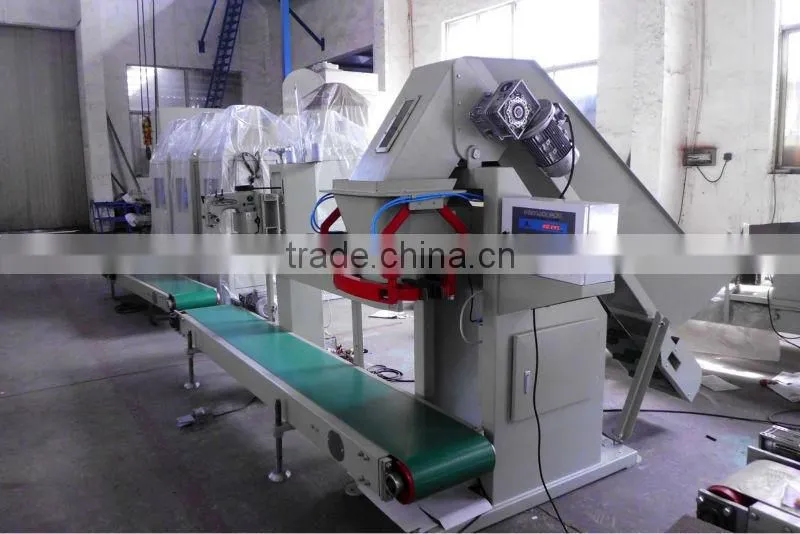

semi-automatic quantitative lump charcoal packaging machine
1. Introduction
This machine uses a leading technical feeding system, which uses belt conveyer to feed material. Meanwhile the special vent system absorbs materials floating dust and maintain operation house clean. It has some preventive mechanism: anti-jam, anti-shock, anti-stopper, which offers user easy-operation, easy assembling, easy-maintenance and excellent stability. And total-solution in a compact structure, need very small space to fix.
2. Main Structures:
2.1 Auto filling system: belt feeder
2.2 Auto weighting balance
2.3 Auto belt conveyor: 2500*380mm
2.4 Sewing machine: for paper bags or woven bags
2.5 Electronic control cabinet and Computer Control cabinet
3. Key Parts:
NO. |
Parts |
Made In |
1 |
Load Cell |
USA |
2 |
Cylinder |
TAIWAN |
3 |
Magnetic valve |
|
4 |
F.R.L Combination |
|
5 |
Weighing Controller |
CHINA |
7 |
AC Contactor |
GERMANY |
8 |
Air Switch |
GERMANY |
9 |
Inverter |
GERMANY |
4. Operation Process:
Manual bag placing→ Auto filling→ Auto weighing→ Auto bag discharge→ Auto bag conveyor→ Bag sewed → Next round
5. Technical Parameter
Precision |
0.2-1% |
Packing speed |
120-200bags/hour |
Weighing scale |
2-10kg,10-50kg/hour |
Power Supply |
220Va.c and 4N-380Va.c |
Power Dissipation |
2.5kW |
Request Compressed Air |
0.4MPa~0.6MPa |
Compressed Air Consume |
0.4m3 |
