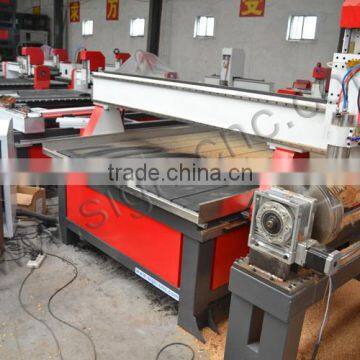

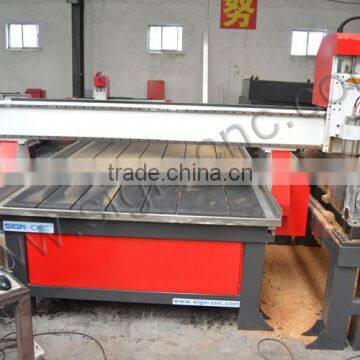

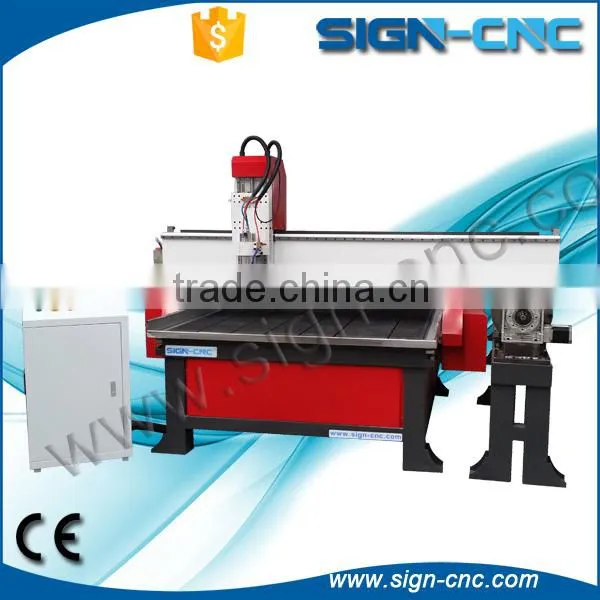

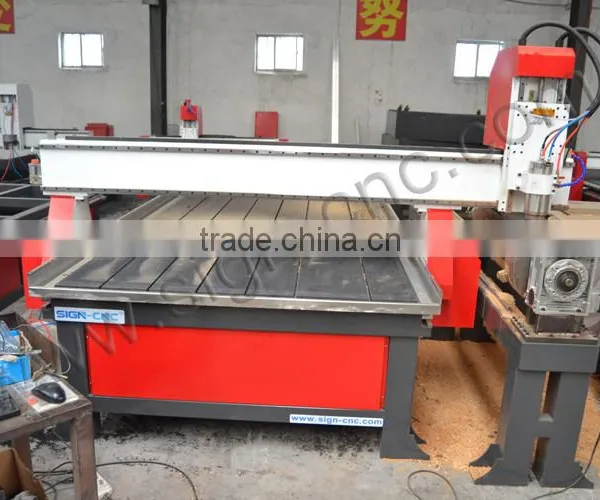

1325 CNC Router Engraving Machines/ Woodworking Machine for artcraft
Machine features
1.SIGN-1325A is Cost -Effective woodworking CNC Router.
Steel Gantry height 200-300mm optional.
2.Y adopt durable driving by synchronizing wheel consist of belt and gear shaft .
Big power sub-division motors keep stable moving, improve your working efficacy.
3.It will start the work automatically at the point from which the power cut off. More intelligent.
4.Using quality sensor switch, improve the machine working safty .

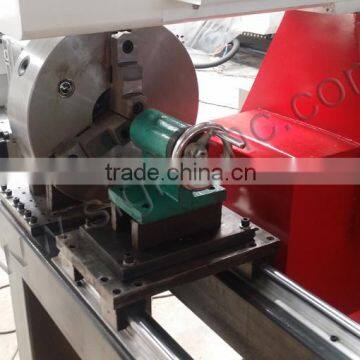

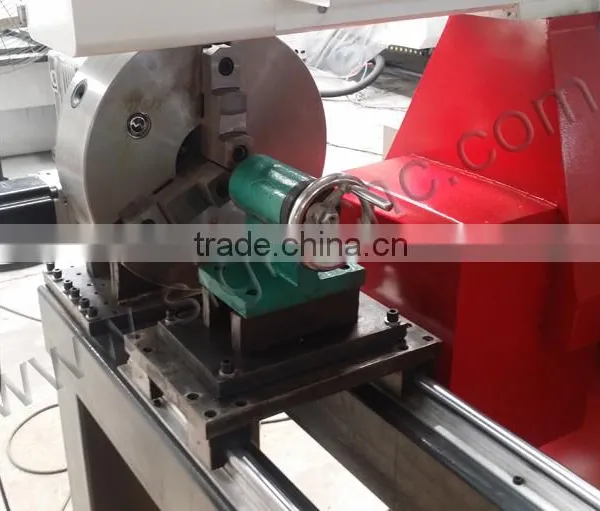

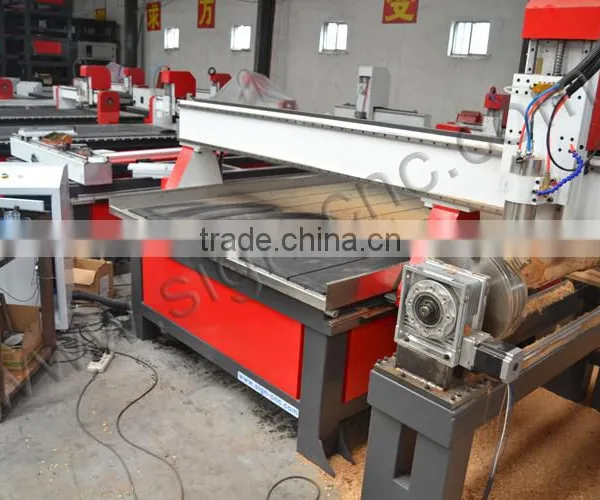

5.Servo system is optional. Vacuum holding down surface optional. Rotary device for cylindrical workpieces engraving optional
Applications
1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, plastic and soft metals such as copper and aluminum.
Technical Parameters
| Model | SIGN-1325A | SIGN-1530A | SIGN-2030 | SIGN-2040 |
| XY Working size | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
| Z feed Height | 150mm(200mm/300mm heighten Gantry optional) | |||
| Frame: | Steel tube structure | |||
| Table Surface | T-slot (Option: Vacuum Table) | |||
| X, Y Structure: | Rack and Pinion Drive, Hiwin Rail Linear Bearings | |||
| Z Structure: | Hiwin Rail Linear Bearings and Ball Screw | |||
| Max. Power Consumption: | (Without spindle) 2.0Kw | |||
| Max. Rapid Travel Rate: | 33000mm/min | |||
| Max. Working Speed: | 25000mm/min | |||
| Spindle Power: | 3.0 / 4.5 KW | |||
| Spindle Speed: | 0-24000RPM | |||
| Drive Motors: | Stepper( Servo Optional) | |||
| Working Voltage: | AC220V/50/60Hz,3PH (Option: 380V)) | |||
| Command Language: | G code | |||
| Operating System: | Ncstudio (options: DSP /Mach3 PC Software) | |||
| X,Y,Z repositioning Accuracy: | ±0.01mm | |||
| X,Y Resolution | <0.01mm | |||
| Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) | |||
| Running Environment Temperature: | 0 degree - 45 degree | |||
| Relative Humidity: | 30% - 75% | |||
| Guarantee | One year | |||

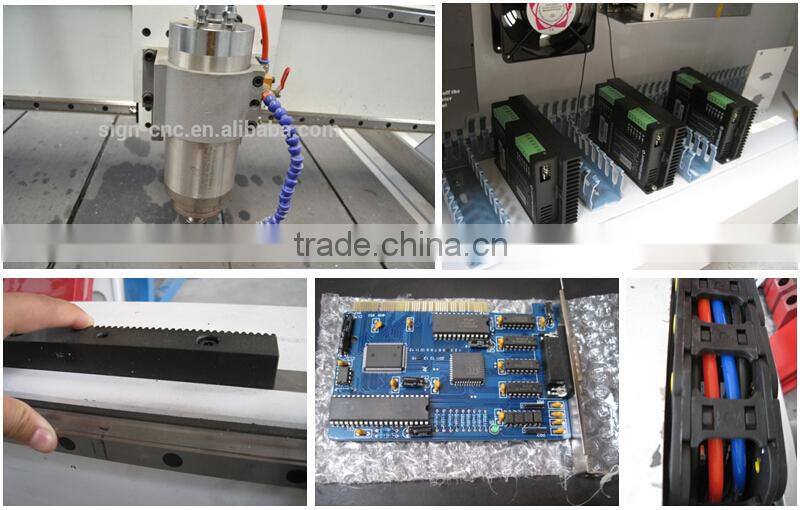

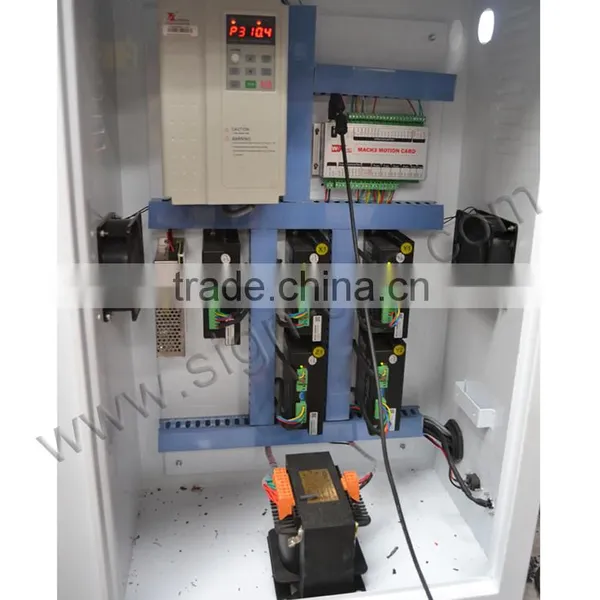

Machine Parts

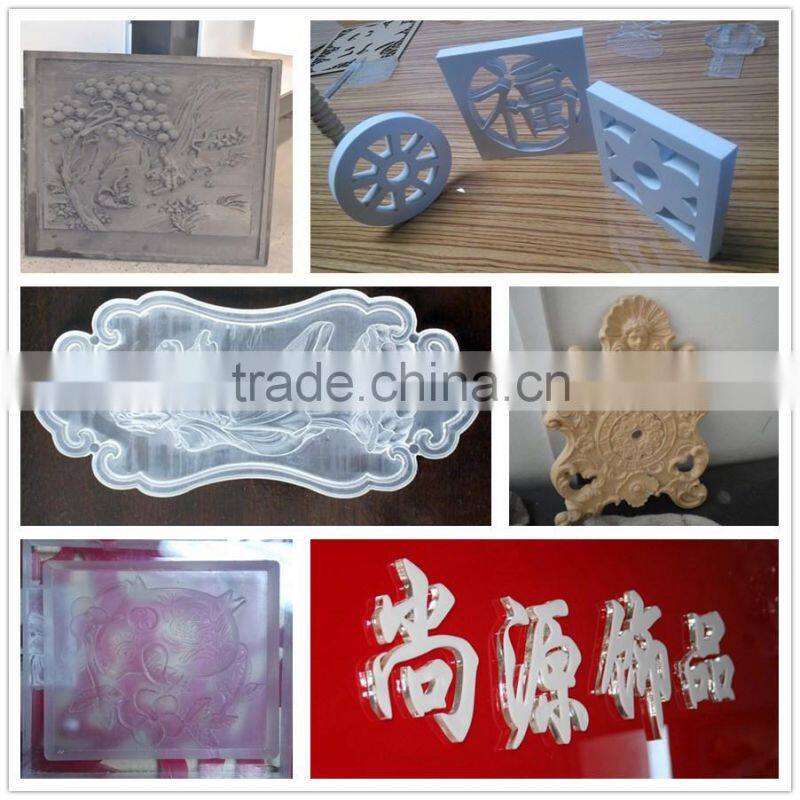

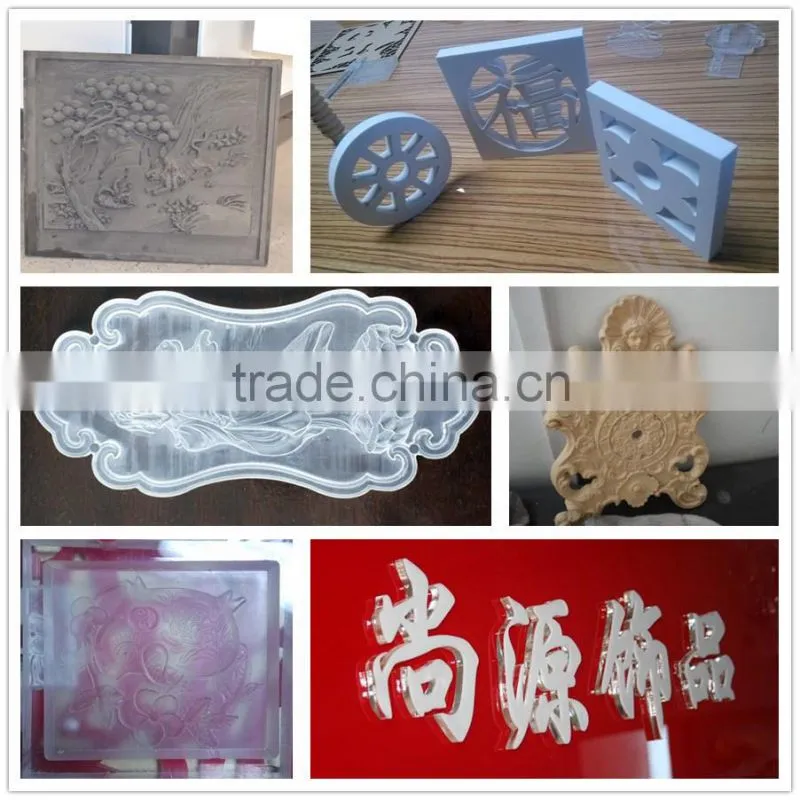

Machine Samples
About Us
We are professional SIGN CNC supplier and have own factory .we offer stone CNC router ,wood CNC router ,advertising CNC router ,we also have laser engraving machine ,laser cutting machine ,plasma cutting machine ,laser marking machine ,if you need machines ,please come to SIGN CNC
FAQ
1.How do you send your machine ?
A: We can send our machines by sea ,land and rail way ,or we can send the machine to your doors.
2.Does machine comes with software ?
Yes , there are software , the software with the machine ,and we also the specification of the software.
3.How do you guarantee the quality of the machine ?
First, our each accessory is the high quality products,
Second, we have the professional test for the machine, we send the professionals to check the machine quality after the machine has been producted.
Third, We have the professional teams to pack the machine .
Finally, there is one detailed information in our company database , in order to provide the After –Sale Service timely.
After Sale Service
1.Offering the specification of the machine, two years warranty for Laser Machine.
2.English software, user manual and operation CD
3.24 hours technical support by e-mail, calling or door-to-door service If you have any problems, we will within 12 hours to solve it.
4.If you need any component of the machine later ,we will provide the best price for you
5.7-15 working days to produce the machine, in the meanwhile, we will report the production process in time.
