4 axis high speed computer control wood stair cnc router machine
- 100 Set / Sets per Month
- Qingdao port
- T/T Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGNCNC | Model Number: | 1530-R | Voltage: | AC380V/50/60Hz,3PH (Option: 220V) |
Power(W): | (Without spindle) 2.0Kw | Dimension(L*W*H): | 3150*2100*1850mm | Weight: | 1200kg |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
4 axis high speed computer control wood stair cnc router machine
1.Machine brief:
SIGN1530-R is Cost -Effective woodworking CNC Router. Feeding height 200-300mm is optional. It has a rotary device professional for round materials.

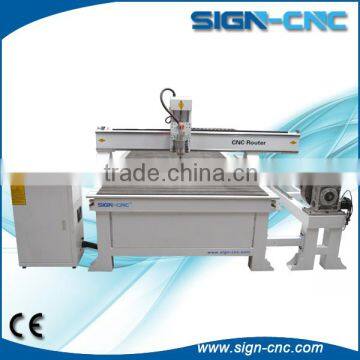

2. china cnc router machine pictures:
3.Machine Features:
Imported ball screw rod and Hiwin linear guide rail
----ensure accuracy and high precision
Quality sensor switch
----improve the machine working safty
High-performance driven motor
---- ensure that the machines high speed and accuracy
Big power sub-division motors
---- keep stable moving, improve your working efficacy
Large compatibility of drawing software
Type3, Art compatible Artcam/Type3/Ucancam/JDPaint
Continuing working after the break point/power failure
----lower the rejection rate
Optional items
----servo motor, vacuum adsorption working table, rotary axis
4.Machine reference pictures:
5.Application:
Furniture decoration, music instrument,wooden arts and crafts, large scale board engraving, solidwood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, bedside cupboard, screen sculpture etc.
6.Technical Parameter:
Model | SIGN-1325 | SIGN-1530 | SIGN-1830 | SIGN-2030 |
XY Working size | 1300*2500mm | 1500*3000mm | 1800*3000mm | 2000*3000mm |
Z feed Height | 200mm / 300mm heighten Gantry optional) | |||
Frame: | Steel tube structure | |||
Table Surface | T-slot (Option: Vacuum Table) | |||
X, Y Structure: | Rack and Pinion Drive, Hiwin Rail Linear Bearings | |||
Z Structure: | Hiwin Rail Linear Bearings and Ball Screw | |||
Max. Power Consumption: | (Without spindle) 2.0Kw | |||
Max. Rapid Travel Rate: | 33000mm/min | |||
Max. Working Speed: | 25000mm/min | |||
Spindle Power: | 2.2 / 3.0 / 4.5 KW | |||
Spindle Speed: | 0-24000RPM | |||
Drive Motors: | Stepper( Servo Optional) | |||
Working Voltage: | AC380V/50/60Hz,3PH (Option: 220V) | |||
Command Language: | G code | |||
Operating System: | Ncstudio (options: DSP /Mach3 PC Software) | |||
X,Y,Z repositioning Accuracy: | ±0.01mm | |||
X,Y Resolution | <0.01mm | |||
Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) | |||
Rotary device | 200mm diameter | |||
Running Environment Temperature: | 0 degree - 45 degree | |||
Relative Humidity: | 30% - 75% | |||
Guarantee | One year | |||
Optional Parts | Air cooling spindle or Water cooling spindle Dust collector Vacuum Pump Mist-cooling system Reducer Yaskawa/ Panasonic Servo motors |

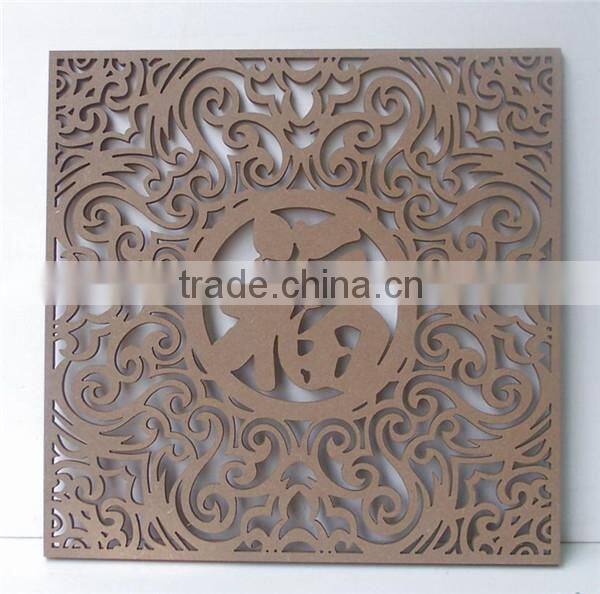

7.Samples:
8.Delivery and Transport:
FOB Qingdao. If other port needed, please tell me in advance.
CIF. Please tell me your destination port in advance. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
9.Our after-sale service
Within 7 days since your local customs clearance: if the cnc machine’s any part has any problem, we will change it free.
Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problem, we can change the old machine parts to new ones free.
Exceed warranty period 1 year: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
10.Would you mind telling us the flowing information, we will recommend the most suitable cnc router and the best rice for you. Or we can customize one for you.
What materials do you want to engrave or cut?
For different types of cnc routers apply to different materials (wood ,stone, metal, foam etc.)
What's the max. size of the materials? (Length*Width*Thickness)
For it decides the working size of machine.(for example: SW-1325: 1300*2500*200mm)
11.Package
More other models:
1325 ATC cnc router | 6090mini cnc router |
Please feel free to contact us for further more information!
