4X8tf wood carving machine
- 500 Set / Sets per Month
- Qingdao
- Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGN-CNC | Model Number: | SIGN-1325 | Voltage: | 110/220/380V |
Power(W): | 3.0KW | Dimension(L*W*H): | 2500*1900*1700mm | Weight: | 1000KG |
Certification: | CE / ISO | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description
4X8tf wood carving machine
Working area have:
300*300mm/400*400mm/600*600mm/400*700mm/600*900mm/1300*1200mm /1300*1800mm/1300*2500mm/1500*3000mm/2000*3000mm and so on.
Rotary diamter:
80mm/100mm/150mm/160mm/200mm/250mm/320mm
Customizable:

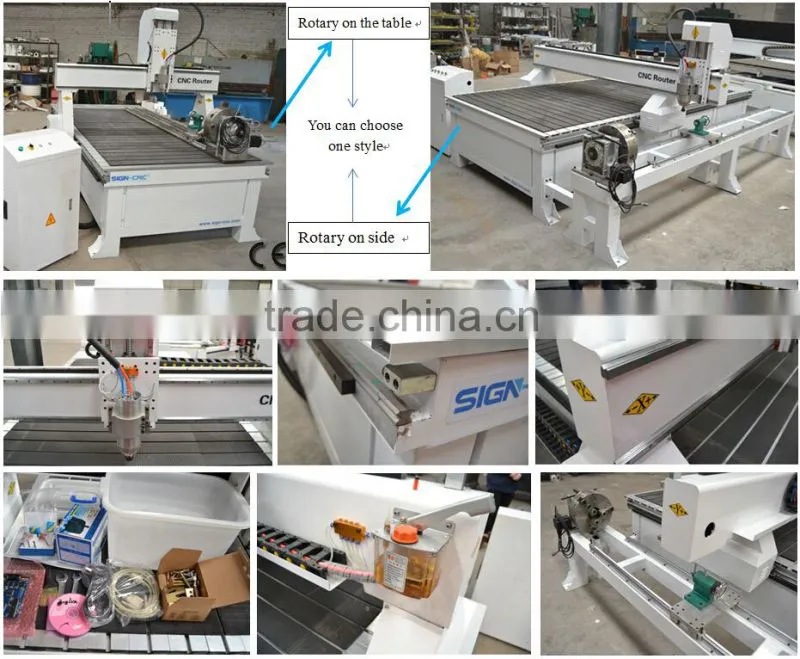

SIGN-1325 / 1530 / 2030 cnc router machine parts:
1.---Working area is 1300*2500mm / 1500*3000mm / 2000*3000mm

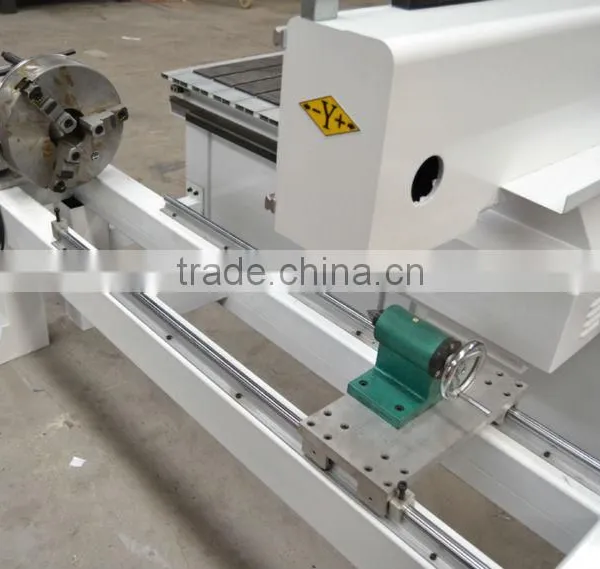

2.---Rotary diameter is 80mm / 100mm / 150mm / 160mm / 200mm / 250mm / 320mm
3.---Big steel gantry

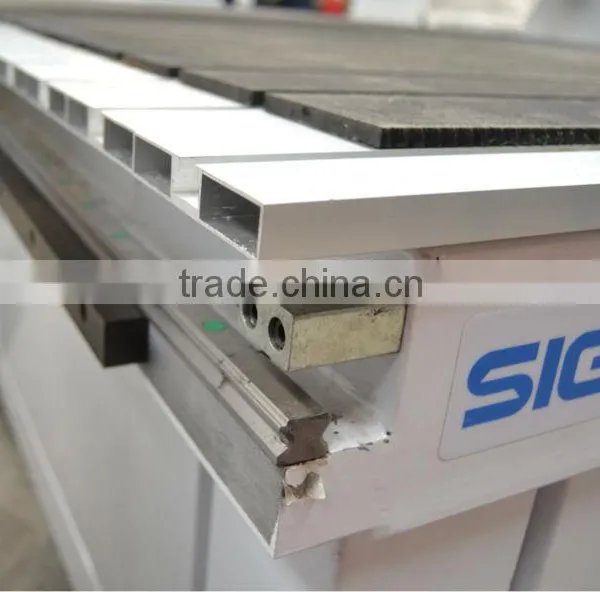

4.---Hiwin/TBI brand square guide rails and pinion and rack
5.---T-slot table.
6.---3.0 kw water cooling, Low noise high rotated speed (24000rpm).
7.---Continuing working after the break point/power failure, lower the rejection rate.
8.---NCstudio or DSP.
9.---Tool box for cnc router.
10.--Oil lubracation system
11.--CE certificate
12.--Heavy duty bed
13.--Leadshine stepper. Y adopt durable driving by synchronizing wheel consist of belt and gear shaft.
14.--Independent control cabinet
15.--Using quality sensor switch, improve the machine working safty.
Wood CNC Router : 4 axis cnc router
It can be widely applied in many applications, carving cubic and column works such as Advertisement industries for column wood, Mold works, Home & Outdoor Product making , Architectural decoration and other column shape art crafts.
Applicable materials:
Carving for wood/MDF/acrylic, it can be used for solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, beside cabinet, folding screen, ect.
Wood CNC Router Technical Parameter: 4 axis cnc router
Model | SIGN-1325/1530/2030 |
Working Area | 1300*2500mm / 1500*3000mm / 2000*3000mm |
Also have the ability to custom-made according to user's special demand | |
Spindle Power | 3.0 KW water cooling spindle |
Table material | Aluminium Alloy T-slot, |
X,Y,Z Guideway rails type | X,Y Square Guide Rail, Gear Transmission, Z ball screw |
Working Delicacy | 0.025-0.05mm |
Max Engraving Speed | 25,000mm/min |
Resolution ratio | 0.002mm |
Repetition accuracy | ±0.02mm |
Spindle Rotating Speed | 6000 - 24,000rpm |
Control system | NCstudio or DSP |
Drive motor system | Step Motor and Step Driver(Option: Servo System) |
Engraving Command | G code |
Operational Software | Original Type3 Software, ArtCam software or Wentai Software |
Software Compatibility | Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
Working temperature | 0-45°C |
Relative humidity | 30% - 75% |

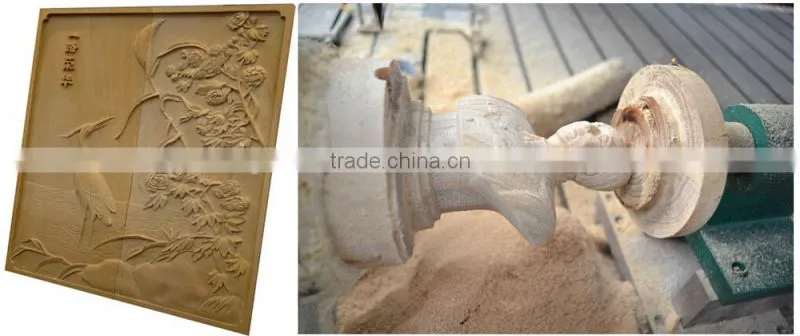

Machine samples

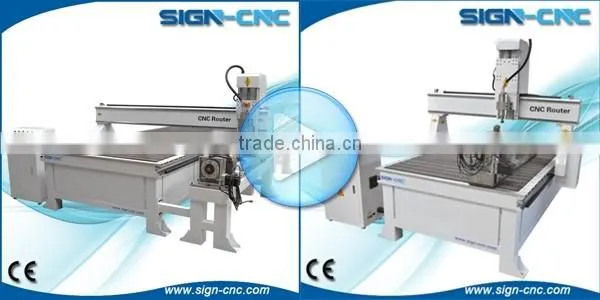

Machine Video:

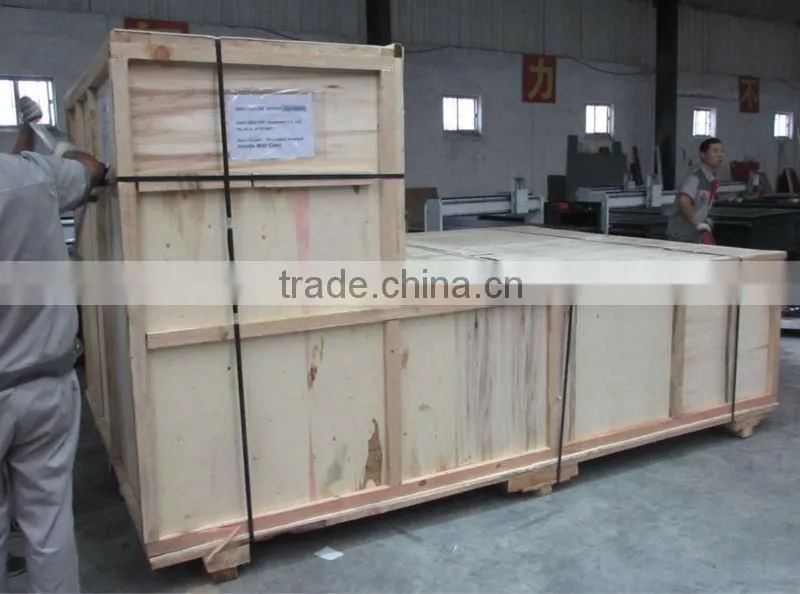

Machine packing
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then the have been package use standard wood case, on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
After sales service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
Our custemers
FAQ
1.Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.
2.Q: This is my first time to use this machine, is it easy to operate?
A: There are guide videos that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.
