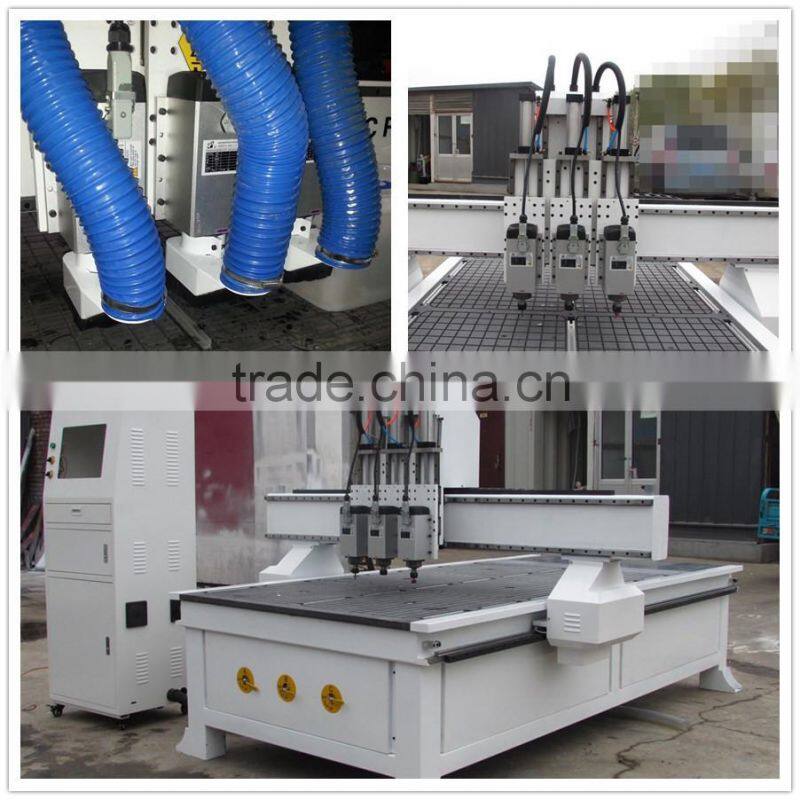

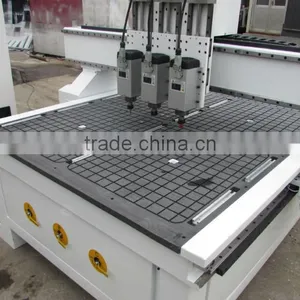

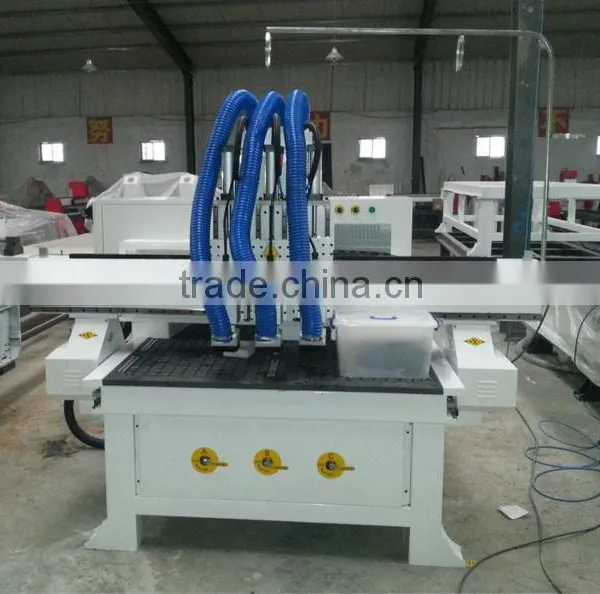

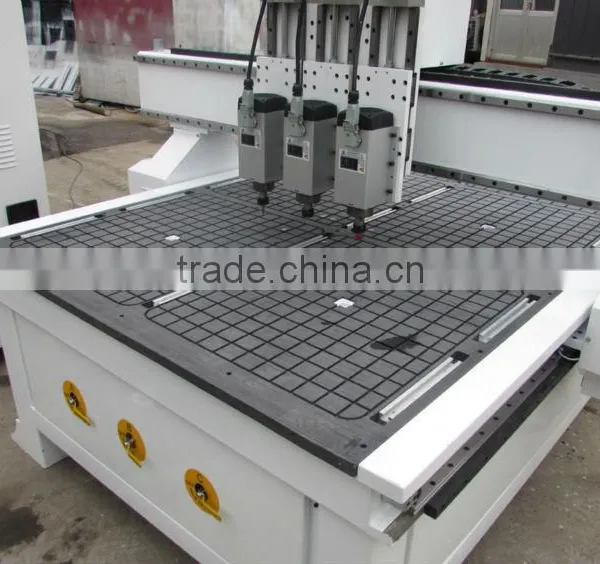

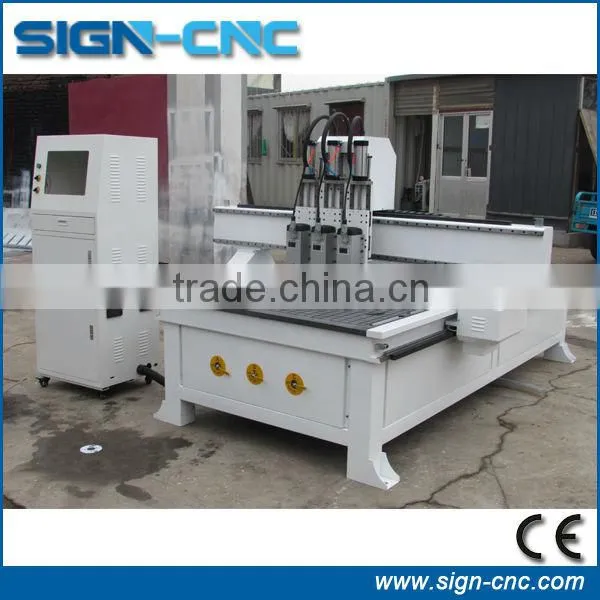

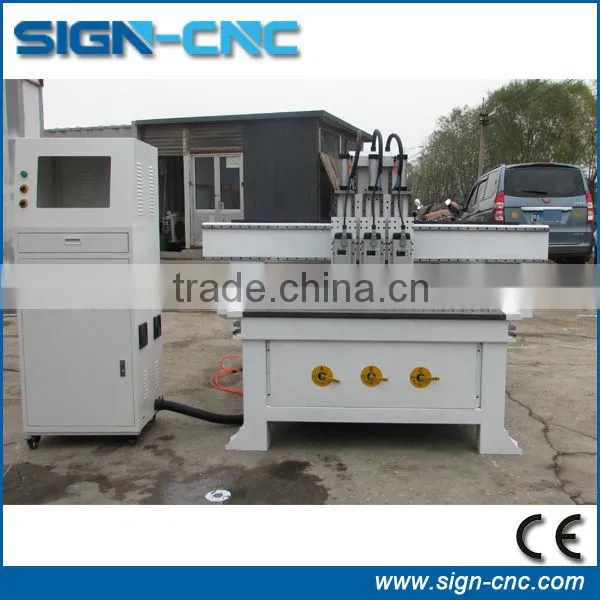

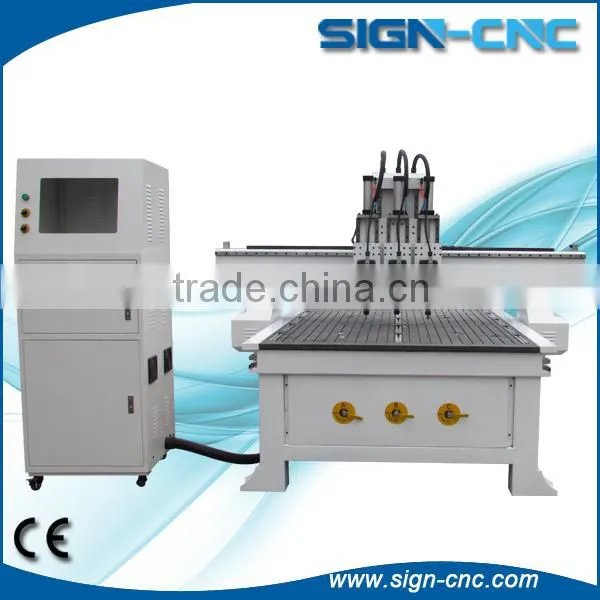

China manufacture SIGN 1325 Pneumatic wood cnc router with auto tool changer
Choonse one Pneumatic Wood cnc router is best choice
Pneumatic three or double heads ATC wood cnc router specially designed for customers to improve the working efficiency.

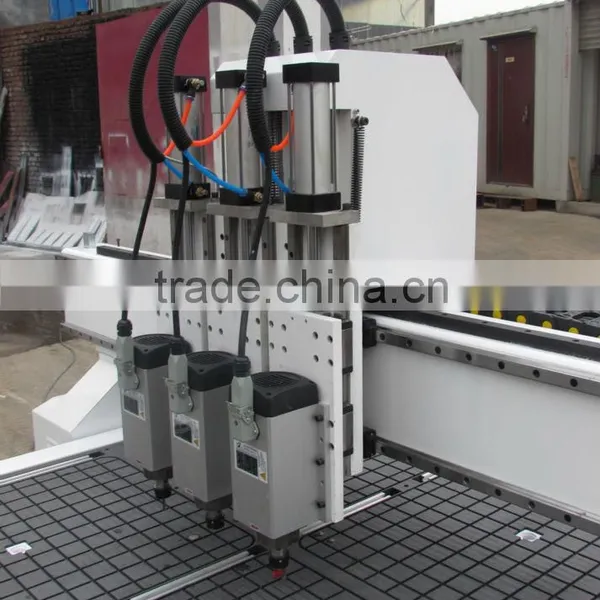

Three heads controlled by pneumatic cylinder, it can arbitrary switching , can easily complete multiprogramming designed for customers, Eliminating the middle tedious manual tool change
Pneumatic CNC Router used for wooden door, furniture, instrument .
this one machine can do three machine’s job , low cost and high working efficiency
Machine features
1.Intelligent controlling, 3 kinds of cutters, according to program setted, no need to change tools manually halfway, high efficiency. Application to products which need at most 3 types of tools. low investment, high profit, and easy to operate.
2.Adopt imported linear square orbit, two line sliding track, heavy loading ,stable working ,high precision and long lifetime. Adopt imported ball screw , high precision.
2. Original Ncstudio control system can do multi-level three-dimensional processing automatically. It can do three-dimensional processing fast, smoothly, engraving or cutting. And can be realized off-line operation.
4.Intelligent processing and crossborder protection function can prevent mechanical collision caused by processing oversize large files.
5.Well compatibility :CAD/CAM designing software e.g.Type3/Artcam/Castmate/Wentai etc.
Applications
1.Woodworking industry,Wooden door, furniture and decoration; Wooden crafts making; Redwood carving, Archaized furniture.Also can used in other industry.
2.Advertising industry, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
Technical parameters
Model |
SIGN-1325 |
Working Area(X,Y,Z) |
1300*2500*200mm |
Also have the ability to custom-made according to user's special demand | |
Spindle Power |
3.0KW HQD air cooling spindle |
Table material |
Vacuum table |
Guideway rails type |
Square Guide Rail, Gear Transmission |
Working Delicacy |
0.025-0.05mm |
Max Engraving Speed |
25,000mm/min |
Resolution ratio |
0.002mm |
Repetition accuracy |
±0.02mm |
Spindle Rotating Speed |
6000 - 24,000rpm |
Spindle cooling |
air cooling |
Drive motor system |
leadshine driver 860 |
Engraving Command |
G code, u00, mmg, PLT, HPG |
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
Working temperature |
0-45°C |
Relative humidity |
30% - 75% |
Machine Configuration :
1.Square rail and rack
2.Vacuum table and 5.5kw vacuum pump
3. DSP and oiling system
4.Leadshine stepper motor and driver
5.HQD 3.0KW air cooling spindle power
6. Fuling 3.7kw inverter
7.Original Ncstudio system
8.Z=200mm
9.Independent case

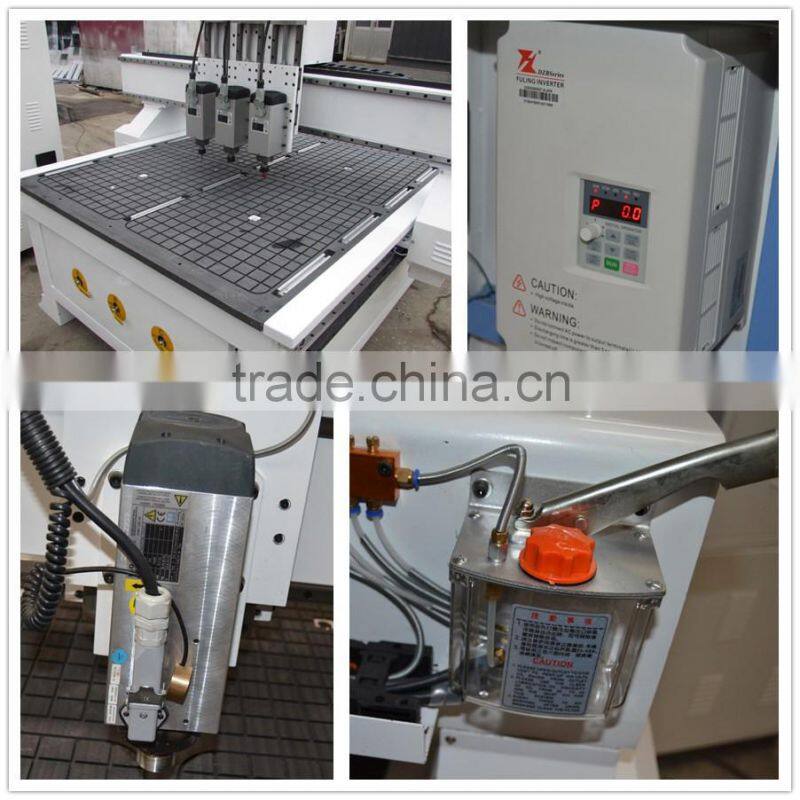

Machine parts pictures

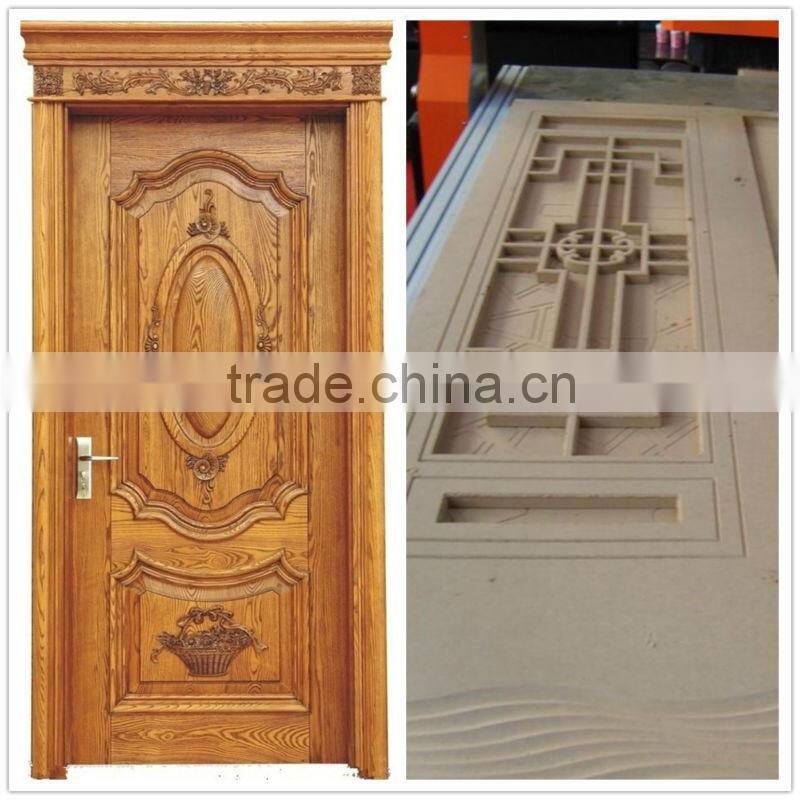

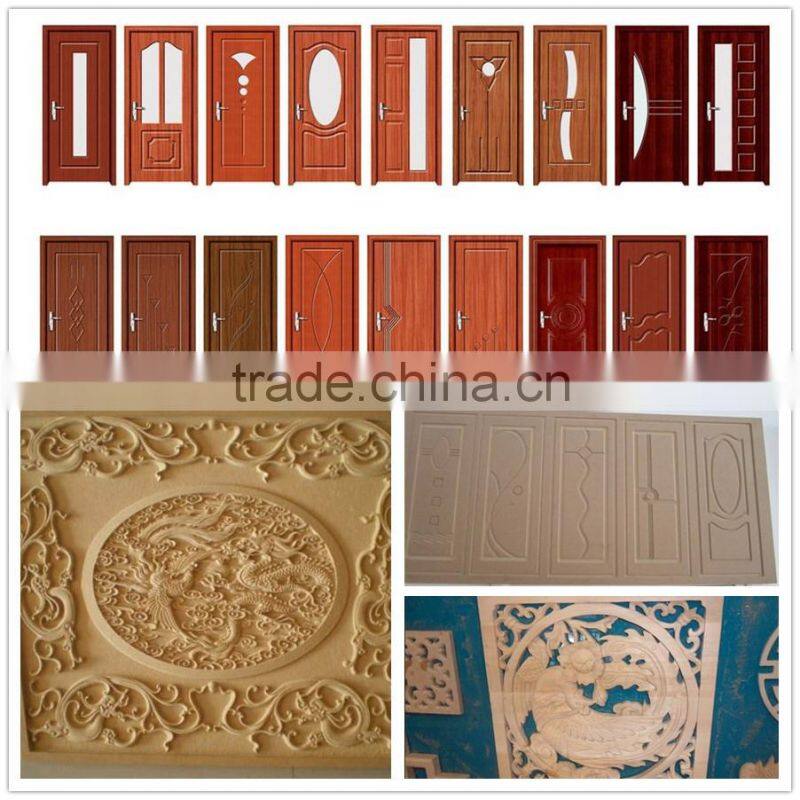

Machine samples
How to maintenance the CNC Router?
1. First cut the power when maintain the machine. When check work must open the power, need the professional electrician to do this check work.
2. Repair and replacement the parts, please first confirm the specifications of the technical.
3. Regular clean the cooling system of the CNC Router. Should always check every cooling fan of the machine if work properly. And every six months or a quarter to check and clean the machine one time.
4. Should always monitor the voltage and electricity grid of the CNC Router.
5. Prevent the dust into the machine.
After sale service
1.Offering the specification of the machine , ,two years warranty for Laser Machine.
2.English software, user manual and operation CD
3.24 hours technical support by e-mail, calling or door-to-door service If you have any problems ,we will within 12 hours to solve it .
4.If you need any component of the machine later ,we will provide the best price for you
5.7-15 working days to produce the machine ,in the meanwhile , we will report the production proc
Packing parts
