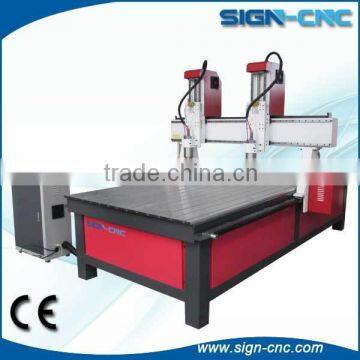

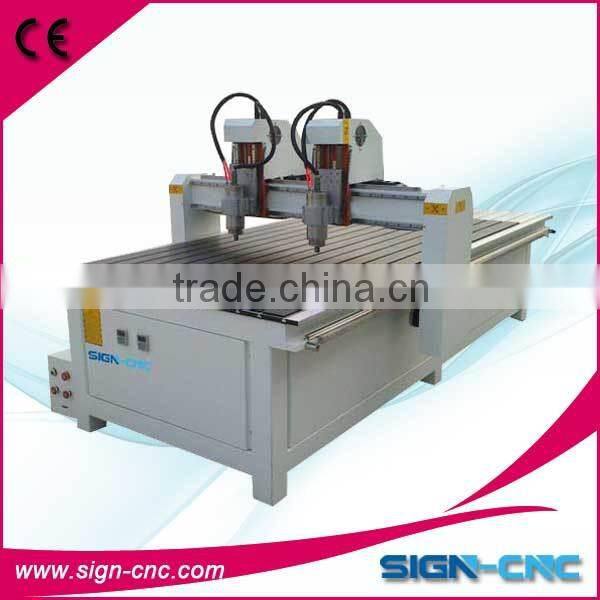

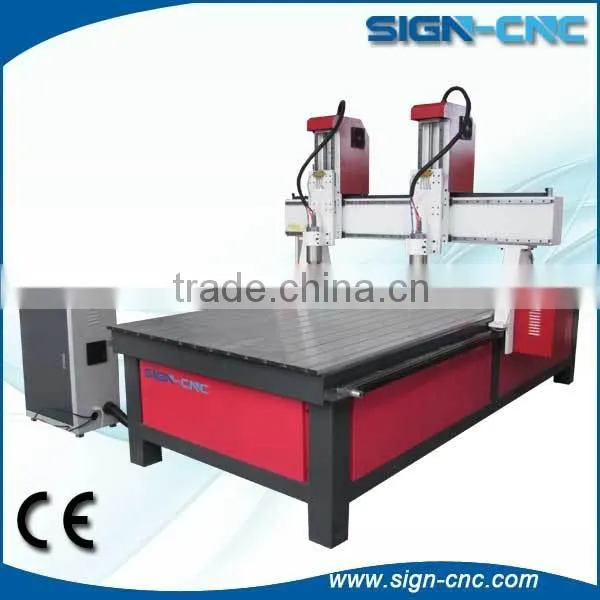

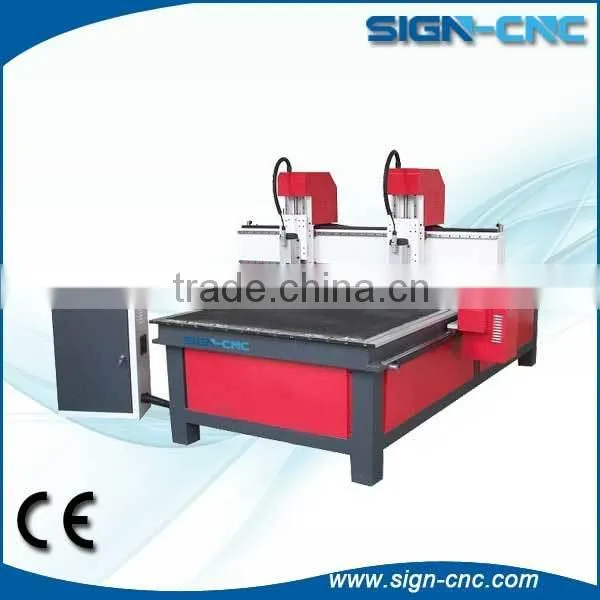

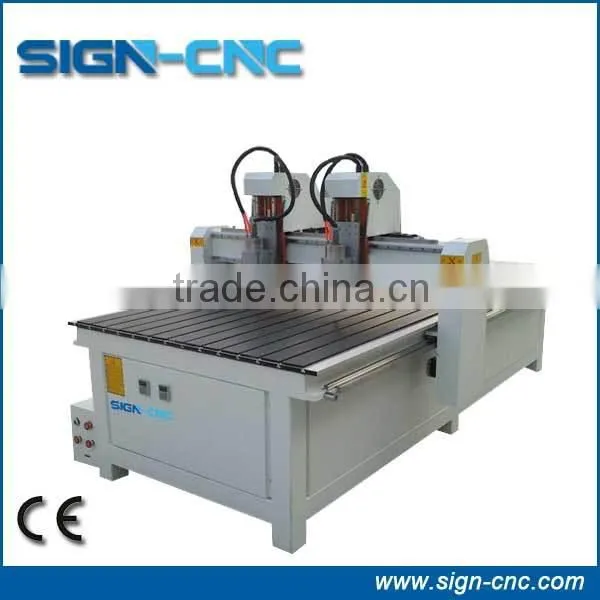

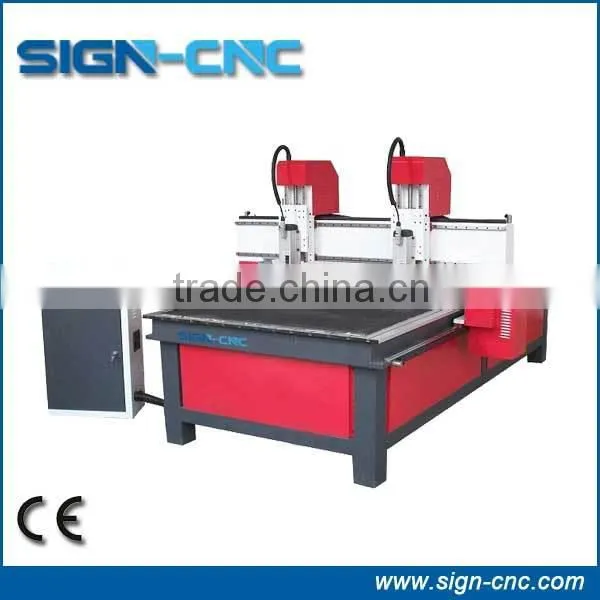

Double process 3 axis 3d cnc router for woodworking 1325-2
Features:
1. More steady and strong equipped with T type gantry and T type square steel tube machine bed.
2. Equipped with 2 spindle heads, each one is 5.5kw, air cooling, more poweful, good perfomance, can processing several work pieces by one time, saving time and improving the efficiency.
3.The spindle heads distance is adjustable according to the work piece processing size . It can also just open any one spindle head when working.
4. DSP offline control system, when working no nee d computer, just using the USB disk to store files, more convenient and easy to operate.
5.Linear square guide rail, high precision and long life time, rack and pinion transmission, high speed.
6. Vacuum system, vacuum table+5.5kw vacuum pump, better to suck the different size materials.
7. Dust collector, with double bags, more powerful, helping to suck the dust, milling dust, keeping the machine clean.
8. Good soft ware compatibility, all kinds of CAD/CAM ,such as Type3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
9. Simple operation and installation, when delivery we will providethe videos for trainning

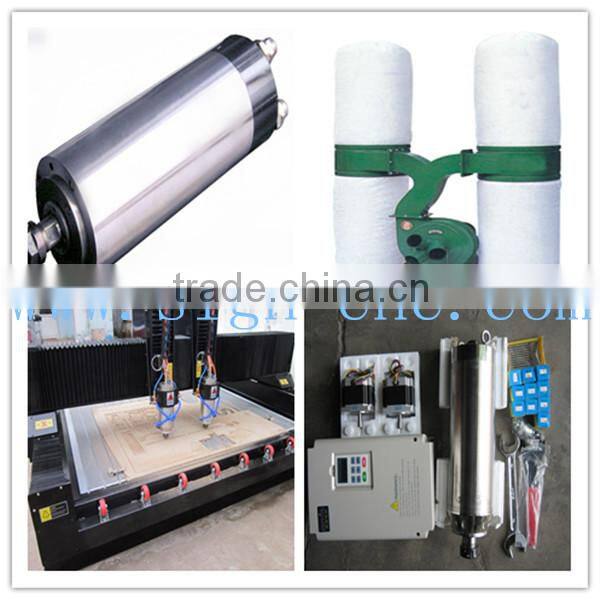

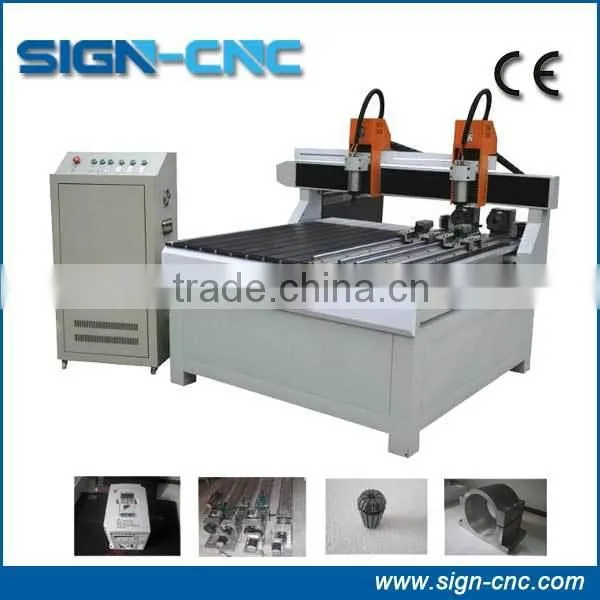

Machine parts:
Application:
Furniture decoration, music instrument,wooden arts and crafts, large scale board engraving, solidwood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, bedside cupboard, screen sculpture etc.
Technical Parameter:
Model |
SIGN-1325 Multi- spindle Carving Machine |
X,Y Working Area: |
1300*2500mm |
Z feed Height |
150mm |
X,Y,Z repositioning Accuracy: |
±0.01mm |
Frame: |
Steel tube structure |
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption: |
(Without spindle) 2.0Kw |
Max. Rapid Travel Rate: |
33000mm/min |
Max. Working Speed: |
25000mm/min |
Spindle Power: |
0.8 / 1.5 / 2.2KW * 6 |
Spindle Speed: |
0-24000RPM |
Drive Motors: |
Stepper system |
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language: |
G code |
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution |
<0.01mm |
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
Running Environment Temperature: |
0 degree - 45 degree |
Relative Humidity: |
30% - 75% |
Guarantee |
One year |
Samples:
Our certificate:
Our Services
1.One year warranty time, we can repair and replace parts for free in one year. 2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers. 5.We provide the consumable parts at agent price when you need replacement
