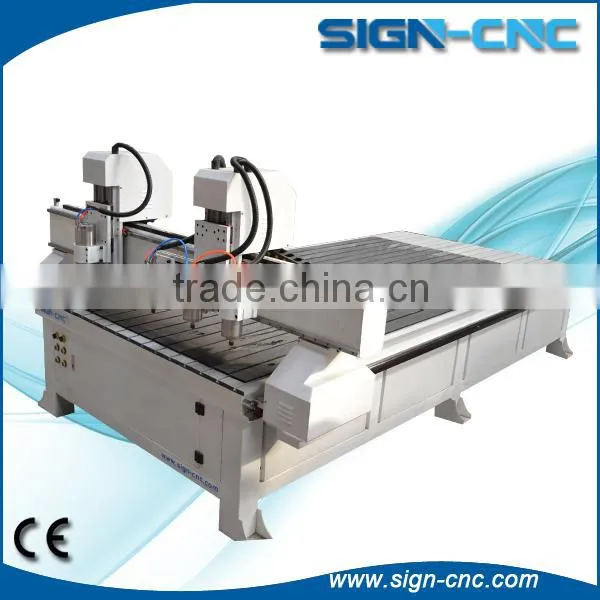

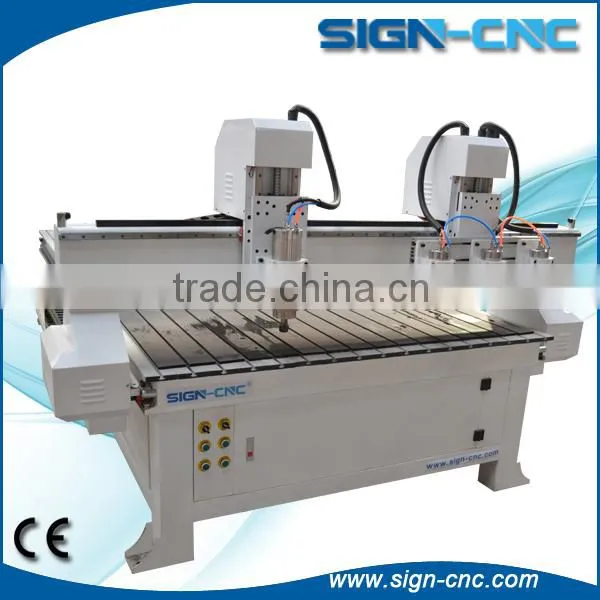

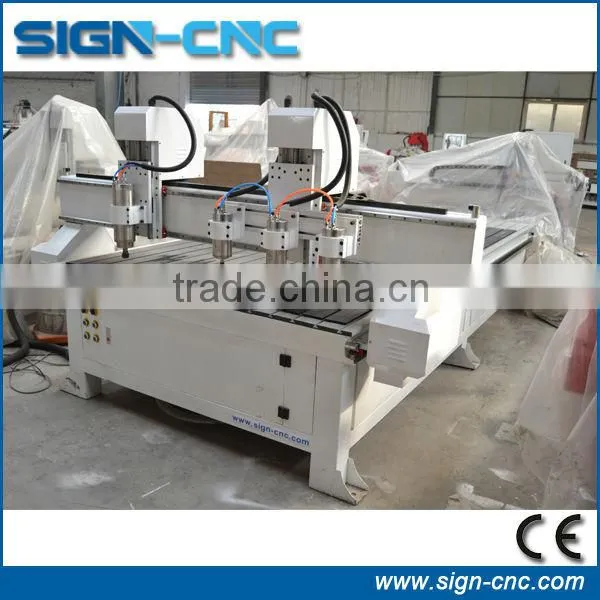

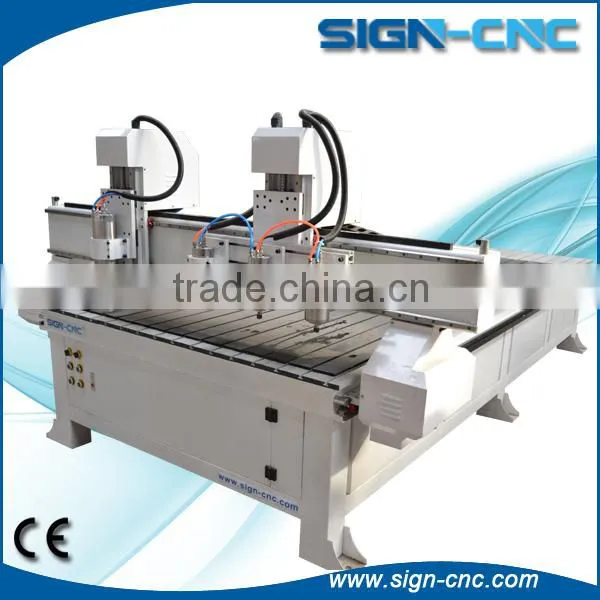

3d wood cutter cnc engraving machine for cabinet, furniture, woodworking cnc cutting machine with multi heads
Application:
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to process any wooden products,
antique furniture, crafts gifts, relief processing.
1). Wood Furniture Industry:Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates,
cupboard doors, interior doors, headboards and so on.
2). Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,
and other advertising materials derivatives making.
3). Die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe,
wooden planks and other non-metallic mold.

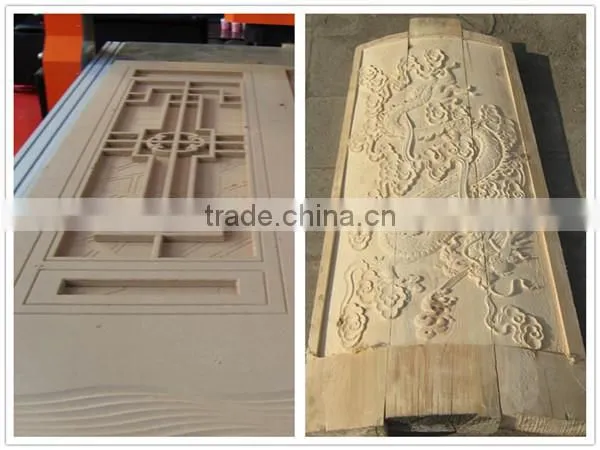

4). relief sculpture and 3D engraving.
Features:
1),3kw water cooling spindle(top brand in China), big strength, long life, and low noise.
2),Popular NCstudio controller connected with computer, it’s with USB interface,both easy operation and convenient.

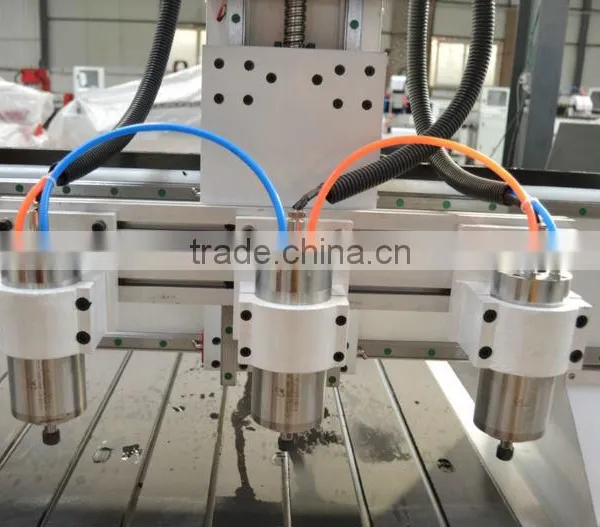

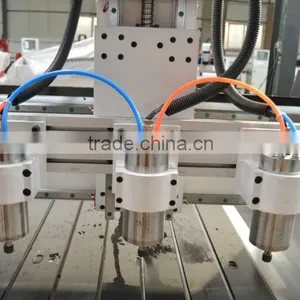

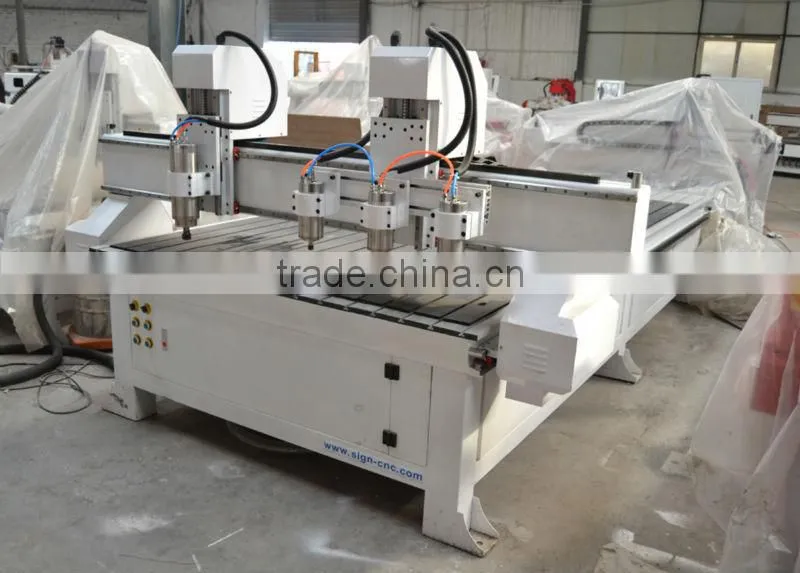

3),Four heads can work at same time, it’s suitable for wood doors, windows, or other wood
furniture with same patterns, high efficiency.
4),Top brand HIWIN linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.
Technical parameters:
Model NO. |
SIGN-1325-4 CNC Router |
Table Size |
1900mm*3100mm |
X Y Z Traveling Area |
1300mm*2500mm*200mm |
Table Structure |
Aluminum T-Slot |
Spindle Power |
3KW Water Cooling |
Max. Spindle Speed |
24000 r/min |
Max. Traveling Speed |
15000mm/min |
Max. Working Speed |
8000mm/min |
Processing Accuracy |
±0.025mm |
Reposition Accuracy |
≤0.025mm |
Driving System |
Stepper Motor |
Command Language |
HPGL, G Code |
Operation System |
NCSTUDIO |
Working Voltage |
AC220V, 50HZ |
Net Weight/Gross Weight |
360KGS / 420KGS |
Package Dimension |
3320mm*2030mm*1800 mm |
Packing:
Samples:

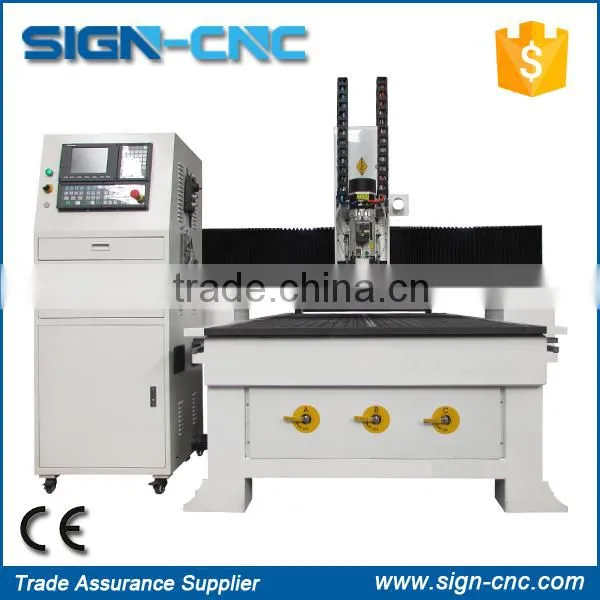

More other machines:
| SIGN-1325 ATC | SIGN-1325 cnc |
|
|
| SIGN-6090 cnc | SIGN-1530 rotary |
|
|
Welcome to visit our factory!
Our company:
FAQ:
1.What is CNC routing?
CNC Routing is a manufacturing process by which a router is controlled by a computer to cut a sheet of material. CNC stands for computer numerical control. Computer conrolled movement of the machine is based on the Cartesian coordinate system (X, Y, Z) allowing for three dimensional shaping.
A CNC router is similar to a plotter which moves a pen across a surface along the X and Y axes to create a drawing. But a CNC router moves a cutting tool across a large table along the X and Y axes as well as up and down along the Z axis. This allows the router to create pocket cuts into the material.
The cutting tool looks like a drill bit, but unlike a drill bit a router is designed to cut from the sides as well as the tip. The router, also referred to as a spindle, is the motor that spins the cutter.
2.How long will my CNC order take to arrive?
CNC orders will generally be made within one to two weeks.
Shipping time depends on your location, but will usually take between one day and one week.
