4070 cnc Stone /marble carving machine
- 200 Set / Sets per Month
- QingDao
- Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGN CNC | Model Number: | SIGN-4070 | Voltage: | AC220V/50HZ |
Power(W): | 2.2KW | Dimension(L*W*H): | 400*700mm | Weight: | 200kg |
Certification: | CE ISO | Warranty: | two years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

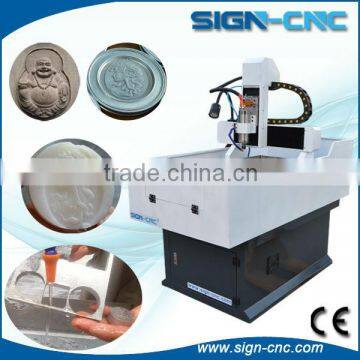

4070 cnc Stone /marble carving machine
CNC Router machine features:
1. Lathe bed is cast wholly with aluminum alloy and will not deform.
2. Desktop, small, easy to move, smart working job with high precision.
3. High speed driver stepper motor could enhance work efficiency.
4. DSP off-line working ,more convenient .
5. Emergency button enhance the security.
standard part:
Technical Parameters
NO. | Model | SIGN-4070 |
1 | X,Y,Z Working Area | 400x700x120mm |
2 | Table Size | 580X720mm |
3 | XYZ Positional Accuracy | ±0.03/300mm |
4 | XYZ Repeatiblity Accuracy | ±0.05mm |
5 | Lathe Structure | Cast Aluminum lathe bed |
6 | X, Y, ZStructure | Taiwan Hwin Round Guide Rail |
7 | Transmission | Original TBI Ball Screw |
8 | Table Surface | T slot with PVC + aluminum extrusions |
9 | Gantry Structure | Cast Aluminum Gantry |
10 | Max. Speed | 0-6000mm/min |
11 | Max. Working Speed | 0-3000mm/min |
12 | Spindle Power Motor | 2.2kw |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Mode | Leadshine 872 Stepper Motor |
15 | Working Voltage | AC220V/380V, 50/60Hz |
16 | Command | G code, *uoo, *mmg, *plt |
17 | Operating System | NC Studio System or DSP System or Marh3 CNC |
18 | Interface | USB/Internet Line |
19 | Collet and Tools | ER11, φ3.175, φ6 |
20 | X,Y Working Delicacy | <0.01mm |
Machine Samples

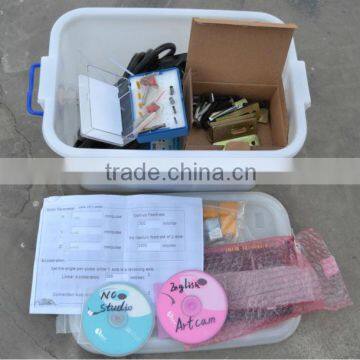

Package parts
1.English software, user manual and operation CD
2.24 hours technical support by e-mail, calling or door-to-door service
3.Machine part is warrantry within peroid.
4.Our techinican slove problem in time for you.
customer feedback:
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
