cheap mini engraving machine for hard metal
cnc router Machine Features

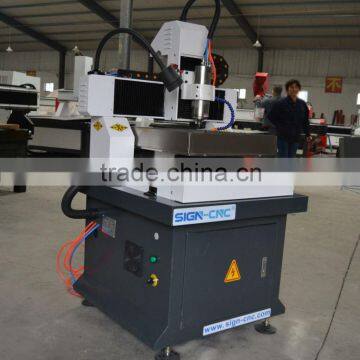

1.SIGN-4040 is the table type CNC router, is the best choice for small piece materials working, can use it in the office or at home.
2. This mini desktop machine is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.
2. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.
3. The machine with T-slot table, holding the materials with clamps, High precision, can work on wood, plastics, acrylic, even metal.
cnc router Technical Parameters
Model |
SIGN-4040 CNC Router |
X,Y,Z Working area: |
400*400 *120mm |
Table Surface: |
T-slot table |
Frame: |
Cast Iron |
X, Z Structure: |
Round rails and Ball Screw, |
Y Structure: |
Ball Screw, Hiwin Rail Linear Bearings |
Max. Power Consumption: |
0.8 KW (Without spindle) |
Max. Rapid Travel Rate: |
8000mm/min |
Max. Working Speed: |
5000mm/min |
Spindle Power: |
2.2kw water cooling spindle |
Spindle Speed: |
0-24000RPM |
Drive Motors: |
Stepper system |
Working Voltage: |
AC220V/50/60Hz,1 Phs |
Command Language: |
G Code |
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
Software Compatibility: |
Type3/UcancameV9 software,(Option: Artcam software) |
Running Environment Temperature: |
0 degree - 45 degree |
Relative Humidity: |
30% - 75% |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
X,Y,Z Repositioning Accuracy: |
±0.01 |
X,Y Resolution |
<0.01mm |
Guarantee |
One year |
parts of cnc router machine

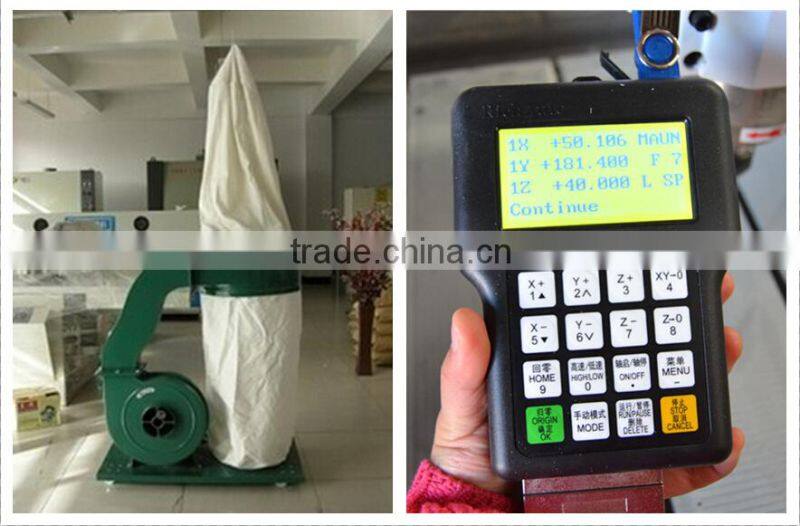

optional part
1.DSP control panel( offline control by DSP )
2.dust colletor (keep machine worktable and body clean)
cnc router machine made sample
cooper and alumium ,stone mould sample
1.We offer life-long technical support by call, email
2. Our technicians & Me can give you remote guide online (Skype or MSN)
3. We can record videos of operating the machine
4. Free training course in our factory
5. Engineer available to service machinery overseas
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: How can operate this machine first time?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what shouldi do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
if more question ,please contact us :
