400mm * 400mm and 600mm * 600mm rputer cnc sheet metal cutting machine
- 300 Set / Sets per Month
- Qingdao
- Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SIGN CNC | Model Number: | SIGN-4040 | Voltage: | 220V/380V |
Power(W): | 2.2kw water cooling spindle | Dimension(L*W*H): | 1000*1000*1350mm | Weight: | 250kg |
Certification: | CE / ISO | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description

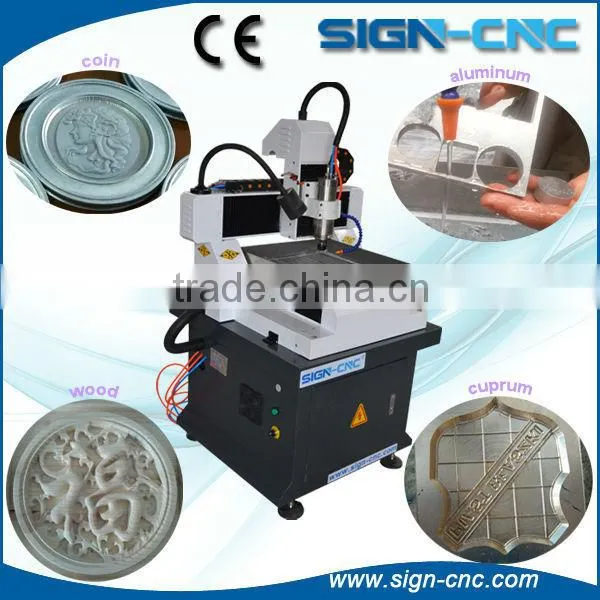

400mm * 400mm and 600mm * 600mm rputer cnc sheet metal cutting machine
For this machine type size have 400*400mm/600*600mm/400*700mm
Big size machine have
600*900mm/1300*1200mm/1300*1800mm/1300*2500mm/2000*3000mm and so on
cnc router metal carving machine Features:
1.---Working area is 400*400*120mm / 600*600*120mm
2.---Z axis feeding height is 120mm
3.---Whole cast iron
4.---Hiwin/TBI brand square guide rails and ball screw
5.---T-slot table.
6.---2.2 or 3.0 kw water cooling, Low noise high rotated speed (24000rpm).
7.---Continuing working after the break point/power failure, lower the rejection rate.
8.---NCstudio control system (DSP and Mach3 are option).
9.---Dustproof for three axis
10.--Leadshine stepper motor and driver
11.--Stainless water tank
12.--CE certificate
13.--LED Flashlight for spindle.
14.--Movable working table.
15.--Tool box for cnc router.
Applicable Industries and materials:
Advertising industry: acrylic, double color boards, PVC, ABS, aluminum composite panels, kind of sign, chest signs, texts mould, trademark materials.
Arty and crafts: Artificial stone, engrave kind of texts , patterns on souvenirs.
Mold processing: Metal and stone models building, physical model, hot stamping mould, trace injection mould, shoes mold, badges, embossed mold, biscuit, chocolate candy mold.
Metal: engraving and cutting, mainly for metal mould making
Technical Parameters:
Model | SIGN-4040 / 6060 CNC Router |
X,Y,Z Working area: | 400*400*120mm/600*600*120mm |
Table Surface: | Aircraft aluminum T-slot table |
Frame: | Inblock cast |
Transmission | Ball screw for X Y Z-axis ( YYZ-axis: #1605) |
Max. Rapid Travel Rate: | 7000mm/min |
Max. Working Speed: | 5000mm/min |
Spindle Power: | 2.2kw water cooling spindle |
Spindle Speed: | 0-24000rpm |
Driving motor: | Stepper motor |
Working Voltage: | AC220V/50/60Hz |
Command Language: | G Code *Uoo *mmg *plt HPGL |
Control System: | NcStudio (options: DSP /Mach3 PC Software) |
Software Compatibility: | Type3/UcancameV9 software,(Option: Artcam software) |
Running Environment Temperature: | 0 - 45 degree |
Relative Humidity: | 30% - 75% |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z Resetting Accuracy: | ±0.01 |
X,Y Resolution | <0.01mm |
Collet: | ER 20 |
Guarantee | One year |
Machine parts:
Option machine parts:
1. Servo motor and driver is optional. Famous brand China seevo or Japaness Yaskawa and Panasonic servo
2. Rotary is option to engraving the cylinder materials
3. DSP off line controller, you can control the machine off line through the DSP controller. More convenience
4. Oil lubrication system is option, it can lubricate the X Y Z axis rails.
Video:
/watch?v=sLYTOfMmnMg&index=26&list=PL5W6tnA3FMRTJN4upGfKkotI_Px3Xq9xY
/watch?v=6BPD3UK3Rdc&index=6&list=PL5W6tnA3FMRTJN4upGfKkotI_Px3Xq9xY
Samples display:

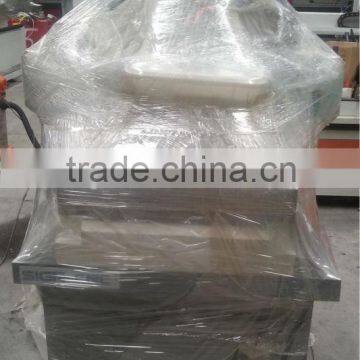

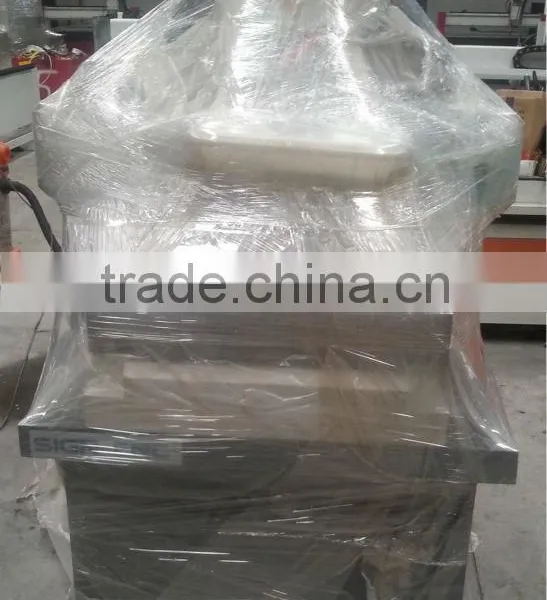

Packing :
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case( The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
Our Services:
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
About Us:
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
FAQ
1.Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.
2.Q: This is my first time to use this machine, is it easy to operate?
A: There are guide videos that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.
