Video Door Phone for Villa with 4 inch CRT or 3.5 inch LCD

Specifications

video door phone for villa
Dual calling, Surveillance, intercom and door release are main functions.

video door phone for villa with 4 inch CRT or 3.5 inch LCD



Model No: sipo-006-823



Specifications:



1)One door station can support up to 3pcs indoor phones.
(2)Audio indoor phones are compatible.
(3)Dual calling, Surveillance, intercom and remote door unlocking are main functions.
(4)Color TFT screen display, 3.5' size are available.
(5)LED in the door station provide a clear picture even in night time.
(6)30 seconds ring tones are available, 30 seconds active surveillance, 120 seconds intercom
(7)Double Ding-Dong ring or chord melody rings are available
(8)Handsset indoor phone;
(9)Avoid to unlock by error if no calling.
(10)Unique design to unlock the door.
(11)Prevent to unlock by taking apart the outdoor unit because the outdoor unit has no unlock line. This system unlock by indoor unit.
(12) Power Source: DC 12V
(13)Operating temperature: -40C~70C



Model No.	SIPO-006	SIPO-006C
Function	Calling, Talk.
Application	match to all monitors
Housing/Panel	Metal
Camera	camera CCD/COMS color or B/W
Installation method	Flush mounting
Specifications
Image Device	1/3” B/W CCD/CMOS	1/3” Color CCD/CMOS
Power supply	DC12V
Sence illumination	0.1Lux(300m from the camera)
Max. wiring distance	50m/160feet(22AWG,4*0.5mm/2,4*0.75mm/2,Rvv4 cable)
Relative humidity	45%~95%
Ambient tempreature	75°~-40°
Working current	230±20mA
Resolution	380TV lines
Video output	1Vpp 75ohm
Camera Angular	H 60°V 50°
Wiring	4wires
Packing information
Products dimension	185*118*63MM
Inner package	200*129*72MM
Carton size	415*385*400MM
Protection level	IP54
Weight	NW: 0.51kg      GW:0.6kg
Certificates	CE or other required certificates
Business mode	Final products,SKD/CKD, OEM/ODM available





Compatibility
   Our video door phones are compatible with all commax models.

   All our outdoor camera can match all of our indoor monitors and commax  indoor monitors.







payment terms: L/C, T/T, O/A, and so on.





Shipping



Any shipping way you can choose, UPS/ FEDEX/ DHL/ EMS.

PS: the shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.

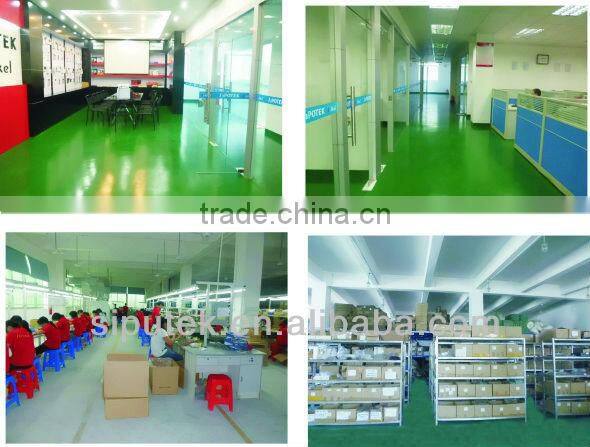

Factory



        Shenzhen Sipo Technology Co.,ltd, was founded in 2004, and specializes in manufacturing and selling video door phone, cctv camera and DVR, etc

       We firmly promise top quality,competitive price, quick delivery and before/after sale services.

       also available for OEM/ODM services









If you have any questions please contact us by email or TradeManager, most emails are responded within 24 business hours.
