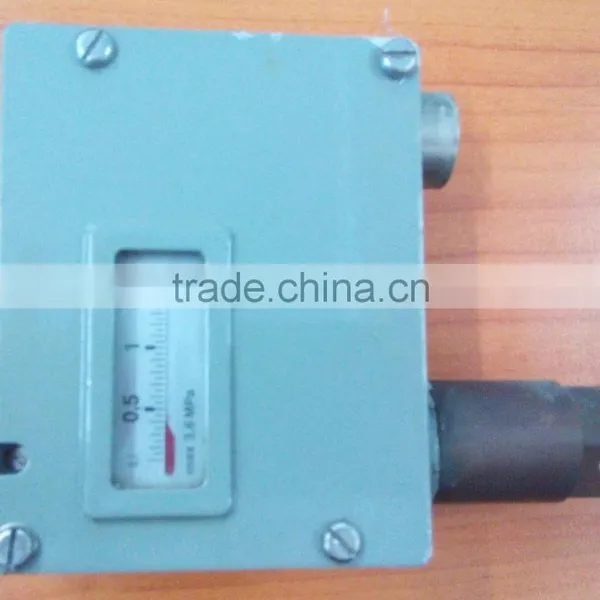

Trafag Pressostat 900.2379

Name: Trafag Pressostat 900.2379
Brand: trafag
SKU: 118473585

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

trafag

Model Number:

900.2379

Uni Marine Services Pte. Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name trafag

Model Number 900.2379

Pressostat

Model: 900.2379

Maker: trafag

Bereich: 0.1-1.6 MPa

Range: 250 V~ 10 (3) A

Temperature: 60°c

Specification Series P/PS 900/904/912

Accuracy	Repeatedly Scale accuracy typ. Switching differential	± 1.0 % FS typ. ± 2.0 % FS typ. SEE table
Environment conditions
	Ambient temperature	-25°C ... +70°C
	Media temperature	-40°C ... +150°C
	Storage temperature	-25°C ... +85°C
	Protection	IP65
	Humidity	Max. 95% relative
	Vibration	switch 23/26, 5...25 Hz: ±1.6 mm 25...100 Hz: 4g ranges 72, 73, 75, 5...50 Hz: 20 mm/sec.
	Shock	50g/ 11ms
Mechanical Data
	Sensor	See ordering information
	Housing	AlSi10Mg/ Epoxy coated
	Sealing	NBR
	Housing seal	EPDM 75 Sh
	Screwed cable gland	Brass nickel plated
	Male electrical plug	PA, Polyamide
	Mounting torque	max. 25 Nm
	Installation	any position
	Weight	~710 g
Microswitch	Rating Resistance of Insulation	SEE Table > 2 MΩ
	Dielectric strength	U≤250 V: 1.45 kV/ U≤500V: 2 kV terminal ground
	Life time (mechanical)	Microsoft 10/11: 20 Mio. cycles Microsoft 21: 0.5 Mio. cycles Microsoft 23/26: 0.3 Mio. cycles
Electrical connections
	Electrical connections	Terminal screw
	Cable gland	M20x1.5 Cable -Φ6...13 mm
	Terminal screw	3x 1.5...4 mm2
