Specifications
Construction galvanized welded wire mesh1.low carbon steel wire,SS wire
2.wire dia.:0.5mm-2.6mm
sh size:1/4"*1/4"-6"*6"

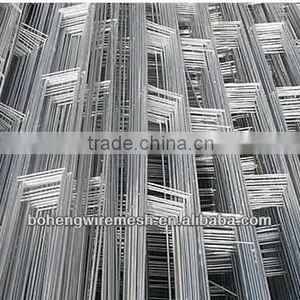

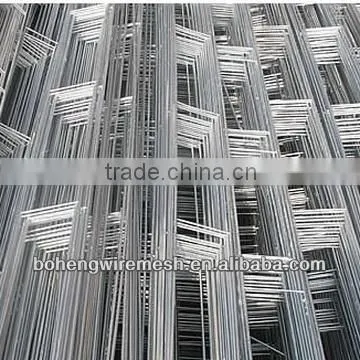

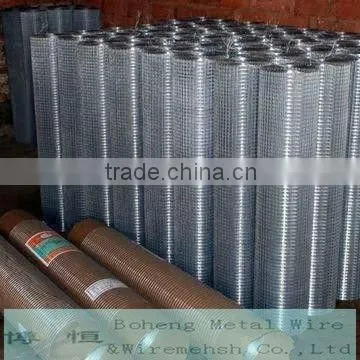

Construction galvanized welded wire mesh
THE FEATURE OF WELDED WIRE MESH
1.Other name:welded wire mesh sheet/welded wire mesh roll
2.Material:high quality low carbon steel wire/stainless steel wire
3.Zinc coating:20-250g/m2
4.Wire diameter:BWG12-BWG25
5.Mesh inch:1/4"*1/4"---6"*6"
6.Coating style: Electro Galvanized before welding, Electro Galvanized after welding, Hot galvanized before welding, Hot galvanized after welding, PVC coated.
7.Packing:each roll packed by water proof paper/each roll shrink wrapped/other packing method may be acceptted after confirmation/other sizes may e produced after confirmation.
THE SPECIFICATION OD WELDED WIRE MESH:
Specification List of Welded Wire Mesh: | ||
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric unit(mm) |
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note: | ||
THE APPLICATION OF WELDED WIRE MESH:
Used: Industry and Agriculture Building, Transportation and Mining for all such purposes as Poultry Houses, Egg Baskets, Runway Enclosures, Draining Rack, Fruit Drying screen, Fences, etc.
OUR MARCHINE:
LOAD IN CONTAINER:
