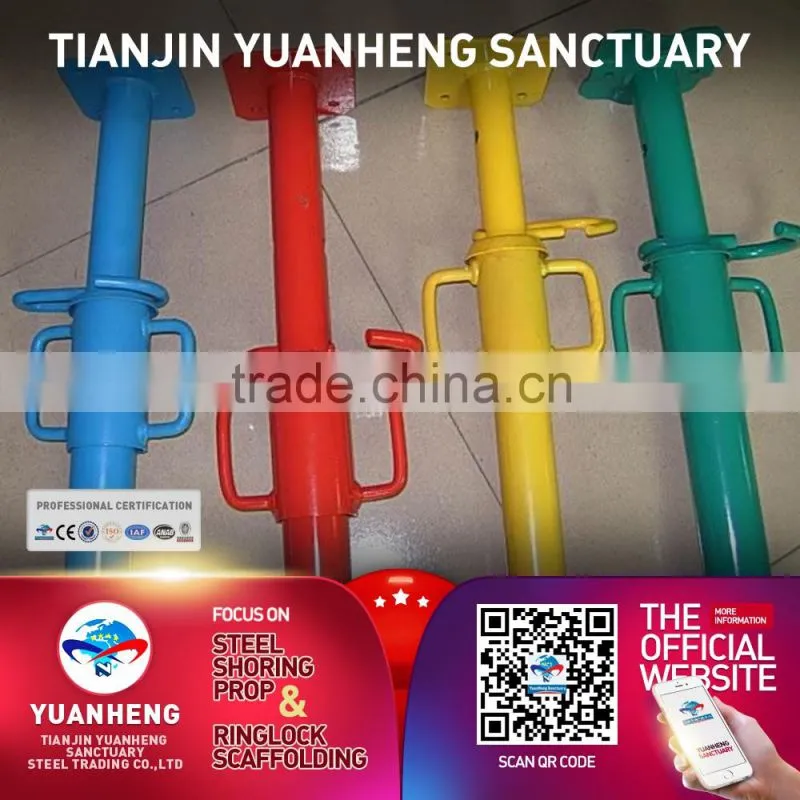

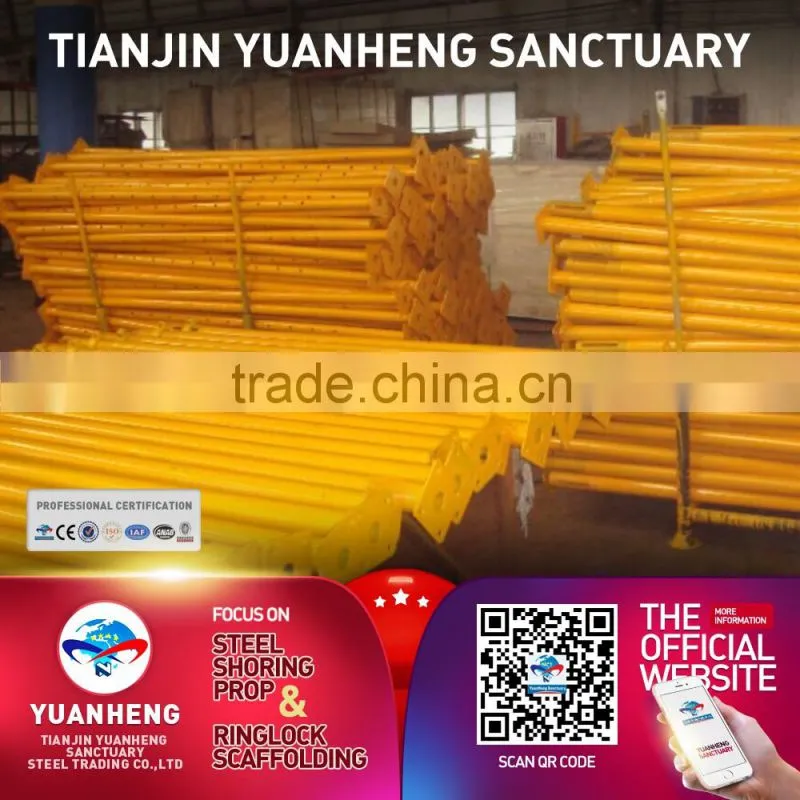

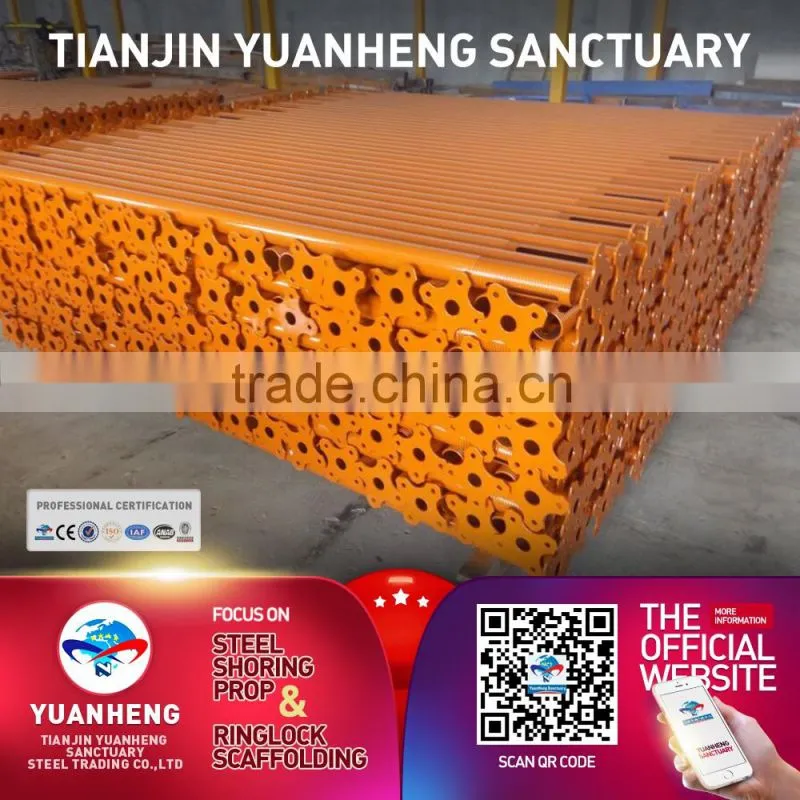

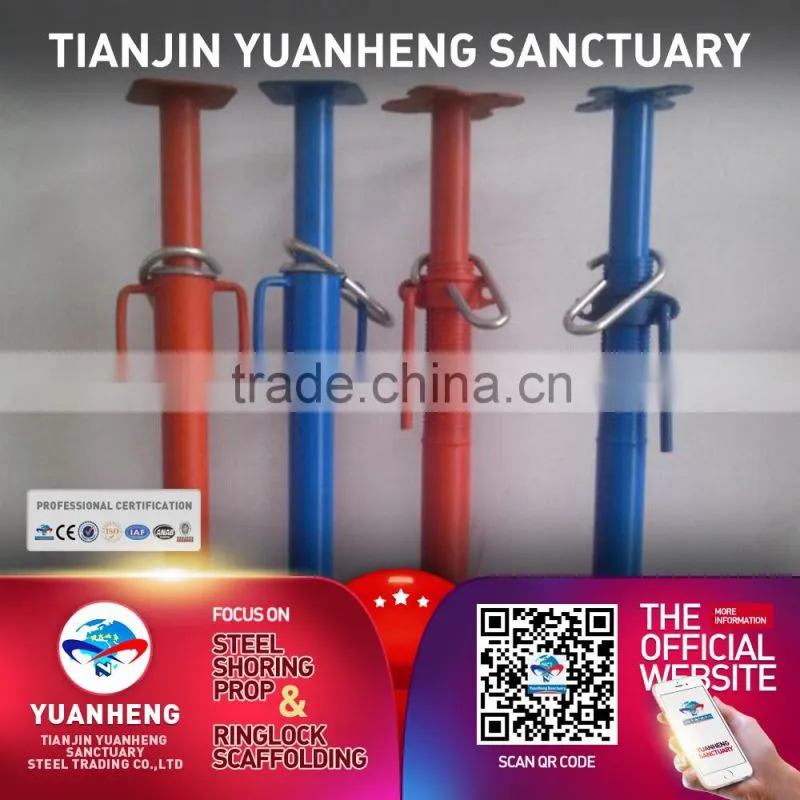

3.0mm electro galvanized scaffolding prop
1.Raw Material:
Q195 , Q235 ,Q345 Steel.
2.Application:
Scaffolding prop is applied to vertically support system in the construction to support the scaffolding formwork, such as the floor construction.
3.Structure:
Scaffolding prop is mainly made up of bottom plate,outer tube, inner tube, swivel nut,cotter pin,upper plate and the accessories of folding tripod,head jack, the structure is simple and flexible.
4.Convenient:
Scaffolding prop is simple of the structure, so it is easy to assemble and disassemble.
5.Adjustment:
Scaffolding prop is adjustable because of the outer tube and inner tube, the inner tube could extend and shrink in the outer tube, and then it could be adjusted according to the required height.
6.Economy:
Scaffolding prop could be re-used, and once useless, the material could also be recovered.
7.Practical using:
Scaffolding prop could be adjusted to required height according to the different height of the constructions.
|
Brand |
YS |
Material |
Q235 |
Surface treatment |
painted, powder coated, galvanized |
Color |
red, blue, green, yellow |
Manufacture Process |
Pipe cutting-pipe holes drilling-plate pressing-screw threading-arc welding-painting-packing |
Adjustable Length |
1920mm-3500mm 2520mm-3900mm 2920mm-4500mm 3420mm-5000mm |
Inner tube |
48mm |
Outer tube |
60mm |
Tube thickness |
2mmmm |
Base Plate |
120mmx120mmx5mm |
Holes Interval |
100mm |
Load Capacity |
1.5-3tons |
Application |
concrete construction support |
Main market |
Middle East, Africa, South America etc. |
