Hot Dipped Galvanized Barbed Wire for Fence:
1.Factory Sales
2.wire gauge:14x16
3.hot galvanized
4.ISO9001:2008
Production description
1.Material: Galvanized steel wire,stainless steel wire, PVC coated wire
2.Types of Barbed Wire:
* Galvanized Barbed Wire

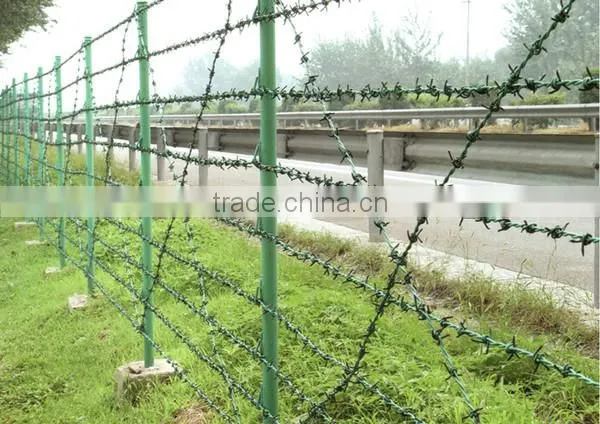

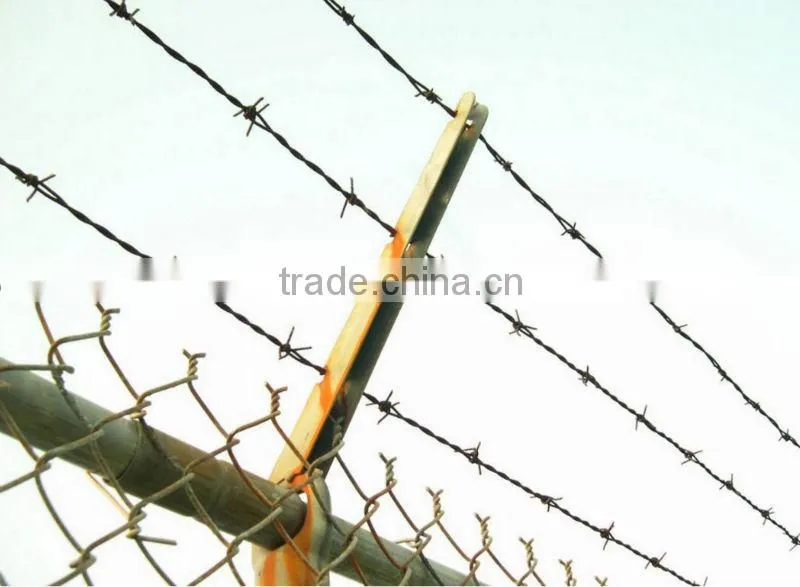

Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.

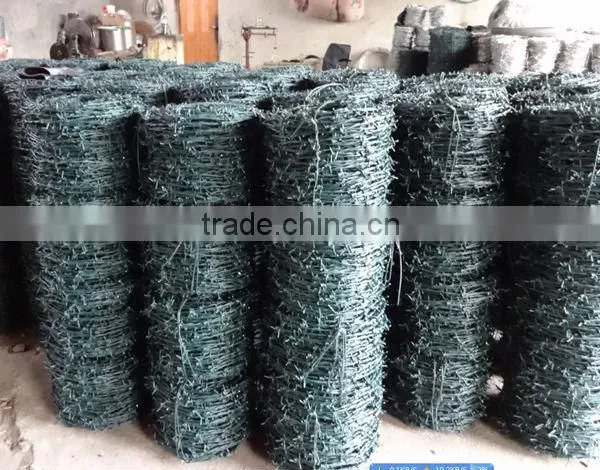

* PVC Coated Barbed Wire
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray
Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth
Common Specification:
Galvanized barbed wire:
- Boheng produces zinc coated barbed wire in IOWA type, with 2 strands, 4 points. Barbs’ distance is 3-6 inches(tolerance +-1/2”
- Boheng produces PVC barbed wire,colour :green, white, black,etc
- Galvanized barbed iron wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
- Common specifications;
Barbed rope |
Wire Gauge (SWG) |
3’’ Barbs spacig |
4’’ Barbs spacing |
5” Barbs spacing |
6’’ Barbs spacing |
|
Weight(g/m) |
12x12 |
164.9 |
147.9 |
137.5 |
130.9 |
12x14 |
136.4 |
126.5 |
120.5 |
116.6 |
|
12-1/2x12-1/2 |
144.5 |
129.5 |
120.4 |
114.6 |
|
12-1/2x14 |
123.3 |
113.4 |
108.4 |
104.6 |
|
13x13 |
125.2 |
112.4 |
104.5 |
99.4 |
|
13x14 |
113.1 |
103.2 |
97.2 |
93.3 |
|
13-1/2x14 |
104.1 |
97.2 |
84.3 |
84.3 |
|
14x14 |
95.6 |
85.8 |
80.5 |
75.9 |
|
14-1/2x14-1/2 |
83.4 |
74.8 |
69.5 |
66.2 |
|
15x15 |
72.0 |
64.5 |
60.0 |
57.1 |
