Hot Dipped Galvanized Barbed Wire for Fence:
1.Factory Sales
2.wire gauge:14x16
3.hot galvanized
4.ISO9001:2008
Production description
1.Material: Galvanized steel wire,stainless steel wire, PVC coated wire
2.Types of Barbed Wire:
* Galvanized Barbed Wire

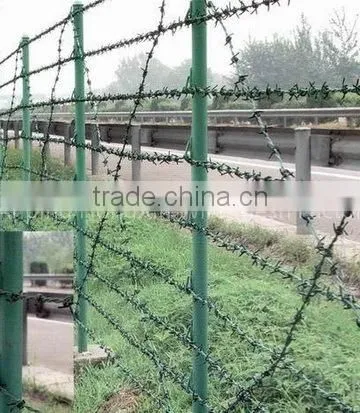

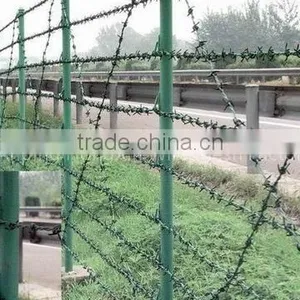

Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.
* PVC Coated Barbed Wire
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray

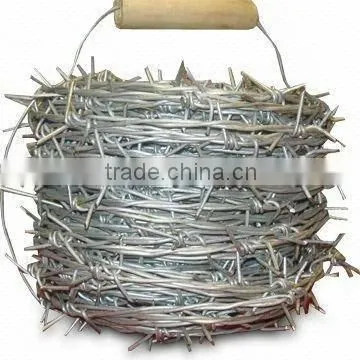

Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth
Common Specification:
Galvanized barbed wire:
- Boheng produces zinc coated barbed wire in IOWA type, with 2 strands, 4 points. Barbs’ distance is 3-6 inches(tolerance +-1/2”
- Boheng produces PVC barbed wire,colour :green, white, black,etc
- Galvanized barbed iron wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
- Common specifications;
Barbed rope |
Wire Gauge (SWG) |
3’’ Barbs spacig |
4’’ Barbs spacing |
5” Barbs spacing |
6’’ Barbs spacing |
|
Weight(g/m) |
12x12 |
164.9 |
147.9 |
137.5 |
130.9 |
12x14 |
136.4 |
126.5 |
120.5 |
116.6 |
|
12-1/2x12-1/2 |
144.5 |
129.5 |
120.4 |
114.6 |
|
12-1/2x14 |
123.3 |
113.4 |
108.4 |
104.6 |
|
13x13 |
125.2 |
112.4 |
104.5 |
99.4 |
|
13x14 |
113.1 |
103.2 |
97.2 |
93.3 |
|
13-1/2x14 |
104.1 |
97.2 |
84.3 |
84.3 |
|
14x14 |
95.6 |
85.8 |
80.5 |
75.9 |
|
14-1/2x14-1/2 |
83.4 |
74.8 |
69.5 |
66.2 |
|
15x15 |
72.0 |
64.5 |
60.0 |
57.1 |
- Common specifications;
Barbed rope |
Wire diameter(mm) |
3’’ Barbs spacing(mm) |
4’’ Barbs spacing(mm) |
5’ Barbs spacing(mm)’ |
6’’ Barbs spacing(mm) |
|
Weight(g/m) |
12x12 |
164.9 |
147.9 |
137.5 |
130.9 |
12x14 |
136.4 |
126.5 |
120.5 |
116.6 |
|
12-1/2x12-1/2 |
144.5 |
129.5 |
120.4 |
114.6 |
|
12-1/2x14 |
123.3 |
113.4 |
108.4 |
104.6 |
|
13x13 |
125.2 |
112.4 |
104.5 |
99.4 |
|
13x14 |
113.1 |
103.2 |
97.2 |
93.3 |
|
13-1/2x14 |
104.1 |
97.2 |
84.3 |
84.3 |
|
14x14 |
95.6 |
85.8 |
80.5 |
75.9 |
|
14-1/2x14-1/2 |
83.4 |
74.8 |
69.5 |
66.2 |
|
15x15 |
72.0 |
64.5 |
60.0 |
57.1 |
Barbed rope |
Wire diameter(mm) |
3’’ Barbs spacing(mm) |
4’’ Barbs spacing(mm) |
5’ Barbs spacing(mm)’ |
6’’ Barbs spacing(mm) |
|
Weight(g/m) |
12x12 |
164.9 |
147.9 |
137.5 |
130.9 |
12x14 |
136.4 |
126.5 |
120.5 |
116.6 |
|
12-1/2x12-1/2 |
144.5 |
129.5 |
120.4 |
114.6 |
|
12-1/2x14 |
123.3 |
113.4 |
108.4 |
104.6 |
|
13x13 |
125.2 |
112.4 |
104.5 |
99.4 |
|
13x14 |
113.1 |
103.2 |
97.2 |
93.3 |
|
13-1/2x14 |
104.1 |
97.2 |
84.3 |
84.3 |
|
14x14 |
95.6 |
85.8 |
80.5 |
75.9 |
|
14-1/2x14-1/2 |
83.4 |
74.8 |
69.5 |
66.2 |
|
15x15 |
72.0 |
64.5 |
60.0 |
57.1 |
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Barbed Tape Wire Specification: | ||||
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |
| Notes: Standard products are shown in the tables above, special specifications available on request. Standard materials are either galvanized or stainless steel. | ||||
We offers barbed wire with different treatment, like PE or PVC coated.
Technical Info of PVC Coated Barbed Iron Wire:
Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.
