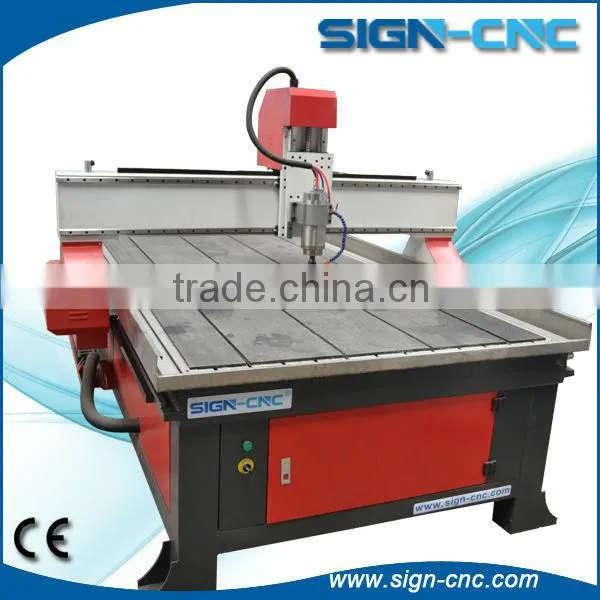

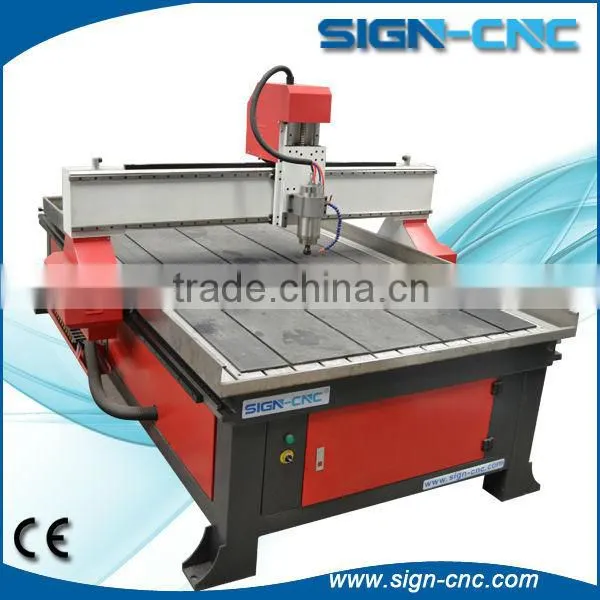

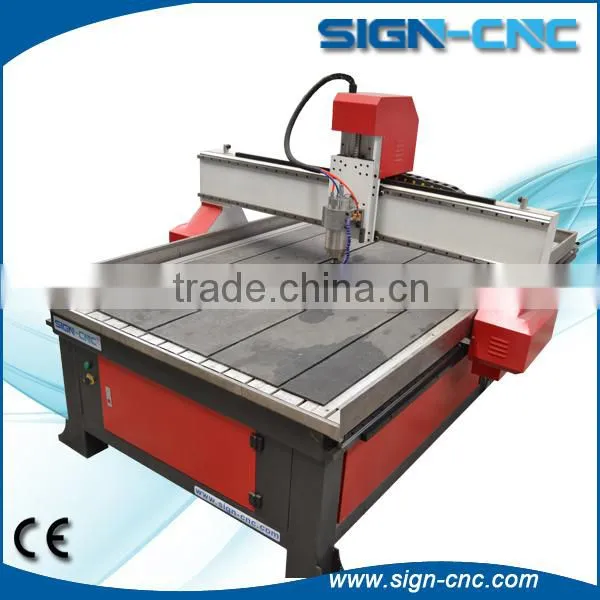

Water tank SIGN 1325A cnc router machine for aluminum/ cnc router for wood and marble
Features
1. CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools;
2,With Taiwan TBI precision automatic anti-backlash ball screw and HIWIN linear guide rail,
ensure that the processing size accurate precision;
3,high-speed and big power stepper motor driver,ensure that cnc router can work 8 to 10 meters/minute;
4,CNC Introduction and friendly user interface, support for Chinese conversion, size input.
make sure it's more easier to operate and maintain machine;
5.With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign making, wood artwork, all material for Sign making, even for wood working.
Applicable Materials
They are not only to engrave and cut on wood ,acrylic ,but also available to engrave the well-bedded arty patterns, texts, characters on adamantine materials such as glass, marble, granite, ceramic tiles,tombstone. The fancy workpieces are widely used on the decoration in family houses, hotels.
Samples
Technical Parameters
Model |
SIGN-1325A CNC Router |
X,Y Working Area |
1300x2500mm |
Operating System |
DSP Control System |
Z Working Area |
150mm |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
X,Y,Z Repositioning Positioning Accuracy |
±0.01mm |

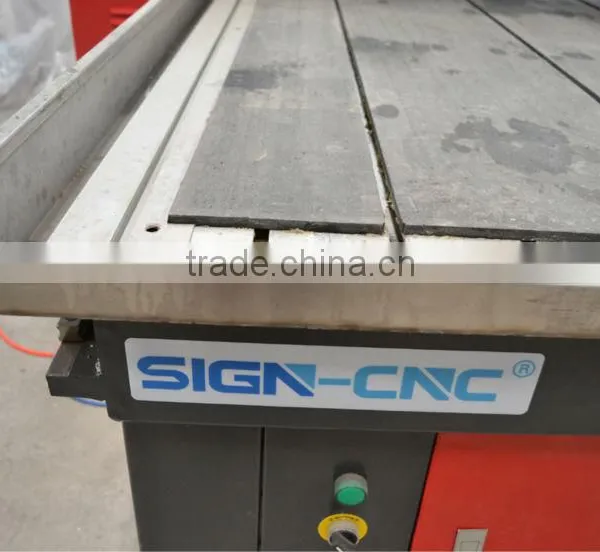

Table Surface |
T-slot Extrusions |
Frame |
Welded Steel Structure |
X,Y, Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
options |
mist cooling system and flume, Vacuum system and Dust collector |
Color |
optional |
Frame structure |
steel structure |
Max.Working Speed |
5m-6m/min |

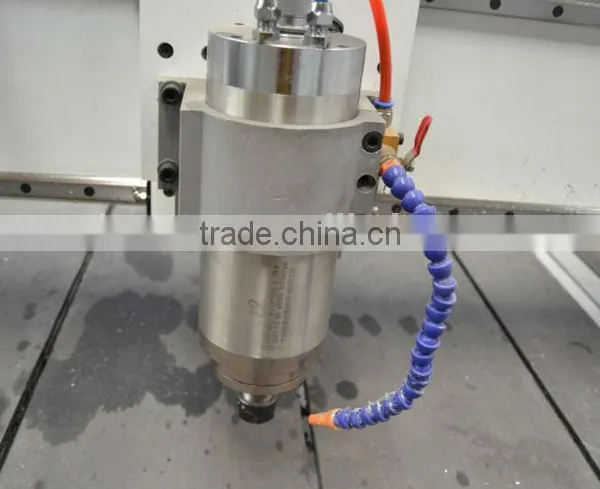

Spindle Power Motor |
3.0 Kw water-cooling (option: air-cooling) |
Spindle Speed |
0-24000rpm |
Drive Motors |
Stepper System (option: Servo) |
Working Voltage |
AC220V/50/60Hz(380V option) |
Command Language |
G code |
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution |
<0.01mm |
Software Compatability |
Type3 software ( option: Wentai software, Artcam software) |

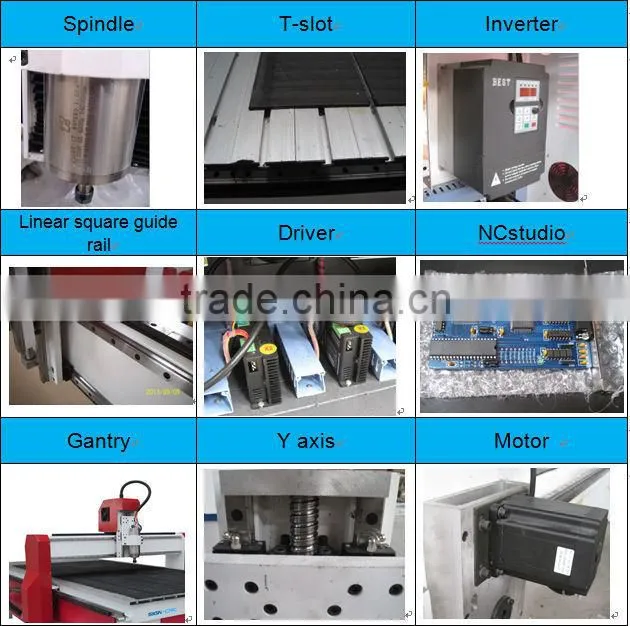

Machine Parts

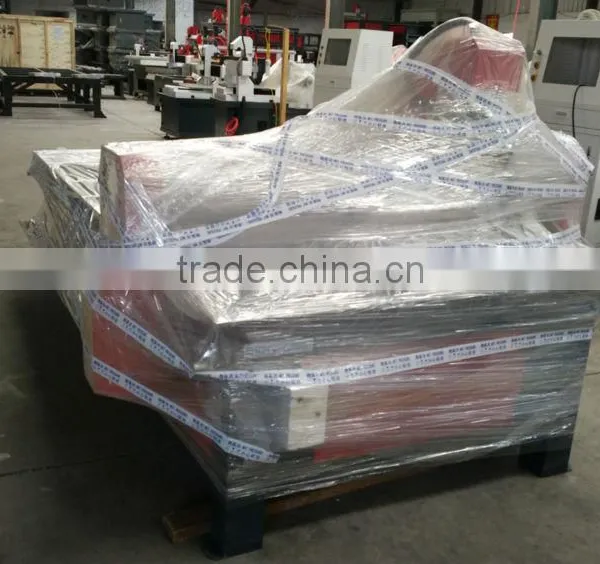

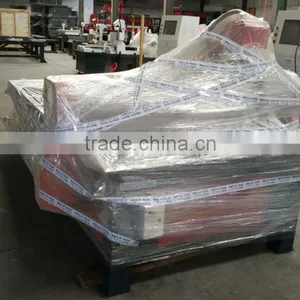

Packaging&Shipping
After Sale Service
1.We are Professional CNC Router Manufacturer and with the development of our factory ,
2.Technical support by phone, e-mail or MSN around the clock
3.Friendly English version manual and operation video CD disk
4.7-15 working days after down payment or full payment
5..Machine will be adjusted before it is delivered , operation disk/CD was included.
6.Our technician can give you remote guide online(Skype or MSN) if you have any question
7.Engineers available to service machinery overseas, seller and buyer discuss the charges
We offer Woodworking Engraving Machine ,Advertising Engraving Machine ,Laser Marking Machine ,Plasma Cutting Machine .Our machines have already found a good sale in Europe and all over the world .
In addition ,If you are interested in our machine ,we will give you more details and competitive price ,and try our best to satisfy you ,we have perfect after-sale service ,We offer professional technician to teach you by on line if you have any question.
We hope we can establish commercial partner in the near future .
Welcome to SIGN CNC
FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
