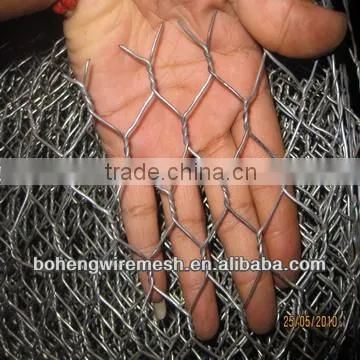

DIFFERENT TYPES OF HEXAGONAL WIRE MESH

Specifications

different types of hexagonal wire mesh
1.galvanized wire and PVC coated wire
2.Wire dia.:2.0-4.5mm
3.Mesh size:3/8"-4"

DIFFERENT TYPES OF HEXAGONAL WIRE MESH

1. Material:

• galvanized iron wire,
• PVC coated wire
• stainless steel wire,
• copper wire and aluminum wire.

 duction method:

• Electro galv. hexagonal wire netting : galv. after weaving
• Electro galv. hexagonal wire netting : galv. before weaving
• Hot dipped galv. hexagonal wire netting : galv. after weaving
• Hot dipped galv. hexagonal wire netting : galv. before weaving
• Pvc coated hexagonal wire netting:  first PVC wire,then weaving
• Pvc coated hexagonal wire netting:  first weaving, then PVC coated in zinc-container.
• Stainless steel hexagonal wire netting: first ss wire, then weaving.

 3.weaving method:

• continuous twist, it also called normal twist.
• reverse twist

4.Specification:

Galvanized hexagonal wire netting mesh Min. Gal.v. G/SQ.M Width  Wire Gauge (Diameter) BWG Inch mm Tolerance(mm) 3/8" 10mm ±1.0 0.7mm - 145 2' - 1M 27, 26, 25, 24, 23 1/2" 13mm ±1.5 0.7mm - 95 2' - 2M 25, 24, 23, 22, 21 5/8" 16mm ±2.0 0.7mm - 70 2' - 2M 27, 26, 25, 24, 23, 22 3/4" 20mm ±3.0 0.7mm - 55 2' - 2M 25, 24, 23, 22, 21, 20, 19 1" 25mm ±3.0 0.9mm - 55 1' - 2M 25, 24, 23, 22, 21, 20, 19, 18 1-1/4" 31mm ±4.0 0.9mm - 40 1' - 2M 23, 22, 21, 20, 19, 18 1-1/2" 40mm ±5.0 1.0mm - 45 1' - 2M 23, 22, 21, 20, 19, 18 2" 50mm ±6.0 1.2mm - 40 1' - 2M 23, 22, 21, 20, 19, 18 2-1/2" 65mm ±7.0 1.0mm - 30 1' - 2M 21, 20, 19, 18 3" 75mm ±8.0 1.4mm - 30 2' - 2M 20, 19, 18, 17 4" 100mm ±8.0 1.6mm - 30 2' - 2M 19, 18, 17, 16

Note: 1.) The above tolerance comply with standard EN10223-2:1997; 2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

4.Application:

GABION BOX

POULTRY FENCE

  5.OUR MACHINE:

PACKING
