Small 4 axis engraving machine 3d cnc router :
Machine parts:
1.---Whole cast iron machine table.
2.---With dust proof on X and Z axis.
3.---Hiwin/TBI brand round rails and 25mm ball screw.
4.---T-slot can be process the different shape materials.
5.---1.5kw/2.2kw/3.0kw water cooling spindle, Low noise high rotated speed (24000rpm).
6.---Continuing working after the break point/power failure, lower the rejection rate.
7.---NCtudio control system.
8.---CE certificate.
9.---Operate software Artcam / Type3 and so on.
10.--Tool box for cnc router.
11.--Desktop tmodel.
12.--Rotary is option. Different size diameter rotary for your choose.
Option:

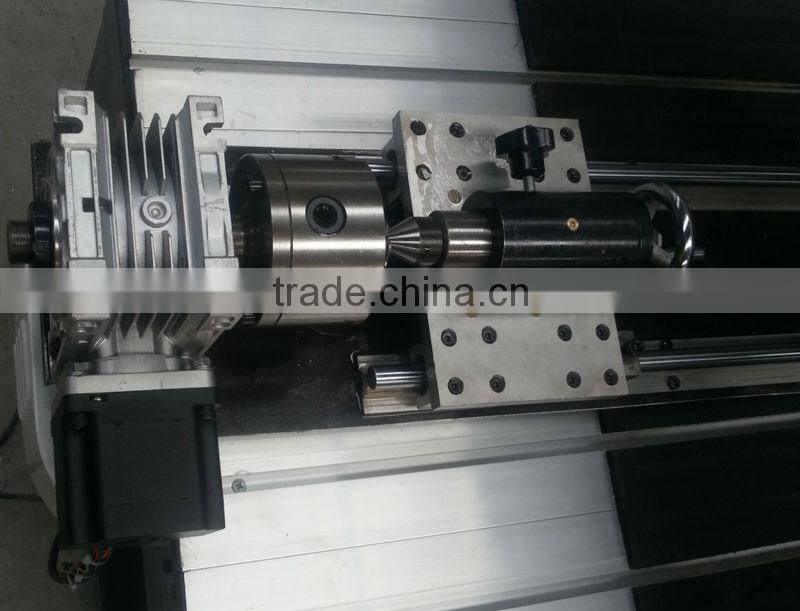

Rotary is option part, 4 axis cnc router with a small or big rotary.
Applicable Industries and materials:
Advertising industry: acrylic, double color boards, PVC, ABS, aluminum composite panels, kind of sign, chest signs, texts mould, trademark materials.
Arty and crafts: Artificial stone , engrave kind of texts , patterns on souvenirs.
Mold processing: Building models, physical model, hot stamping mould, trace injection mould, shoes mold, badges, embossed mold, biscuit, chocolate candy mold.
Technical parameter:
Model |
SIGN-6090 CNC Router |
X,Y,Z Working area: |
600(x)mmx900(Y)mmx120(Z) mm |
Table Size: |
600x900 mm |
Table Surface: |
Aircraft aluminum T-slot table |
Working table: |
Cast Iron |
Transmission |
Ball screw for X Y Z-axis |
Max. Power Consumption: |
0.8 KW (Without spindle) |
Max. Rapid Travel Rate: |
8000mm/min |
Max. Working Speed: |
5000mm/min |
Spindle Power: |
1.5kw water cooling spindle |
Spindle Speed: |
0-24000rpm |
Driving motor: |
Stepper motor |
Working Voltage: |
AC220V/50/60Hz, 1 Phs |
Command Language: |
G Code *Uoo *mmg *plt HPGL |
Control System: |
NcStudio (options: DSP /Mach3 PC Software) |
Software Compatibility: |
Type3/UcancameV9 software,(Option: Artcam software) |
Running Environment Temperature: |
0 - 45 degree |
Relative Humidity: |
30% - 75% |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
X,Y,Z Resetting Accuracy: |
±0.01 |
X,Y Resolution |
<0.01mm |
Collet: |
ER16 |
Guarantee |
One year |
Samples display:

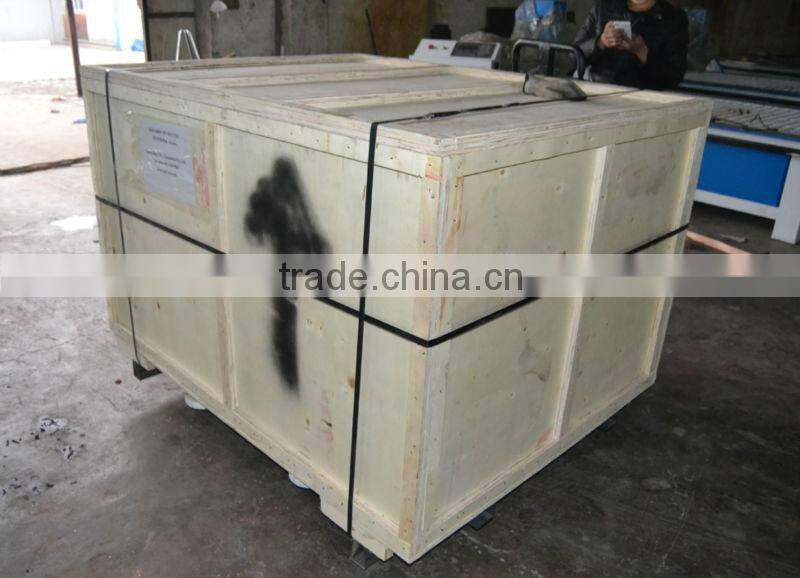

Packing:
Our other hot sale cnc router:
Our Services:
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
Our customers:
About Us:
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for many years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
FAQ
1.Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.
2.Q: This is my first time to use this machine, is it easy to operate?
A: There are guide videos that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.
