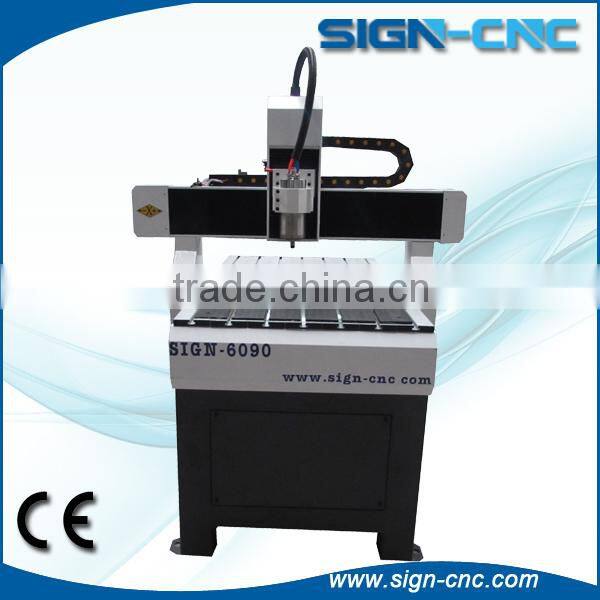

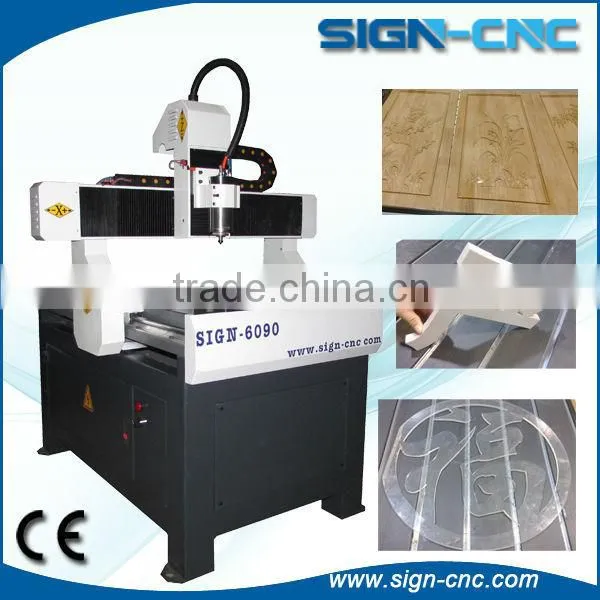

SIGN 6090 wood cnc router mini cnc router for advertising, hobby wood router
cnc router 6090 working video:
Applications
1. Decoration industries: advertising boards and sign making.
2. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on.
3. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
mini desktop cnc router Features:
1.SIGN 6090 is best choice for small pieces woodworking, with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working longer time.
2. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.
3. High-performance driven motor to ensure that the machines high speed and accuracy.
4. The machine with T-slot table, holding the materials with clamps, High quality, can work on wood, plastics, acrylic, and soft metal.
Technical Parameters
1 |
X,Y,Z Working Area |
600x900x150mm |
2 |
Table Size |
600X900mm |
3 |
X,Y,Z Traveling Accuracy |
±0.03/300mm |
4 |
X,Y,Z repositioning Accuracy |
±0.02mm |
5 |
Table Surface |
Aluminum |
6 |
Frame |
cast iron |
7 |
X, Z Structure |
Ball Screw |
8 |
Y Structure |
Hiwin Rail Linear Bearings or Ball Screw |
9 |
Max. power Consumption |
0.8Kw |
10 |
Max.Rapid Travel Rate |
8000mm/min |
11 |
Max.Working Speed |
6000mm/min |
12 |
Spindle Power Motor |
1.5Kw water cooling spindle |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Stepper system |
15 |
Working Voltage |
AC220V/50/60Hz/AC380V 50HZ |
16 |
Command Language |
G code |
17 |
Operating System |
NCstudio System |
18 |
Software Compatibility |
Type3 software |
19 |
Running Environment |
Temperature: 045 Relative humidity: 30%75% |
20 |
Packing Size |
1350 x 1050 x 950mm |
21 |
Net Weight |
230KG |
22 |
Gross Weight |
270KG |

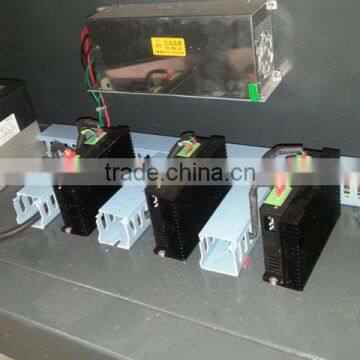

mini desktop cnc router Machine Parts

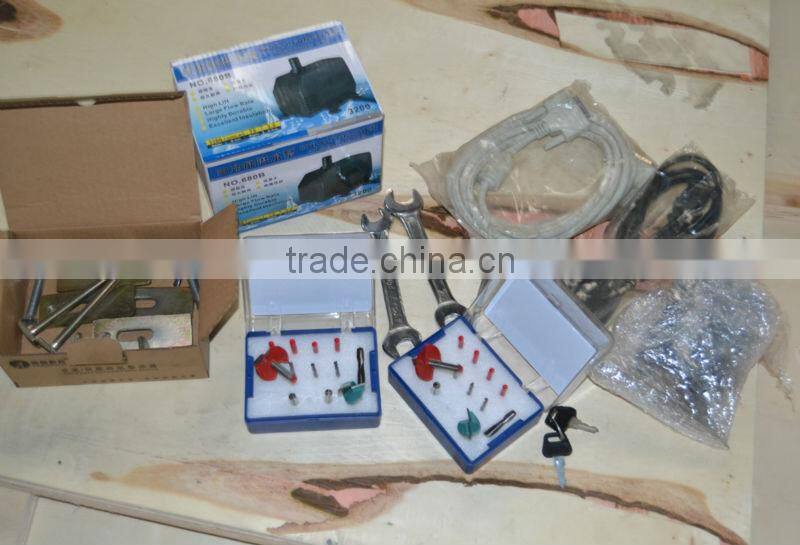

The tool box and cutters
Machine Samples

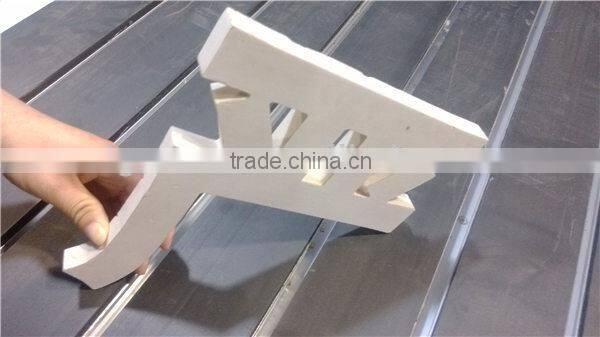

acrylic samples

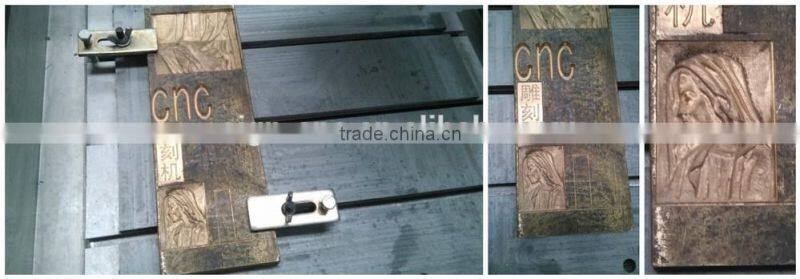

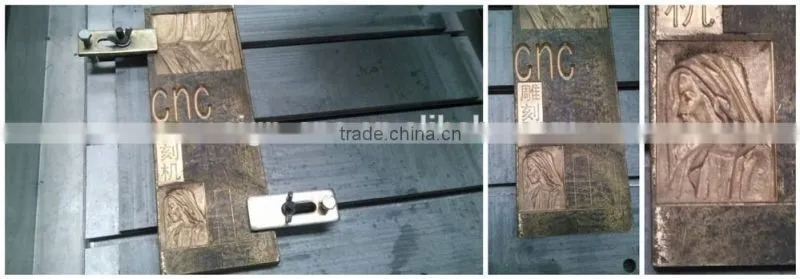

metal engraving samples

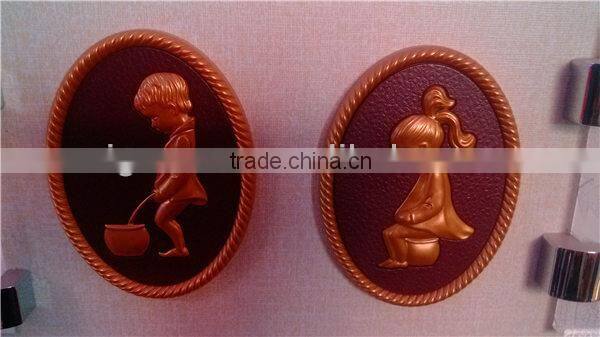

3d wood samples

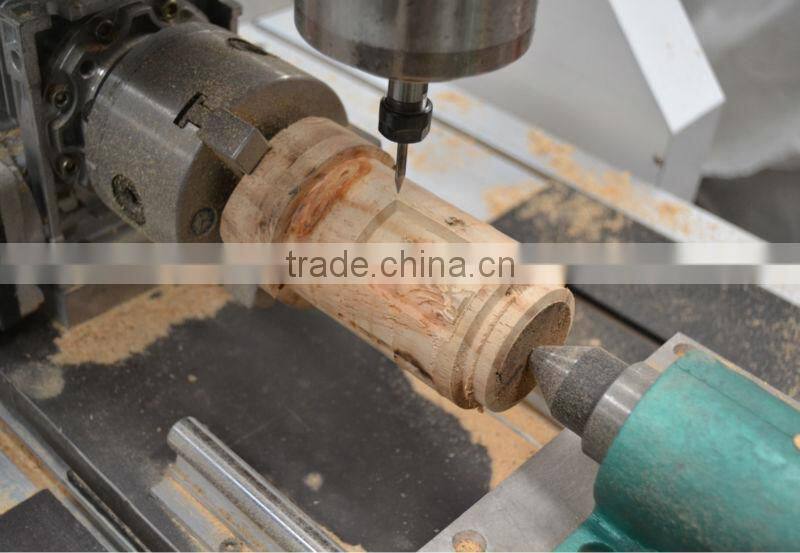

rotary system

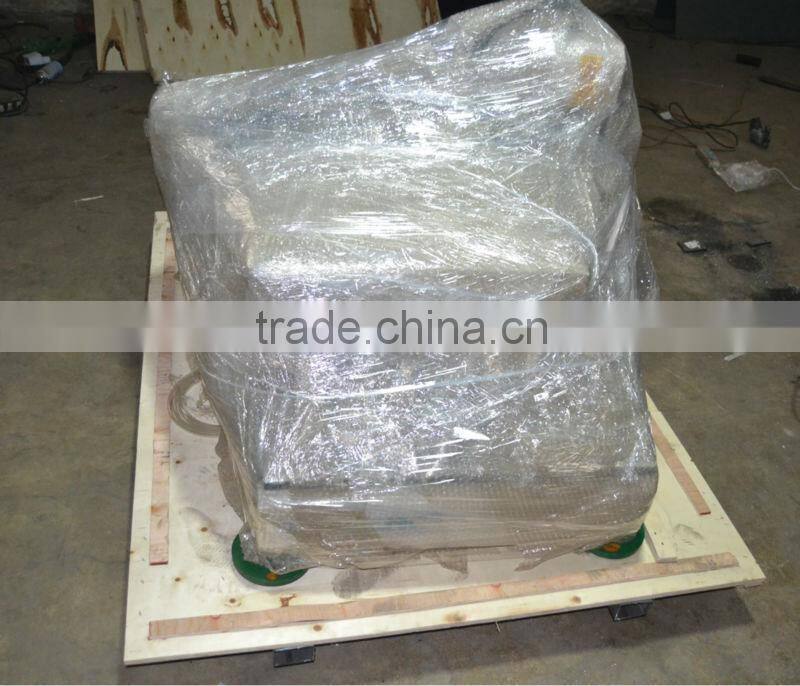

Packaging Parts
Why select SIGN CNC ?
1.We are professional manufacturer and have own factory
2.One year warranty for cnc router, if your machine parts have something wrong ,we will offer you the best and competitive price.
3.We have the professional engineers to teach you on line if you don not know how to operate it
4.After sale service ,we will try our best to solve your problems within 24 hours
FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course .but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
Payment Terms
Payment Terms |
T/T in advance, pay on Alibaba trade assurance |
Delivery Terms |
FOB Qingdao |
Payment Condition |
we can accept 50%payment,the other 50%shall be paid before shipping. |
Packing |
Wooden boxes or as your requirement |
Supply Capacity |
200Sets/Month |
