China 3 axis cnc router for wood
1.---Whole cast iron
2.---Z axis feeding height is 150mm

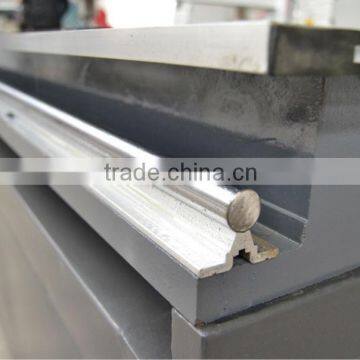

3.---Hiwin/TBI brand round guide rails and Ball screw
4.---T-slot can be process the different shape materials.
5.---2.2/3.0kw water cooling, Low noise high rotated speed (24000rpm).
6.---Continuing working after the break point/power failure, lower the rejection rate.
7.---NCtudio control system.
8.---Leadshine stepper motor and driver
9.---Using quality sensor switch, improve the machine working safty .
10.--Compatible with the Artcam / Type3 / Ucancam / JDPaint such CAD / CAM software, 2D/3D processing.

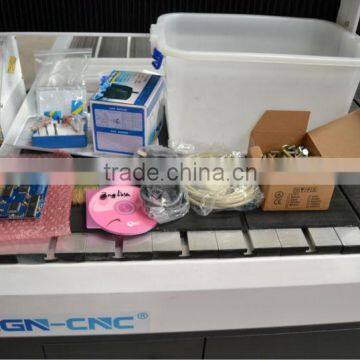

11.--Tool box for cnc router.
12.--CE certificate
13.--Dustproof for X and Z axis
Technical Parameters:
Model NO. |
SIGN-1318 Advertising CNC Router |
X Y Z Traveling Area |
1300mm*1800mm*150mm |
Table Structure |
Aluminum T-Slot |
X Y Z Transmission |
Ball Screws |
X Y Z Guide Rail |
Round Rail |
Spindle Power |
2.2KW |
Max. Spindle Speed |
24000 r/min |
Max. Traveling Speed |
7200 mm/min |
Max. Working Speed |
5000 mm/min |
Processing Accuracy |
±0.025mm |
Reposition Accuracy |
≤0.025mm |
Driving System |
Stepper Motor |
Command Language |
G Code |
Operation System |
NCstudio |
Working Voltage |
AC220V 50Hz |
Net Weight/Gross Weight |
800KGS |
Package Dimension |
2300mm*1800mm*1450 mm |
Applicable Industries:
Solid wave board process, door of cabinet,wooden door,artistic wooden door ,no-paint door, avoid wind, process of the artistic window, shoes cleaning machine, the cabinet of the playing machine and the board, mahjong table, computer table and the assistant process of the household effects
Advertising
Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry
It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
Other fields
It can engrave many image, embossment,It is widely used in artistic industry.

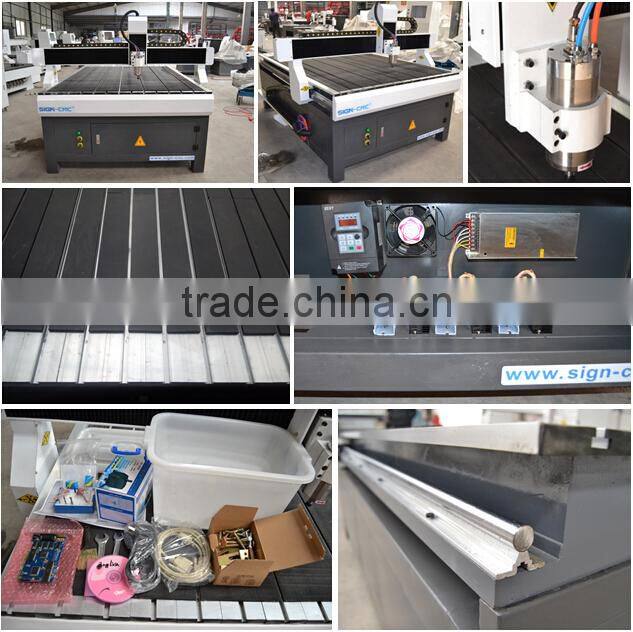

Sample show:
Packaging & Shipping
Optional Parts:
1. Taiwan HIWIN square rails for X Y Z axis
2. DSP operation system(can make machine work without connecting computer)
3. Other spindle power: 3.0KW available
After-sale service:
1 One year warranty for cnc router machine ,half year warranty for spindle.
Free offer you replacement if there is a failure in warranty period .
2, Exceed warranty period: if the cnc machine parts have any problems,
we can offer new machine parts with cost price and you also should pay all the shipping cost.
3, We offer 24 hours technical support by call, email
4, Our technician can give you remote guide online(Skype or MSN) if you have any question
5, We can record videos of operating the machine 3d cnc router
6.Machine will be adjusted before it is delivered , operation disk/CD was included.
Company Information
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
Cooperation with us:
FAQ
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: How can operate this machine first time?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
