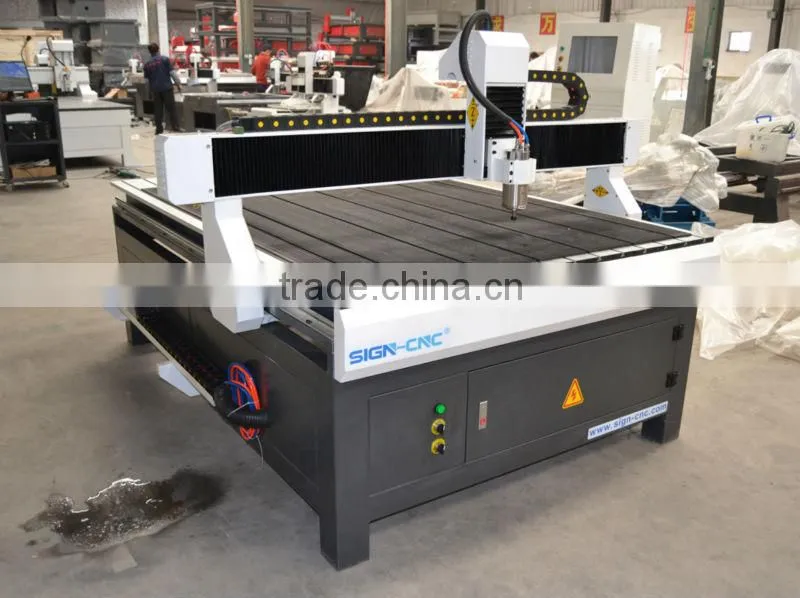

Hot sale china cnc router machine 1200 x 600 for cutting aluminum sign making
Machine Features:
1.SIGN 1218 is best choice for small piece, Medium size woodworking, because of the humanity design; it is very good for advertising working.
2. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.
4. High-performance driven motor to ensure that the machines high speed and accuracy
5. With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign making, wood artwork, all material for Sign making, even for wood working.
Application:
SIGNCNC1218 can be used for advertisement engraving and cutting, mold manufacturing, wood precessing,craft manufacturing,light box cutting,building model cutting, indoor decoration cutting, light equipment mold precessing, acrylic board precessing with high precision and high speed, and can work on stone.
Technical Parameter:
Model |
SIGN-1218 / SIGN-1212 |
X,Y Working Area: |
1200x1800mm / 1200*1200mm |
Table Size: |
1360*2340mm/1360×1740mm |
Z feed Height |
120mm (200mm / 300mm heighten Gantry optional) |
X,Y,Z repositioning Accuracy: |
±0.01mm |
Table Surface: |
T-slot (Option: Vacuum table) |
Frame: |
Steel tube structure |
X, Y Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption: |
(Without spindle) 1.8 Kw |
Max. Rapid Travel Rate: |
33000mm/min |
Max. Working Speed: |
25000mm/min |
Spindle Power: |
2.2 / 3.0 / 4.5 KW |
Spindle Speed: |
0-24000RPM |
Drive Motors: |
Stepper system |
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language: |
G code |
Operating System: |
Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution |
<0.01mm |
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
Running Environment Temperature: |
0 degree - 45 degree |
Relative Humidity: |
30% - 75% |
Guarantee |
One year |
|
Optional Parts |
Air cooling spindle or Water cooling spindle |
Dust collector | |
Vacuum Pump | |
Rotary system | |
Mist-cooling system | |
Yaskawa/ Panasonic Servo motors |

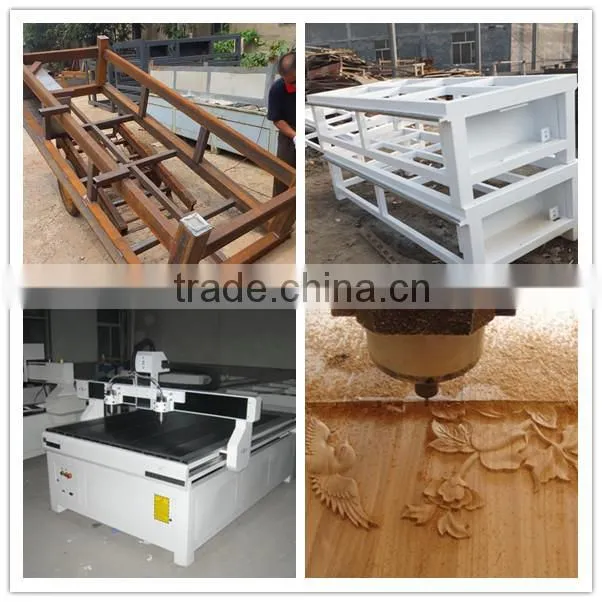

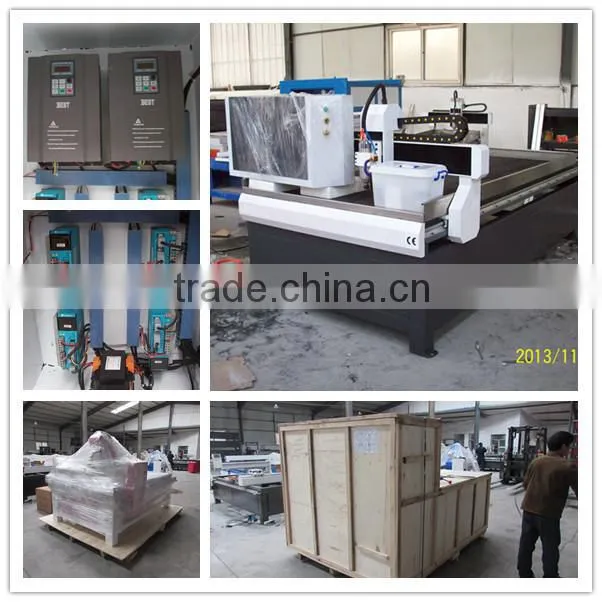

Machine parts:
Samples:
Packing:
Our service:
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
Company information:
We have do cnc machine business for 5 years and we'v obtained CE and BV certification. Our machine can be customized by your requirements, if you have any question please let me know, we'll our best to satisfied you with best price and reliable quality.
Please feel free to contac us for more information.
