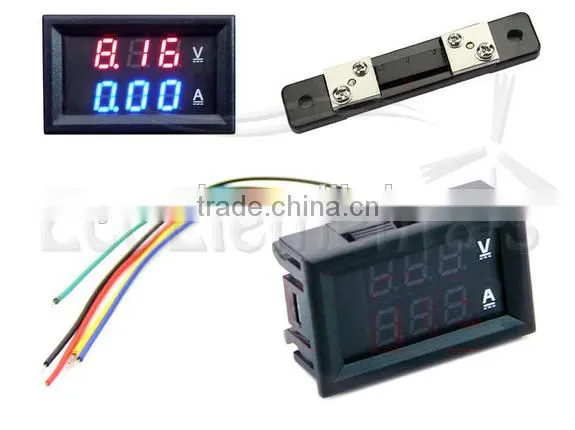

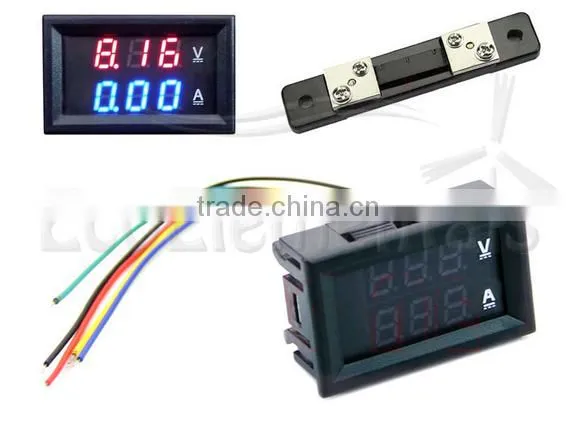

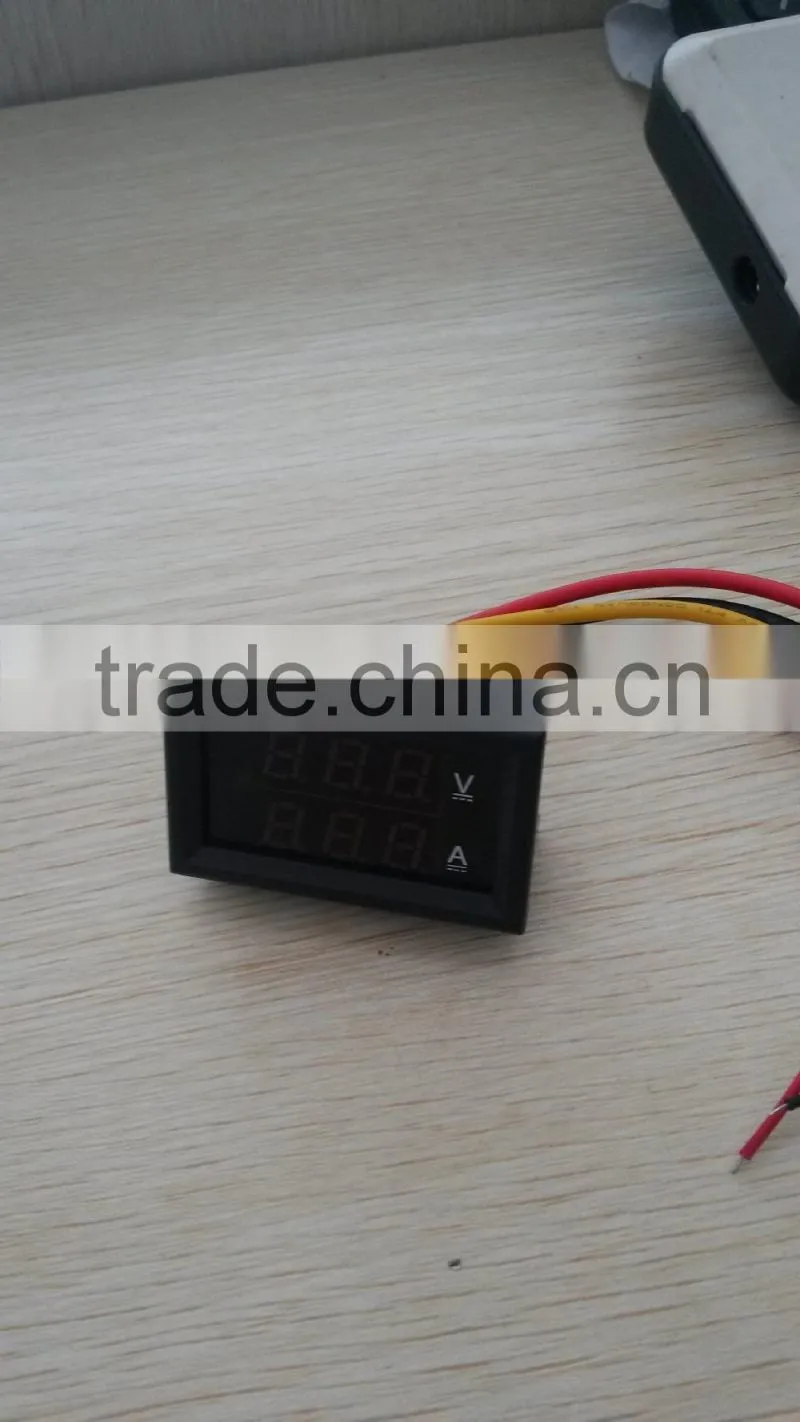

DC 100V 50A Digital VOLT AMP Meter Voltmeter Ammeter +CURRENT SHUNT Red/Blue LED

DC 100V 50A Digital VOLT AMP Meter Voltmeter Ammeter +CURRENT SHUNT Red/Blue LED

Specification:

1.Operating voltage: 4.5-30V

2.Accuracy:1%±1

3.LED size:0.28"

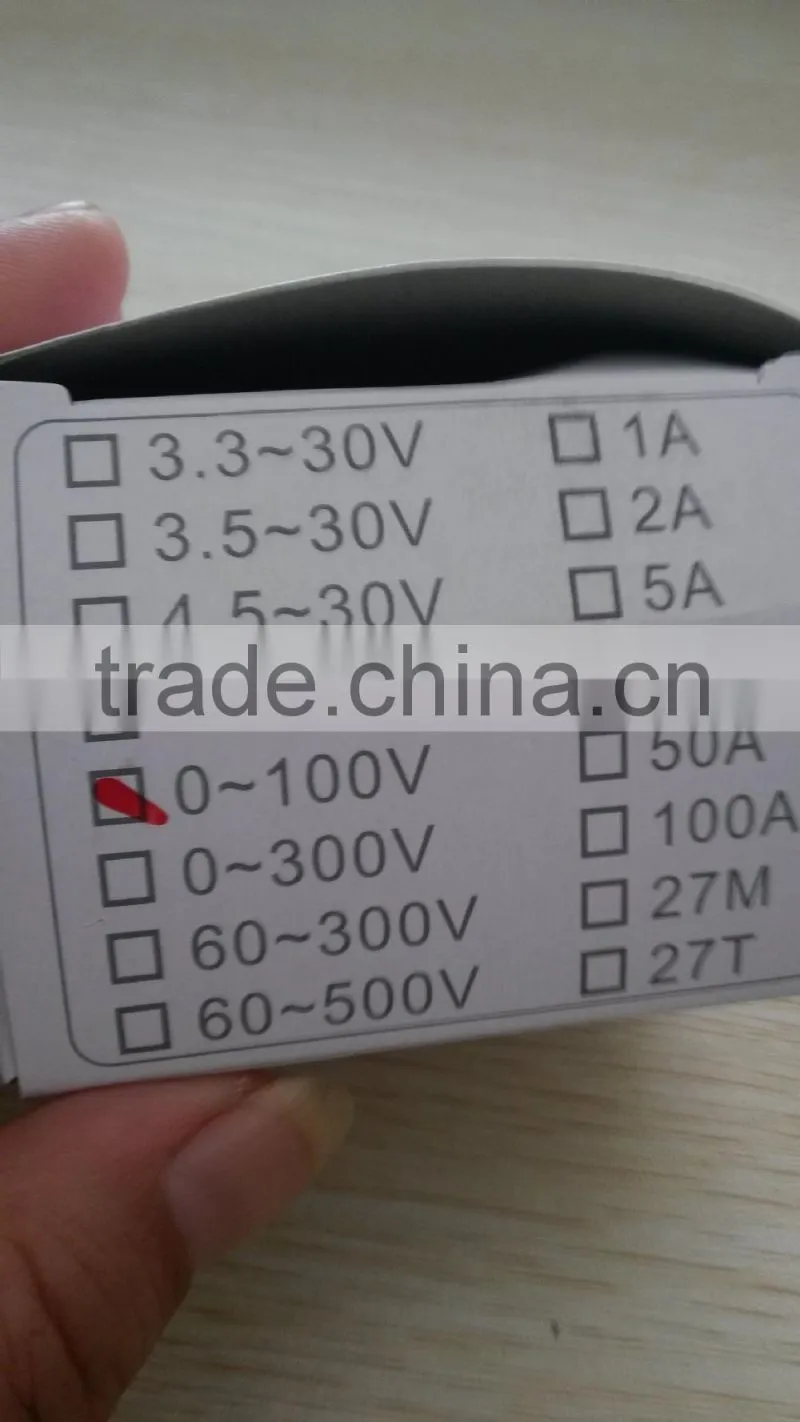

4.Range:DC voltage:DC0-100V(Decimal point move automatically)

              DC current: DC5A/10A /DC50A/100A/200A  (Under10A  shunt inner)

5. Power Consumption :<20mA

6.Measuring speed:about >500 times/per

7.Dimension:48*29*21mm

8.Panel cutout size:45.5*26.5mm

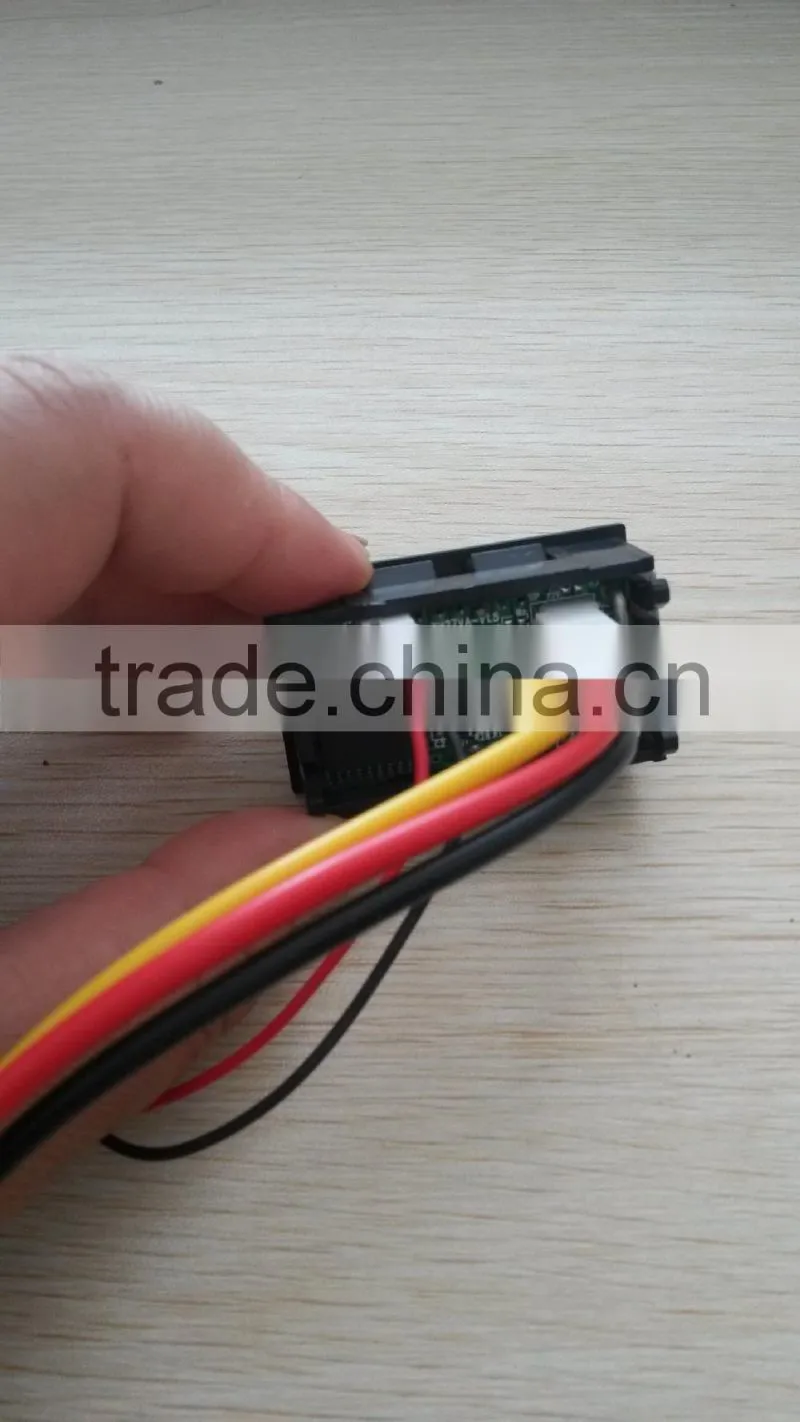

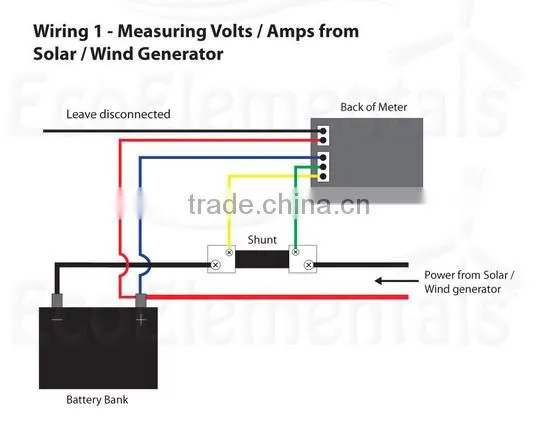

Wire connection:

Five wires:

Power supply:

Thin wires:   Red: Power+

                      Black: -

Signal terminal:

Three-Plug connector                                                                                                                           Com--Black

    PW+---Red

    In+------Yellow (Current input)

Digital dc voltage ammeter type is in the same instrument on the screen, respectively, at the same time show the dc voltage and dc current being measured.By measurement of dc voltage and dc current acoustic measurements within the instrument is completely isolated, the user can according to need in an external circuit adopts measure or other forms
