FG-B800-1200 Dry Laminating Machine Price

Name: FG-B800-1200 Dry Laminating Machine Price
Brand: Huana
SKU: 118442465
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel

Packaging Type:

Bags, Film, Foil

Ruian Huana Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo port Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel

Packaging Type Bags, Film, Foil

Packaging Material Plastic

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 220v 60hz

Power 44kw

Place of Origin Zhejiang, China

Brand Name Huana

Model Number FG-B

Dimension(L*W*H) 9600*2400*3300mm

Weight 7500KG

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Material: BOPP, PET, CPP,Aluminium foil. etc.
2. High output.
3. Durable quality.

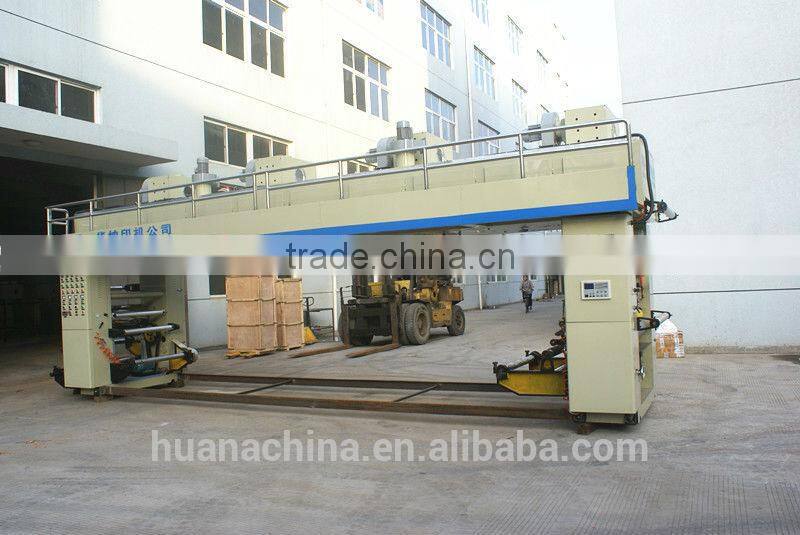

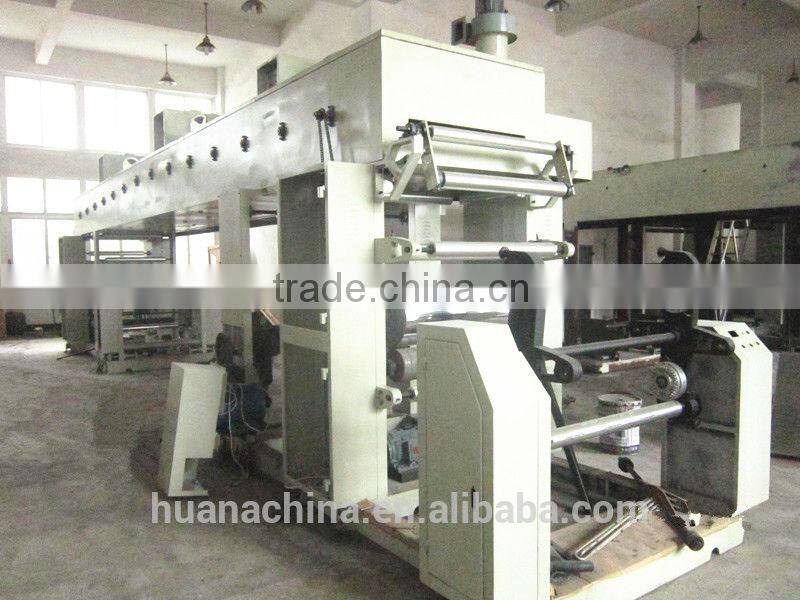

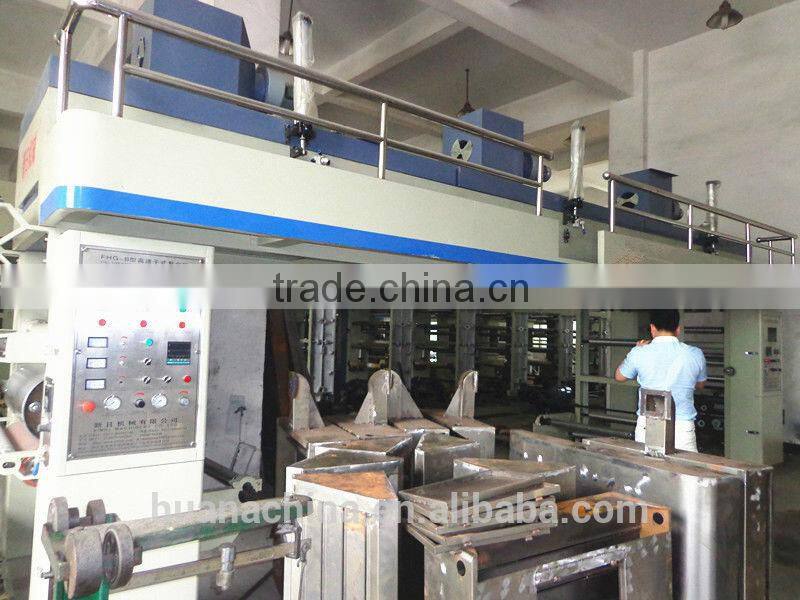

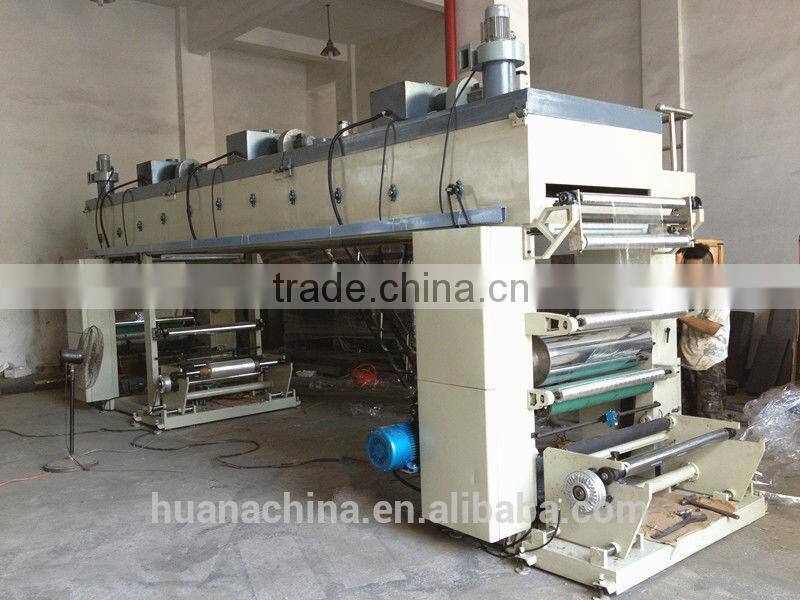

FG-B800-1200dry laminating machine price

Main features:

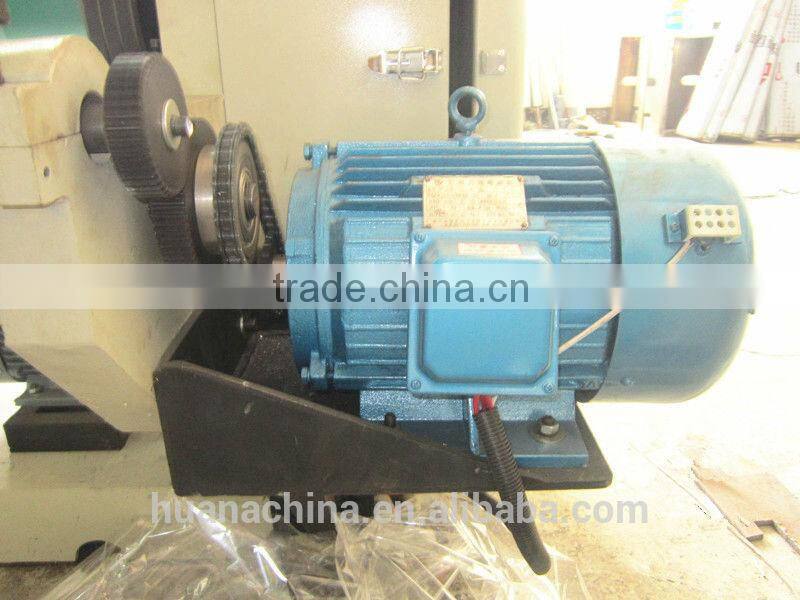

1-Lamination and coating adopts double inverter motors.

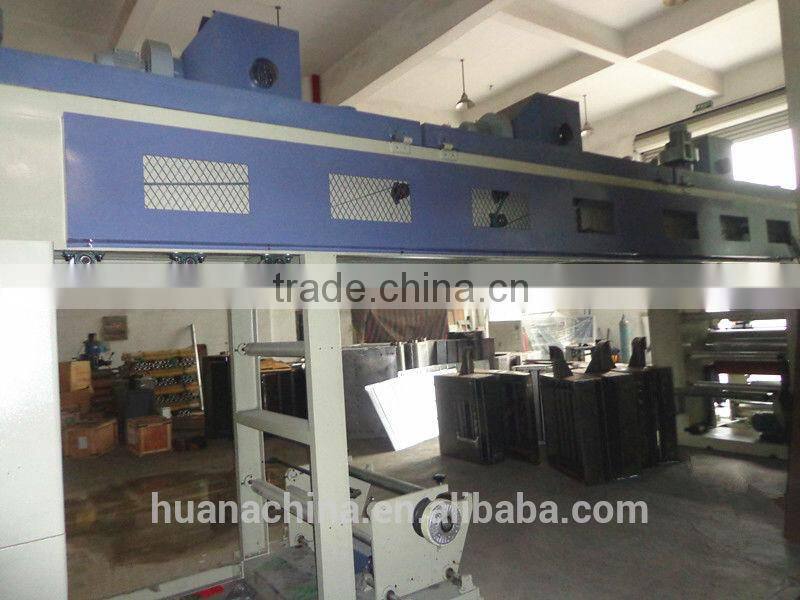

2-Dry box tension controlling adopt pressure sensor automatically adjusting.

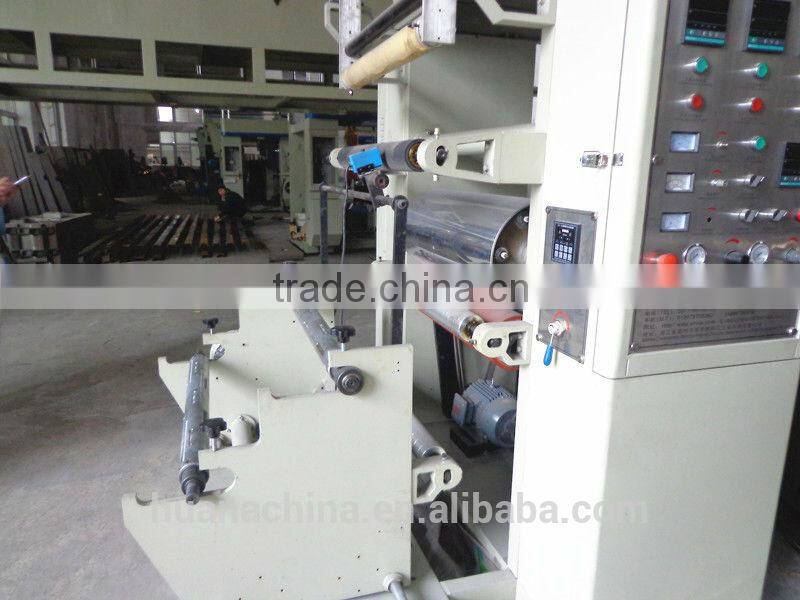

3-The first unwinding station adopts photoeyes EPC controlling system, the second unwinding station adopts two stations (double unwinder)

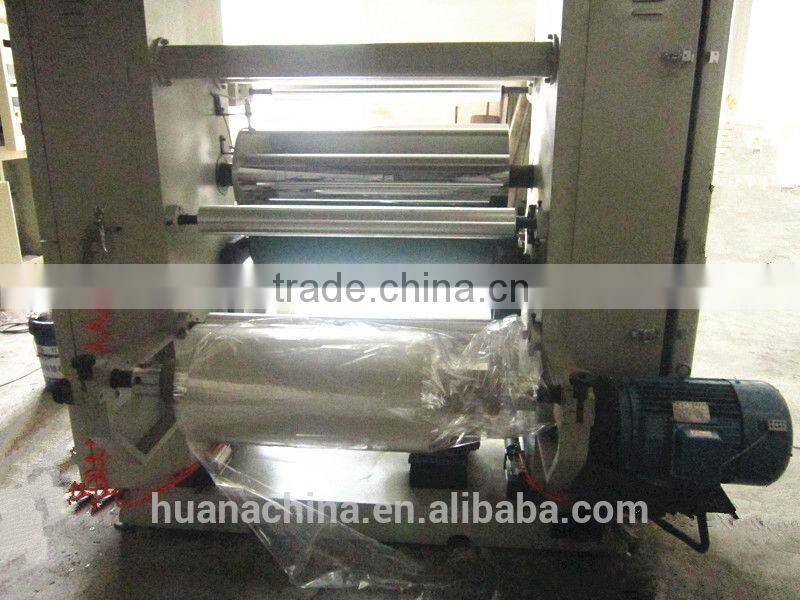

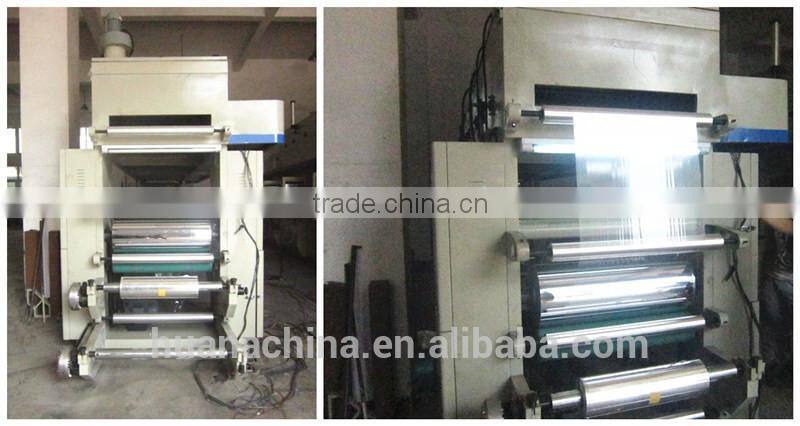

4-Lamination and coating adopts air-cylinder pressing.

5-Rewinding unit adopts moment motor(torque motor) to control the tension.

Main technical Parameter

Model	FG-C800	FG-C1000	FG-C1100	FG-C1200
Laminating Material	Plastic film, Paper, aluminium foil, compound film etc.
Laminating layer	2layers	2layers	2layers		2layers
Max.width of lamination	800mm	1000mm	1100mm		1200mm
Lamination speed	90-100m/min	90-100m/min	90-100m/min		90-100m/min
Max. rewinding/unwinding diameter	600mm	600mm	600mm		600mm
Dry box temperature available	100°C	100°C	100°C		100°C
Total Power	38KW	45KW	48KW		52KW
